Mazda RX-7 FC 1985-11 Mazda Cooling System

Mazda parts catalog

Parts > Mazda RX-7 > 1985-11 > Rotary-engine Supplement > Cooling System(turbo)

Search by part number:

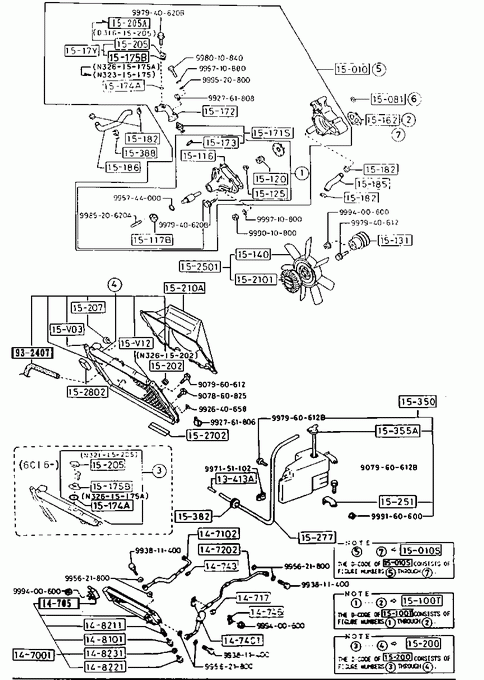

Cooling System(turbo)
» 13413A PIPE,CONNECTOR-F.M.

Part Number Qty. Specifications Price
D41013413 1 861216 -
FC1332102987- € 2,67

» 147001 COOLER,OIL

Part Number Qty. Specifications Price
N32614700A 1
€ 742,79

» 14705 RUBBER,INSULATION

Part Number Qty. Specifications Price
N32614705 2
€ 30,26

» 147102 HOSE,OIL

Part Number Qty. Specifications Price
N32614710B 1
€ 116,07

» 14717 CLIP,OIL HOSE

Part Number Qty. Specifications Price
N32614717B 1

» 147202 HOSE,OIL

Part Number Qty. Specifications Price
N32614720B 1
€ 179,99

» 147401 BRACKET,OIL HOSE

Part Number Qty. Specifications Price
N32614760B 1 A (N326-14-760C)

» 14743 PROTECTOR

Part Number Qty. Specifications Price
N32614736 1
€ 1,90

» 14746 PROTECTOR

Part Number Qty. Specifications Price
N32614737 1

» 148101 PELLET,THERMO

Part Number Qty. Specifications Price
887114810 1

» 148211 SPRING,PELLET

Part Number Qty. Specifications Price
175714821 1

» 148221 NUT,STOPPER

Part Number Qty. Specifications Price
175714822 1

» 148231 GASKET

Part Number Qty. Specifications Price
175714823 1
€ 2,02

» 15010 PUMP,WATER

Part Number Qty. Specifications Price
N34415010 1 - 861216
FC1332 -102987 € 188,92
N34415010A 1 A (8AF5-15-010)
861216 - 870601
FC1332102987-103552

» 15010S PUMP SET,WATER

Part Number Qty. Specifications Price
8AF515010 1 A (8AF5-15-010A)
870601 -
FC1332103552- € 188,92

» 15081 GASKET

Part Number Qty. Specifications Price
175715106 2 - 870201
FC1332 -103205 € 0,40
N32615168 2 870201 -
FC1332103205- € 1,33

» 15100T HOUSING SET,BRG WATER PUMP

Part Number Qty. Specifications Price
8AF115100A 1 A (8AF1-15-100B)
- 890401
€ 95,04

» 15116 GASKET,WATER PUMP

Part Number Qty. Specifications Price
N32615116 1 A (N326-15-116A)
- 880426
FC1332 -104221
N32615116A 1 ASBESTOS
880426 -
FC1332104221- € 10,10

» 15117B HUB,W.PUMP PULLEY

Part Number Qty. Specifications Price
N32615117A 1

» 15120 SEAL,WATER-PUMP

Part Number Qty. Specifications Price
B63015120 1
€ 17,58

» 15125 PLATE,WATER BAFFLE

Part Number Qty. Specifications Price
N30415125 1

» 15131 PULLEY,WATER PUMP

Part Number Qty. Specifications Price
N32615131A 1
€ 23,87

» 15140 FAN,COOLING

Part Number Qty. Specifications Price
N32615141 1
€ 68,79

» 15162 GASKET

Part Number Qty. Specifications Price
N32615162 1 A (N326-15-162A)
- 890101
FC1332 -104771 € 3,42
N32615162A 1 ASBESTOS
890101 -
FC1332104771- € 3,42

» 15171S THERMOSTAT SET

Part Number Qty. Specifications Price
8AF115171 1
€ 22,02

» 15172 COVER,THERMOSTAT

Part Number Qty. Specifications Price
N34415172 1
€ 40,09

» 15173 GASKET,THERMOSTAT COVER

Part Number Qty. Specifications Price
175715173 1 A (1757-15-173A)
€ 1,13

» 15174A RING

Part Number Qty. Specifications Price
N32615174 2
€ 3,18

» 15175B BODY,FILLER CAP

Part Number Qty. Specifications Price
N32315175 1 A (N3C1-15-175)
861216 -
FC1332102987- € 31,61
N32615175A 1 - 861216
FC1332 -102987 € 29,88

» 1517Y CAP,FILLER-WATER PUMP

Part Number Qty. Specifications Price
N3231517Y 1 861216 -
FC1332102987- € 26,70
N3261517YA 1 - 861216
FC1332 -102987 € 27,51

» 15182 CLAMP,WATER HOSE

Part Number Qty. Specifications Price
N32615182 4 AN (9WNCB-4100)
- 880501
FC1332 -104240 € 2,97

» 15185 HOSE,WATER

Part Number Qty. Specifications Price
N32615185A 1 C (N326-15-185B)
- 880916
FC1332 -104657 € 29,94
N32615185B 1 880916 -
FC1332104657- € 30,84

» 15186 HOSE,WATER

Part Number Qty. Specifications Price
N32615186A 1 C (N326-15-186B)
- 880916
FC1332 -104657 € 15,91
N32615186B 1 880916 -
FC1332104657- € 16,39

» 15200 RADIATOR

Part Number Qty. Specifications Price
N32315200B 1 CALSONIC
- 861216
FC1332 -102987 € 414,30
N32315200C 1 861216 -
FC1332102987- € 574,36

» 15202 RUBBER,MOUNT

Part Number Qty. Specifications Price
N32615202 4
€ 5,16
N33215202 2

» 15205 CAP,RADIATOR

Part Number Qty. Specifications Price
D31615205 1 CALSONIC
- 861216
FC1332 -102987 € 14,93
N32115205 1 CALSONIC
861216 -
FC1332102987- € 14,27

» 15205A CAP,WATER INLET-THERMO C.

Part Number Qty. Specifications Price
N32315205 1 CALSONIC
861216 -
FC1332102987- € 16,38

» 15207 COCK,DRAIN

Part Number Qty. Specifications Price
N32615203 2
€ 7,61

» 152101 FAN DRIVE

Part Number Qty. Specifications Price
N32615150 1
€ 266,86

» 15210A COWLING,RADIATOR

Part Number Qty. Specifications Price
N32615211B 1
€ 66,60

» 152501 FAN & FAN DRIVE

Part Number Qty. Specifications Price
N32615140 1
€ 390,76

» 15251 BRACKET,SUB TANK

Part Number Qty. Specifications Price
N33215370B 2

» 152702 SEAL(L),RADIATOR

Part Number Qty. Specifications Price
N32615441 1
€ 2,99

» 15277 HOSE,WATER SUB TANK

Part Number Qty. Specifications Price
N33215381A 1 - 861216
FC1332 -102987 € 8,86
N33215381B 1 861216 -
FC1332102987- € 9,04

» 152802 SEAL(R),RADIATOR

Part Number Qty. Specifications Price
N32615421 1
€ 3,02

» 15350 TANK,SUB-RADIATOR

Part Number Qty. Specifications Price
N33215350B 1 A (N332-15-350C)
€ 44,08

» 15355A CAP,SUB TANK

Part Number Qty. Specifications Price
N33215355 1
€ 11,37

» 15382 PROTECTOR,HOSE-SUB TANK

Part Number Qty. Specifications Price
N33215382 1
€ 3,43

» 15388 CLIP,HOSE

Part Number Qty. Specifications Price
N32715388 1 - 861216
FC1332 -102987

» 15V03 BRACKET(R),RADIATOR

Part Number Qty. Specifications Price
N32615V03 1
€ 39,85

» 15V12 BRACKET(L),RADIATOR

Part Number Qty. Specifications Price
N32615V12 1

» 90780 BOLT

Part Number Qty. Specifications Price
907960612 1
€ 2,61

» 90780 BOLT

Part Number Qty. Specifications Price
998010840 1

» 90786 SCREW & WASHER,TAPPING

Part Number Qty. Specifications Price
907860825 1
€ 2,61

» 90794 BOLT & WASHER,FLANGE

Part Number Qty. Specifications Price
907960612B 1
€ 1,73

» 90857 STUD

Part Number Qty. Specifications Price
998520620A 1

» 90901 NUT

Part Number Qty. Specifications Price
999010800 1
€ 2,31

» 90901 NUT

Part Number Qty. Specifications Price
999160600 1

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400600 1
€ 1,24

» 932407 HOSE,WATER

Part Number Qty. Specifications Price
9932407120 1

» 99203 WASHER,PLAIN

Part Number Qty. Specifications Price
999520800 1
€ 0,49

» 99263 RIVET

Part Number Qty. Specifications Price
992640658 1
€ 2,10

» 99274 CLIP

Part Number Qty. Specifications Price
992761806 1

» 99274 CLIP

Part Number Qty. Specifications Price
992761808 1

» 99369 BOLT,CONNECTOR

Part Number Qty. Specifications Price
993811400 1
€ 3,17

» 99560 GASKET

Part Number Qty. Specifications Price
995621800 1
€ 0,19

» 99571 RING,SNAP

Part Number Qty. Specifications Price
995744000 1
€ 1,15

» 99715 HOLDER

Part Number Qty. Specifications Price
997151102 1
€ 1,55

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997940612 1
€ 0,87

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997940620B 1
€ 3,14

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960612B 1
€ 0,37

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960620B 1
€ 0,75

» 99971 WASHER,SPRING

Part Number Qty. Specifications Price
999710800 1
€ 1,18

Part Number	Qty.	Specifications	Price
D41013413	1	861216 - FC1332102987-	€ 2,67

Part Number	Qty.	Specifications	Price
N34415010	1	- 861216 FC1332 -102987	€ 188,92
N34415010A	1	A (8AF5-15-010) 861216 - 870601 FC1332102987-103552

Part Number	Qty.	Specifications	Price
175715106	2	- 870201 FC1332 -103205	€ 0,40
N32615168	2	870201 - FC1332103205-	€ 1,33

Part Number	Qty.	Specifications	Price
N32615116	1	A (N326-15-116A) - 880426 FC1332 -104221
N32615116A	1	ASBESTOS 880426 - FC1332104221-	€ 10,10

Cooling System(turbo)
