Mazda RX-7 FC 1985-11 Mazda Cooling System

Mazda parts catalog

Parts > Mazda RX-7 > 1985-11 > Rotary-engine Supplement > Cooling System(w/o Turbo)

Search by part number:

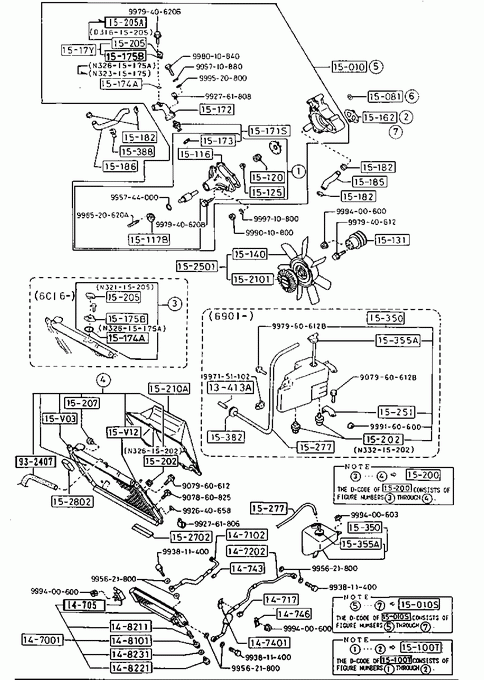

Cooling System(w/o Turbo)

PIPE,CONNECTOR-F.M.

Part Number	Qty.	Specifications	Price
D41013413	1	861216 - FC1322102982-	€ 2,67

» 147001

COOLER,OIL

Part Number	Qty.	Specifications	Price
N32614700A	1		€ 742,79

» 14705

RUBBER,INSULATION

Part Number	Qty.	Specifications	Price
N32614705	2		€ 30,26

» 147102

HOSE,OIL

Part Number	Qty.	Specifications	Price
N32614710A	1	A (N326-14-710B) - 860708 FC1322 -102661
N32614710B	1	860708 - FC1322102661-	€ 116,07

» 14717

CLIP,OIL HOSE

Part Number	Qty.	Specifications	Price
N32614717B	1

» 147202

HOSE,OIL

Part Number	Qty.	Specifications	Price
N32614720B	1		€ 179,99

» 147401

BRACKET,OIL HOSE

Part Number	Qty.	Specifications	Price
N32614760B	1	A (N326-14-760C)

» 14743

PROTECTOR

Part Number	Qty.	Specifications	Price
N32614736	1		€ 1,90

» 14746

PROTECTOR

Part Number	Qty.	Specifications	Price
N32614737	1

» 148101

PELLET,THERMO

Part Number	Qty.	Specifications	Price
887114810	1

» 148211

SPRING,PELLET

Part Number	Qty.	Specifications	Price
175714821	1

» 148221

NUT,STOPPER

Part Number	Qty.	Specifications	Price
175714822	1

» 148231

GASKET

Part Number	Qty.	Specifications	Price
175714823	1		€ 2,02

» 15010

PUMP,WATER

Part Number	Qty.	Specifications	Price
N32015010D	1	A (N320-15-010E) - 860401 FC1322 -102137
N32015010E	1	860401 - 861216 FC1322102137-102982	€ 188,92
N32015010F	1	A (8AFA-15-010) 861216 - 870601 FC1322102982-103557

» 15010S

PUMP SET,WATER

Part Number	Qty.	Specifications	Price
8AFA15010	1	A (8AFA-15-010A) 870601 - FC1322103557-	€ 258,90

» 15081

GASKET

Part Number	Qty.	Specifications	Price
175715106	2	- 870201 FC1322 -103210	€ 0,40
N32615168	2	870201 - FC1322103210-	€ 1,33

» 15100T

HOUSING SET,BRG WATER PUMP

Part Number	Qty.	Specifications	Price
8AF115100A	1	A (8AF1-15-100B) - 890101 FC1322 -104843	€ 95,04
8AF215100	1	890101 - FC1322104843-	€ 94,10

» 15116

GASKET,WATER PUMP

Part Number	Qty.	Specifications	Price
N32615116	1	A (N326-15-116A) - 880426 FC1322 -104226
N32615116A	1	ASBESTOS 880426 - FC1322104226-	€ 10,10

» 15117B

HUB,W.PUMP PULLEY

Part Number	Qty.	Specifications	Price
N32615117A	1

» 15120

SEAL,WATER-PUMP

Part Number	Qty.	Specifications	Price
B63015120	1		€ 17,58

» 15125

PLATE,WATER BAFFLE

Part Number	Qty.	Specifications	Price
N30415125	1

» 15131

PULLEY,WATER PUMP

Part Number	Qty.	Specifications	Price
N32615131A	1		€ 23,87

» 15140

FAN,COOLING

Part Number	Qty.	Specifications	Price
N32615141	1		€ 68,79

» 15162

GASKET

Part Number	Qty.	Specifications	Price
N32615162	1	A (N326-15-162A) - 890101 FC1322 -104843	€ 3,42
N32615162A	1	ASBESTOS 890101 - FC1322104843-	€ 3,42

» 15171S

THERMOSTAT SET

Part Number	Qty.	Specifications	Price
8AF115171	1		€ 22,02

» 15172

COVER,THERMOSTAT

Part Number	Qty.	Specifications	Price
N32615172B	1		€ 48,47

» 15173

GASKET,THERMOSTAT COVER

Part Number	Qty.	Specifications	Price
175715173	1	A (1757-15-173A)	€ 1,13

» 15174A

RING

Part Number	Qty.	Specifications	Price
N32615174	2		€ 3,18

» 15175B

BODY,FILLER CAP

Part Number	Qty.	Specifications	Price
N32315175	1	A (N3C1-15-175) 861216 - FC1322102982-	€ 31,61
N32615175A	1	- 861216 FC1322 -102982	€ 29,88

» 1517Y

CAP,FILLER-WATER PUMP

Part Number	Qty.	Specifications	Price
N3231517Y	1	861216 - FC1322102982-	€ 26,70
N3261517YA	1	- 861216 FC1322 -102982	€ 27,51

» 15182

CLAMP,WATER HOSE

Part Number	Qty.	Specifications	Price
N32615182	4	AN (9WNCB-4100) - 880501 FC1322 -104239	€ 2,97

» 15185

HOSE,WATER

Part Number	Qty.	Specifications	Price
N32615185A	1	C (N326-15-185B) - 880916 FC1322 -104659	€ 29,94
N32615185B	1	880916 - FC1322104659-	€ 30,84

» 15186

HOSE,WATER

Part Number	Qty.	Specifications	Price
N32615186A	1	C (N326-15-186B) - 880916 FC1322 -104659	€ 15,91
N32615186B	1	880916 - FC1322104659-	€ 16,39

» 15200

RADIATOR

Part Number	Qty.	Specifications	Price
N32315200A	1	CALSONIC - 860620 FC1322 -102625	€ 414,30
N32315200B	1	CALSONIC 860620 - 861216 FC1322102625-102982	€ 414,30
N32315200C	1	861216 - FC1322102982-	€ 574,36

» 15202

RUBBER,MOUNT

Part Number	Qty.	Specifications	Price
N32615202	4		€ 5,16
N33215202	2	860901 - FC1322102724-

» 15205

CAP,RADIATOR

Part Number	Qty.	Specifications	Price
D31615205	1	CALSONIC - 861216 FC1322 -102982	€ 14,93
N32115205	1	CALSONIC 861216 - FC1322102982-	€ 14,27

» 15205A

CAP,WATER INLET-THERMO C.

Part Number	Qty.	Specifications	Price
N32315205	1	CALSONIC 861216 - FC1322102982-	€ 16,38

» 15207

COCK,DRAIN

Part Number	Qty.	Specifications	Price
N32615203	2		€ 7,61

» 152101

FAN DRIVE

Part Number	Qty.	Specifications	Price
N32615150	1		€ 266,86

» 15210A

COWLING,RADIATOR

Part Number	Qty.	Specifications	Price
N32615211B	1		€ 66,60

» 152501

FAN & FAN DRIVE

Part Number	Qty.	Specifications	Price
N32615140	1		€ 390,76

» 15251

BRACKET,SUB TANK

Part Number	Qty.	Specifications	Price
N33215370B	2	860901 - FC1322102724-

» 152702

SEAL(L),RADIATOR

Part Number	Qty.	Specifications	Price
N32615441	1		€ 2,99

» 15277

HOSE,WATER SUB TANK

Part Number	Qty.	Specifications	Price
N32615381A	1	- 860901 FC1322 -102724	€ 10,95
N33215381A	1	860901 - 861216 FC1322102724-102982	€ 8,86
N33215381B	1	861216 - FC1322102982-	€ 9,04

» 152802

SEAL(R),RADIATOR

Part Number	Qty.	Specifications	Price
N32615421	1		€ 3,02

» 15350

TANK,SUB-RADIATOR

Part Number	Qty.	Specifications	Price
N32615350A	1	- 860901 FC1322 -102724	€ 33,23
N33215350B	1	A (N332-15-350C) 860901 - FC1322102724-	€ 44,08

» 15355A

CAP,SUB TANK

Part Number	Qty.	Specifications	Price
N32615355A	1	- 860901 FC1322 -102724	€ 10,72
N33215355	1	860901 - FC1322102724-	€ 11,37

» 15382

PROTECTOR,HOSE-SUB TANK

Part Number	Qty.	Specifications	Price
N33215382	1	860901 - FC1322102724-	€ 3,43

» 15388

CLIP,HOSE

Part Number	Qty.	Specifications	Price
N32715388	1

» 15V03

BRACKET(R),RADIATOR

Part Number	Qty.	Specifications	Price
N32615V03	1		€ 39,85

» 15V12

BRACKET(L),RADIATOR

Part Number	Qty.	Specifications	Price
N32615V12	1

» 90780

BOLT

Part Number	Qty.	Specifications	Price
907960612	1		€ 2,61

» 90780

BOLT

Part Number	Qty.	Specifications	Price
998010840	1

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860825	1		€ 2,61

» 90794

BOLT & WASHER,FLANGE

Part Number	Qty.	Specifications	Price
907960612B	1		€ 1,73

» 90857

STUD

Part Number	Qty.	Specifications	Price
998520620A	1

» 90901

NUT

Part Number	Qty.	Specifications	Price
999010800	1		€ 2,31

» 90901

NUT

Part Number	Qty.	Specifications	Price
999160600	1

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400600	1		€ 1,24

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400603	1		€ 2,05

» 932407

HOSE,WATER

Part Number	Qty.	Specifications	Price
9932407120	1

» 99203

WASHER,PLAIN

Part Number	Qty.	Specifications	Price
999520800	1		€ 0,49

» 99263

RIVET

Part Number	Qty.	Specifications	Price
992640658	1		€ 2,10

» 99274

CLIP

Part Number	Qty.	Specifications	Price
992761806	1

» 99274

CLIP

Part Number	Qty.	Specifications	Price
992761808	1

» 99369

BOLT,CONNECTOR

Part Number	Qty.	Specifications	Price
993811400	1		€ 3,17

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995621800	1		€ 0,19

» 99571

RING,SNAP

Part Number	Qty.	Specifications	Price
995744000	1		€ 1,15

» 99715

HOLDER

Part Number	Qty.	Specifications	Price
997151102	1		€ 1,55

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940612	1		€ 0,87

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940620B	1		€ 3,14

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960612B	1		€ 0,37

» 99971

WASHER,SPRING

Part Number	Qty.	Specifications	Price
999710800	1		€ 1,18

Cooling System(w/o Turbo)
