Mazda RX-7 FC 1985-11 Mazda Manual Transmission Gears

Mazda parts catalog

Parts > Mazda RX-7 > 1985-11 > Rotary-engine & Transmission > Manual Transmission Gears(w/o Turbo)

Search by part number:

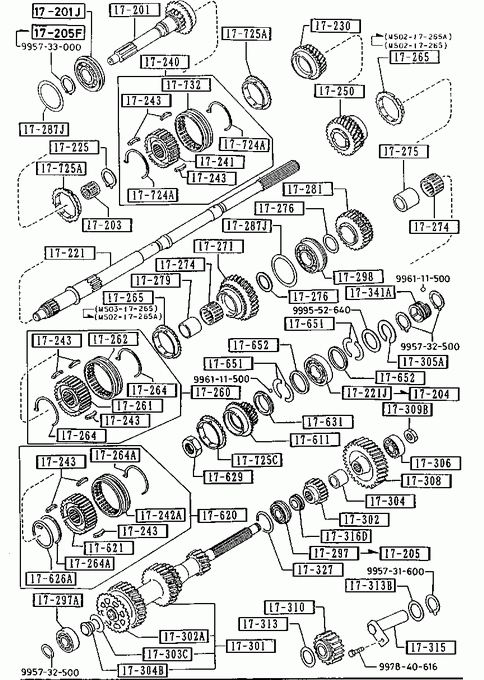

Manual Transmission Gears(w/o Turbo)

GEAR,MAIN DRIVE

Part Number	Qty.	Specifications	Price
M51517201	1	A (M515-17-201A) - 860201 FC1322 -101153	€ 206,10
M51517201A	1	860201 - FC1322101153-	€ 214,42

» 17201J

BEARING,BALL-MAIN DRIVE GEAR

Part Number	Qty.	Specifications	Price
M50217295A	1	- 870123 FC1322 -103147	€ 32,95
M50217295B	1	A (M502-17-295C) 870123 - 890301 FC1322103147-104948	€ 32,95
M50217295C	1	KOYO 890301 - FC1322104948-	€ 34,28

» 17203

BEARING,NEEDLE

Part Number	Qty.	Specifications	Price
M50117210	1	AN (M501-17-210A)	€ 9,89

» 17204

BEARING,BALL-MAIN SHAFT

Part Number	Qty.	Specifications	Price
M50317204	1	NSK 870123 - FC1322103147-	€ 28,61

» 17205

BEARING,ROLLER

Part Number	Qty.	Specifications	Price
R50117306	1	C (R502-17-306A) - 870701 FC1322 -103357
R50217306A	1	FUJIKOSHI 870701 - FC1322103357-	€ 68,66

» 17205F

RING,RETAINING

Part Number	Qty.	Specifications	Price
M50117205	1	890301 - FC1322104948-	€ 2,10

» 17221

SHAFT,MAIN

Part Number	Qty.	Specifications	Price
M50517221A	1	A (M505-17-221B)	€ 239,85

» 17221J

BEARING,BALL

Part Number	Qty.	Specifications	Price
9960663053	1	- 870123 FC1322 -103147	€ 30,08

» 17225

RING,SNAP

Part Number	Qty.	Specifications	Price
031717225	1		€ 2,16

» 17230

GEAR,3RD

Part Number	Qty.	Specifications	Price
M51017231A	1		€ 129,86

» 17240

HUB SET,CLUTCH-3RD & 4TH

Part Number	Qty.	Specifications	Price
M50217240A	1	- 871215 FC1322 -103798	€ 150,51
M50217240B	1	A (M502-17-240C) 871215 - FC1322103798-	€ 150,51

» 17241

HUB,CLUTCH

Part Number	Qty.	Specifications	Price
M50117241A	1	A (M501-17-241B) - 871215 FC1322 -103798	€ 83,80
M50117241B	1	AN (M501-17-241C) 871215 - FC1322103798-	€ 83,80

» 17242A

SLEEVE,CLUTCH HUB

Part Number	Qty.	Specifications	Price
F40117242A	1		€ 43,46

» 17243

KEY,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
F40117243A	9	AN (F401-17-243C)	€ 3,12

» 17250

GEAR,2ND

Part Number	Qty.	Specifications	Price
M50817251	1		€ 124,91

» 17260

HUB SET,CLUTCH-1ST & 2ND

Part Number	Qty.	Specifications	Price
M50517260A	1	A (M505-17-260B)	€ 170,87

» 17261

HUB,CLUTCH

Part Number	Qty.	Specifications	Price
M50217261	1		€ 86,32

» 17262

SLEEVE,CLUTCH HUB

Part Number	Qty.	Specifications	Price
M50317262	1	A (M503-17-262A)	€ 77,18

» 17264

SPRING,SYNCHRO. KEY

Part Number	Qty.	Specifications	Price
G40117264	2	A (G402-17-264)	€ 2,59

» 17264A

SPRING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
F40117264A	2	A (F402-17-264)	€ 2,70

» 17265

RING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
M50217265	1	A (M502-17-265A) - 860321 FC1322 -102099	€ 25,88
M50217265A	2	A (M502-17-265B) 860321 - FC1322102099-	€ 25,88
M50317265	1	A (M502-17-265A) - 860321 FC1322 -102099

» 17271

GEAR,1ST

Part Number	Qty.	Specifications	Price
M51017271	1		€ 147,66

» 17274

BEARING,NEEDLE

Part Number	Qty.	Specifications	Price
406917283A	2		€ 27,73

» 17275

RACE,INNER

Part Number	Qty.	Specifications	Price
406917284E	1		€ 35,57

» 17276

WASHER,THRUST

Part Number	Qty.	Specifications	Price
025917274A	2	T=3.0MM	€ 5,25
025917276	2	T=2.2MM	€ 5,08
025917277	2	T=2.7MM	€ 4,78
025917278	2	T=3.2MM	€ 4,78
025917279	2	T=3.7MM	€ 4,08

» 17279

SLEEVE,GEAR

Part Number	Qty.	Specifications	Price
854017275	1	AN (8540-17-275A) - 870301 FC1322 -103341
854017275A	1	870301 - FC1322103341-	€ 25,44

» 17281

GEAR,REVERSE

Part Number	Qty.	Specifications	Price
M50117281A	1	- 861124 FC1322 -102866	€ 115,20
M50117281B	1	861124 - FC1322102866-	€ 115,20

» 17287J

SHIM,ADJUST

Part Number	Qty.	Specifications	Price
999636310	2	T=0.1MM	€ 1,62
999636315	1	T=0.15MM	€ 1,84
999636330	2	T=0.3MM	€ 1,94

» 17297

BEARING,BALL-COUNTER SHAFT G.

Part Number	Qty.	Specifications	Price
M50317297	1	A (M503-17-297A) - 861001 FC1322 -102784	€ 68,66
M50317297A	1	861001 - 870123 FC1322102784-103147	€ 68,66

» 17297A

BEARING,BALL-COUNTER SHAFT G.

Part Number	Qty.	Specifications	Price
M50217297	1	- 870123 FC1322 -103147	€ 28,77
M50217297A	1	KOYO 870123 - FC1322103147-	€ 29,35

» 17298

BEARING

Part Number	Qty.	Specifications	Price
M50217298	1	- 870123 FC1322 -103147	€ 34,55
M50217298A	1	870123 - FC1322103147-	€ 34,55

» 17301

GEAR,COUNTER SHAFT

Part Number	Qty.	Specifications	Price
M51917300	1	A (M519-17-300A) - 860311 FC1322 -101990	€ 353,79
M51917300A	1	A (M519-17-300B) 860311 - FC1322101990-	€ 353,79

» 17302

GEAR,COUNTER REVERSE

Part Number	Qty.	Specifications	Price
808617302B	1	- 860318 FC1322 -102063
808617302C	1	860318 - FC1322102063-	€ 37,78
M50317302A	1	A (M503-17-302B) 870301 - FC1322103341-	€ 38,14

» 17302A

GEAR,FRICTION

Part Number	Qty.	Specifications	Price
M50217302B	1	A (M502-17-302C)	€ 23,78

» 17303C

SPRING,DIAGHRAM

Part Number	Qty.	Specifications	Price
M50117303	1		€ 4,53

» 17304

SPACER

Part Number	Qty.	Specifications	Price
808617304A	1	A (M504-17-304) - 870301 FC1322 -103341
M50417304	1	870301 - FC1322103341-	€ 5,14

» 17304B

SPACER

Part Number	Qty.	Specifications	Price
M50117304B	1		€ 9,37

» 17305A

RING,RETAINING-BALL BEARING

Part Number	Qty.	Specifications	Price
083917305B	1	A (0839-17-305C)	€ 2,78

» 17306

BEARING,BALL

Part Number	Qty.	Specifications	Price
M50217299	1	- 870123 FC1322 -103147	€ 21,65
M50217299A	1	AN (M502-17-299B) 870123 - FC1322103147-	€ 21,65

» 17308

GEAR,COUNTER-5TH

Part Number	Qty.	Specifications	Price
M50217308A	1	- 870301 FC1322 -103341	€ 124,42
M50817308	1	C (M508-17-308A) 870301 - 870901 FC1322103341-103626
M50817308A	1	870901 - FC1322103626-	€ 120,79

» 17309B

NUT,LOCK-COUNTER SHAFT BR

Part Number	Qty.	Specifications	Price
M50117309	1		€ 9,13

» 17310

GEAR,REVERSE IDLE

Part Number	Qty.	Specifications	Price
M50417310A	1	- 860403 FC1322 -102159
M50417310B	1	A (M504-17-310C) 860403 - FC1322102159-	€ 95,58

» 17313

WASHER,THRUST-REVERSE IDLE G.

Part Number	Qty.	Specifications	Price
406917313	1	AN (M501-17-313) - 880512 FC1322 -104254
M50117313	1	T=2.0MM 880512 - FC1322104254-	€ 3,21

» 17313B

WASHER,THRUST

Part Number	Qty.	Specifications	Price
407717314A	1	T=2.8MM	€ 4,84
407717315A	1	T=3.0MM	€ 5,02
407717316	1	T=2.6MM	€ 5,17

» 17315

SHAFT,REV. IDLE GEAR

Part Number	Qty.	Specifications	Price
808617140A	1		€ 10,36

» 17316D

SPACER

Part Number	Qty.	Specifications	Price
R50217316	1	870126 - FC1322103156-	€ 6,73

» 17327

SHIM,ADJUST-COUNTER SHAFT GEAR

Part Number	Qty.	Specifications	Price
030517327	2	T=0.1MM	€ 2,03
030517328	1	T=0.3MM	€ 2,43

» 17341A

GEAR,SPEEDO.DRIVE

Part Number	Qty.	Specifications	Price
128117341	1		€ 23,46

» 17341J

BALL,STEEL

Part Number	Qty.	Specifications	Price
996111500	1		€ 1,93

» 17611

GEAR,OVER TOP

Part Number	Qty.	Specifications	Price
M51017611	1	- 870301 FC1322 -103341	€ 174,99
M51417611	1	C (M514-17-611A) 870301 - 870901 FC1322103341-103626	€ 173,28
M51417611A	1	870901 - FC1322103626-	€ 180,29

» 17620

HUB,CLUTCH-5TH & REV.

Part Number	Qty.	Specifications	Price
M50217620A	1		€ 117,92

» 17621

HUB,CLUTCH

Part Number	Qty.	Specifications	Price
M50117621	1	AN (M510-17-261)

» 17626A

RING,RETAINING-CLUTCH HUB

Part Number	Qty.	Specifications	Price
364817626	1		€ 2,61

» 17629

NUT,LOCK-CLUTCH HUB

Part Number	Qty.	Specifications	Price
860117629	1		€ 18,58

» 17631

WASHER,THRUST LOCK-OVER TOP G.

Part Number	Qty.	Specifications	Price
088417632B	1	T=6.2MM	€ 9,28
088417633B	1	T=6.4MM	€ 8,35
088417634B	1	T=6.5MM	€ 8,35
088417635B	1	T=6.6MM	€ 9,64

» 17651

WASHER,THRUST

Part Number	Qty.	Specifications	Price
M50117651	4	T=3.0MM	€ 7,06
M50117653	2	T=3.1MM	€ 6,78
M50117654	2	T=3.2MM	€ 7,06
M50117655	2	T=2.9MM	€ 7,06

» 17652

WASHER,THRUST LOCK

Part Number	Qty.	Specifications	Price
M50117652	2	T=2.0MM	€ 1,83

» 17724A

SPRING,SYNCHRO.KEY

Part Number	Qty.	Specifications	Price
W50117724	2		€ 2,28

» 17725A

RING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
W50117725A	2	AN (W501-17-725B)	€ 24,10

» 17725C

RING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
V50117725	1		€ 18,74

» 17732

SLEEVE,CLUTCH HUB

Part Number	Qty.	Specifications	Price
W50117732	1	A (W501-17-732A) - 871215 FC1322 -103798
W50117732A	1	A (W501-17-732B) 871215 - FC1322103798-

» 99570

RING,RETAINING

Part Number	Qty.	Specifications	Price
995731600	1		€ 2,10

» 99571

RING,SNAP

Part Number	Qty.	Specifications	Price
995732500	1		€ 2,20

» 99571

RING,SNAP

Part Number	Qty.	Specifications	Price
995733000	1		€ 1,76

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997840616	1		€ 1,50

» 99955

WASHER,ADJUST

Part Number	Qty.	Specifications	Price
999552640	1		€ 3,45

Manual Transmission Gears(w/o Turbo)
