Mazda RX-7 FC 1985-11 Mazda Oil Pan, Front & Rear Housing

Mazda parts catalog

Parts > Mazda RX-7 > 1985-11 > Rotary-engine & Transmission > Oil Pan, Front & Rear Housing(turbo)

Search by part number:

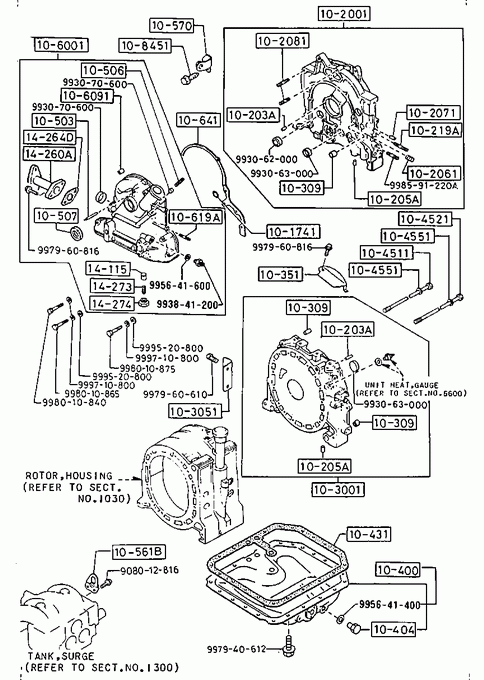

Oil Pan, Front & Rear Housing(turbo)

RING,'O'

Part Number	Qty.	Specifications	Price
N23110174	1		€ 2,21

» 102001

HOUSING,FRONT

Part Number	Qty.	Specifications	Price
N31810C00B	1	A (N318-10-C00C) - 881001 FC1332 -104692
N31810C00C	1	A (N318-10-C00D) 881001 - FC1332104692-	€ 482,39

» 10203A

PIN,DOWEL

Part Number	Qty.	Specifications	Price
083910203	2		€ 1,76

» 10205A

PLUG,BLIND

Part Number	Qty.	Specifications	Price
856210205	3		€ 2,93

» 102061

PLUG,BLIND

Part Number	Qty.	Specifications	Price
175710206A	1		€ 3,30

» 102071

PLUG,BLIND

Part Number	Qty.	Specifications	Price
175710207A	1		€ 3,37

» 102081

STUD

Part Number	Qty.	Specifications	Price
175710208	4

» 10219A

STUD,HOUSING

Part Number	Qty.	Specifications	Price
N24910219	1		€ 2,56

» 103001

HOUSING,REAR

Part Number	Qty.	Specifications	Price
N31810C50A	1	AN (N318-10-C50B) - 880825 FC1332 -104594
N31810C50B	1	A (N318-10-C50C) 880825 - FC1332104594-

» 103051

COVER,DUST

Part Number	Qty.	Specifications	Price
N22510305	1		€ 3,61

» 10309

PIN,TUBULAR

Part Number	Qty.	Specifications	Price
175710309	4	SIGMA	€ 2,14

» 10351

COVER,DUST

Part Number	Qty.	Specifications	Price
N30410351	1

» 10400

PAN,OIL

Part Number	Qty.	Specifications	Price
N32610400D	1	A (N326-10-400E) FOR SUBZERO SYSTEM COLD AREA - 870401 FC1332 -103391
N32610400E	1	FOR SUBZERO SYSTEM COLD AREA 870401 - FC1332103391-
N32810400D	1	A (N328-10-400E) W/O SUBZERO SYSTEM EXC.COLD - 870401 FC1332 -103391
N32810400E	1	W/O SUBZERO SYSTEM EXC.COLD 870401 - FC1332103391-	€ 82,54

» 10404

PLUG,DRAIN

Part Number	Qty.	Specifications	Price
995111400	1		€ 1,39

» 10431

GASKET,OIL PAN

Part Number	Qty.	Specifications	Price
N3Y610427	1	ASBESTOS	€ 24,93

» 104511

BOLT,TENSION

Part Number	Qty.	Specifications	Price
N32610E51	17	A (1757-10-451B)	€ 12,97

» 104521

BOLT,TENSION

Part Number	Qty.	Specifications	Price
N32610E52	1	A (1757-10-452A)	€ 15,53

» 104551

WASHER,SEAL

Part Number	Qty.	Specifications	Price
083910455	18		€ 1,18

» 10503

PIN,TOP INDICATOR

Part Number	Qty.	Specifications	Price
887110631	1	A (8871-10-631A) - 880902 FC1332 -104624
887110631A	1	880902 - FC1332104624-

» 10506

STUD,FRONT COVER

Part Number	Qty.	Specifications	Price
N32610506	1

» 10507

SEAL,OIL

Part Number	Qty.	Specifications	Price
082010605	1		€ 4,17

» 10561B

HANGER,ENGINE-REAR

Part Number	Qty.	Specifications	Price
N31810566A	1

» 10570

BRACKET,HANGER-ENGINE

Part Number	Qty.	Specifications	Price
N31810570	1	A (N318-10-570A) - 881001 FC1332 -104692
N31810570A	1	C (N318-10-570B) 881001 - FC1332104692-	€ 6,85

» 106001

COVER,FRONT

Part Number	Qty.	Specifications	Price
N31810500B	1

» 106091

PIN,SPRING

Part Number	Qty.	Specifications	Price
175710609	1

» 10619A

STUD,COVER

Part Number	Qty.	Specifications	Price
N24910619	2

» 10641

GASKET,FRONT COVER

Part Number	Qty.	Specifications	Price
852710641	1	A (N2Y0-10-502) - 881001 FC1332 -104692	€ 27,55
N32610502	1	AN (N326-10-502A) 881001 - 881201 FC1332104692-104758
N32610502A	1	ASBESTOS 881201 - FC1332104758-	€ 12,48

» 108451

BOLT

Part Number	Qty.	Specifications	Price
N31810908	1

» 14115

PLUNGER,CONTROL

Part Number	Qty.	Specifications	Price
083914115	1	HIROSHIMA SEIMITU	€ 5,24

» 14260A

PIPE,OIL OUTLET-F.COVER

Part Number	Qty.	Specifications	Price
N31814260	1

» 14264D

GASKET,OIL OUTLET PIPE

Part Number	Qty.	Specifications	Price
N31814264	1	ASBESTOS	€ 2,02

» 14273

SPRING

Part Number	Qty.	Specifications	Price
083914273A	1		€ 4,15

» 14274

PLUG

Part Number	Qty.	Specifications	Price
083914274	1		€ 5,91

» 90780

BOLT

Part Number	Qty.	Specifications	Price
998010840	1

» 90780

BOLT

Part Number	Qty.	Specifications	Price
998010865	1

» 90780

BOLT

Part Number	Qty.	Specifications	Price
998010875	1

» 90781

BOLT & WASHER

Part Number	Qty.	Specifications	Price
908012816	1		€ 0,89

» 90857

STUD

Part Number	Qty.	Specifications	Price
998591220A	1

» 99203

WASHER,PLAIN

Part Number	Qty.	Specifications	Price
999520800	1		€ 0,49

» 99306

CAP,SEALING

Part Number	Qty.	Specifications	Price
993062000	1		€ 1,33

» 99306

CAP,SEALING

Part Number	Qty.	Specifications	Price
993063000	1		€ 1,90

» 99307

PLUG,BLIND

Part Number	Qty.	Specifications	Price
993070600	1		€ 1,35

» 99384

JOINT,UNION

Part Number	Qty.	Specifications	Price
993841200	1

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995641400	1		€ 1,19

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995641600	1		€ 0,82

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940612	1		€ 0,87

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960610	1		€ 0,69

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960816	1		€ 1,92

» 99971

WASHER,SPRING

Part Number	Qty.	Specifications	Price
999710800	1		€ 1,18

Oil Pan, Front & Rear Housing(turbo)
