Mazda Mazda BT-50 UN 2006-08 Mazda Rear Combination Lamps 01/03 02/03 (FOR W/O BOX+W/RR FOG LAMP)(4X2) 03/03 (FOR W/O BOX+W/RR FOG LAMP)(4X4)

Mazda parts catalog

Parts > Mazda BT-50 > 2006-08 > Body Electronics > Rear Combination Lamps

Search by part number:

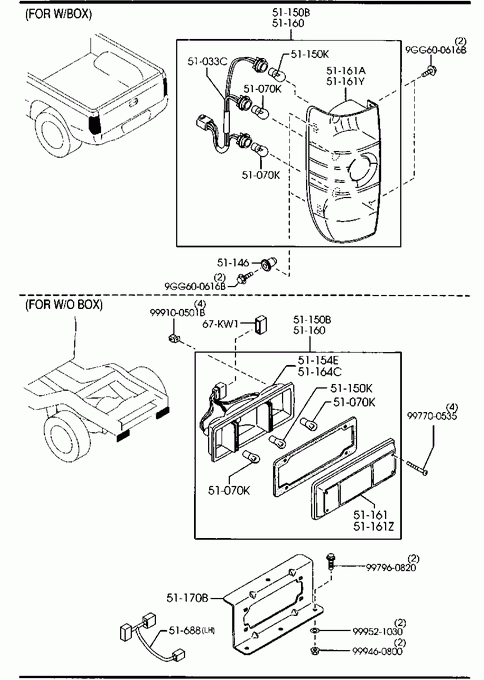

Rear Combination Lamps

01/03
02/03 (FOR W/O BOX+W/RR FOG LAMP)(4X2)
03/03 (FOR W/O BOX+W/RR FOG LAMP)(4X4)

SOCKET

Part Number	Qty.	Specifications	Price
UR5651155	2	AN (UR56-51-155A) (FOR W/BOX>W/O RR.FOG LAMP) - 061201 UN -621822
UR5651155A	2	FOR LEFT SIDE (FOR W/BOX>W/O RR.FOG LAMP) 061201 - UN621822-
UR8251155	1	AN (UR82-51-155A) FOR LEFT SIDE (FOR W/BOX>W/RR FOG LAMP) - 061201 UN -621822
UR8251155A	1	FOR LEFT SIDE (FOR W/BOX>W/RR FOG LAMP) 061201 - UN621822-

» 51070K

BULB

Part Number	Qty.	Specifications	Price
997013210	5	12V 21W FOR W/O BOX	€ 0,54

» 51146

GROMMET,SCREW-R.COMB

Part Number	Qty.	Specifications	Price
GJ6A5114Y	4	FOR W/BOX - 070501 UN -641732	€ 6,51
UR565114Y	4	FOR W/BOX 070501 - UN641732-

» 51150B

LAMP(R),RR COMB.

Part Number	Qty.	Specifications	Price
UR5651150C	1	AN (UR56-51-150D) FOR W/BOX - 061201 UN -621822	€ 62,70
UR5651150D	1	AN (UR56-51-150E) FOR W/BOX 061201 - 071105 UN621822-
UR5651150E	1	FOR W/BOX 071105 -
UR8051150	1	FOR W/O BOX

» 51150K

BULB

Part Number	Qty.	Specifications	Price
997014215	2	12V 21/5W	€ 0,79

» 51154E

HOUSING(R),REAR COMB.

Part Number	Qty.	Specifications	Price
UR8051154	1	FOR W/O BOX

» 51160

LAMP(L),RR COMB.

Part Number	Qty.	Specifications	Price
UR5651160C	1	AN (UR56-51-160D) (FOR W/BOX>W/O RR.FOG LAMP) - 061201 UN -621822	€ 62,70
UR5651160D	1	AN (UR56-51-160E) (FOR W/BOX>W/O RR.FOG LAMP) 061201 - 071105 UN621822-
UR5651160E	1	(FOR W/BOX>W/O RR.FOG LAMP) 071105 -
UR8051160	1	FOR W/O BOX
UR8251160B	1	AN (UR82-51-160C) (FOR W/BOX>W/RR FOG LAMP) - 061201 UN -621822	€ 70,82
UR8251160C	1	AN (UR82-51-160D) (FOR W/BOX>W/RR FOG LAMP) 061201 - 071105 UN621822-	€ 68,85
UR8251160D	1	(FOR W/BOX>W/RR FOG LAMP) 071105 -

» 51161

LENS(R),RR.COMB.

Part Number	Qty.	Specifications	Price
UM485115X	1	FOR W/O BOX

» 51161A

LENS & BODY(R),RR COMB.

Part Number	Qty.	Specifications	Price
UR5651170B	1	AN (UR56-51-170C) FOR W/BOX - 071105	€ 43,30
UR5651170C	1	FOR W/BOX 071105 -

» 51161Y

LENS & BODY(L),RR COMB.

Part Number	Qty.	Specifications	Price
UR5651180B	1	AN (UR56-51-180C) (FOR W/BOX>W/O RR.FOG LAMP) - 071105
UR5651180C	1	(FOR W/BOX>W/O RR.FOG LAMP) 071105 -
UR8251180A	1	AN (UR82-51-180B) (FOR W/BOX>W/RR FOG LAMP) - 071105	€ 53,34
UR8251180B	1	(FOR W/BOX>W/RR FOG LAMP) 071105 -

» 51161Z

LENS(L),RR.COMB.

Part Number	Qty.	Specifications	Price
UM485116X	1	FOR W/O BOX

» 51164C

HOUSING(L),REAR COMB.

Part Number	Qty.	Specifications	Price
UR8051164	1	FOR W/O BOX

» 51170B

BRACKET,REAR COMB.

Part Number	Qty.	Specifications	Price
UH7651172B	2	FOR W/O BOX

» 51688

CORD,FRONT FOG LAMP

Part Number	Qty.	Specifications	Price
UR8051688	1	(FOR W/O BOX>W/RR FOG LAMP)

» 67KW1

CAP,CONNECTOR-REAR HARNESS

Part Number	Qty.	Specifications	Price
UH7067KW1	2	FOR W/O BOX

» 90720

SCREW

Part Number	Qty.	Specifications	Price
997700535	1		€ 1,40

» 90901

NUT

Part Number	Qty.	Specifications	Price
999460800	1		€ 2,54

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
9GG600616B	1		€ 0,81

» 99203

WASHER,PLAIN

Part Number	Qty.	Specifications	Price
999521030	1		€ 0,69

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960820	1		€ 1,22

» 99910

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
999100501B	1		€ 1,15
