Brake Pipings 01/02 02/02

Brake Pipings |

Mazda parts catalog

Parts > Mazda BT-50 > 2006-08 > Chassis Piping & Fuel Tank > Brake Pipings

Search by part number:

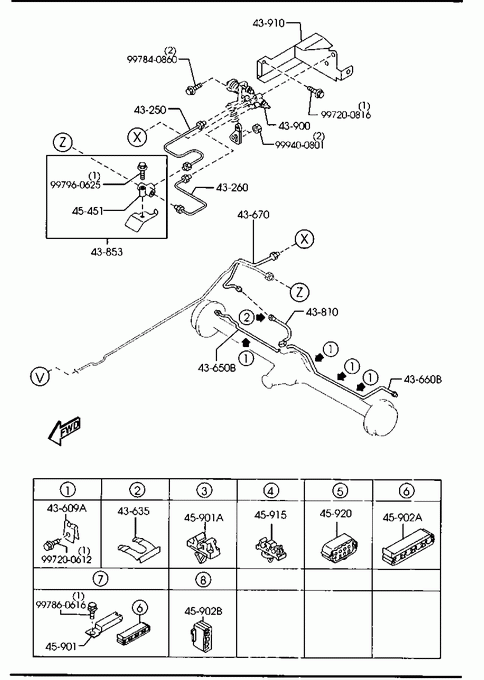

Brake Pipings(w/antilock Brake)

01/02
02/02

PIPE NO.1,BRAKE-A.B.

Part Number	Qty.	Specifications	Price
UR5643250A	1

» 43260

PIPE NO.2,BRAKE-A.B.

Part Number	Qty.	Specifications	Price
UR5643260A	1

» 43609A

PROTECTOR,BRAKE PIPE

Part Number	Qty.	Specifications	Price
UC8643609	4	HIROSHIMA SEIKEN - 070101 UN -624782	€ 1,39
UC8643609A	4	HIROSHIMA SEIKEN 070101 - UN624782-

» 43635

CLIP,FLEXIBLE HOSE

Part Number	Qty.	Specifications	Price
UH7143635	7

» 43650B

PIPE(R),BRAKE-REAR

Part Number	Qty.	Specifications	Price
UR5843650	1	4X2
UR6143650	1	4X4

» 43660B

PIPE(L),BRAKE-REAR

Part Number	Qty.	Specifications	Price
UR5843660	1	4X2
UR6143660	1	4X4

» 43670

PIPE,BRAKE-REAR

Part Number	Qty.	Specifications	Price
UH7143670	1		€ 2,38

» 43810

HOSE,FLEXIBLE

Part Number	Qty.	Specifications	Price
UH7143810	1	4X2
UH7443810	1	4X4	€ 21,12

» 43853

JOINT,PIPE

Part Number	Qty.	Specifications	Price
UR564385X	1

» 43900

VALVE,DUAL PROPORTIONING

Part Number	Qty.	Specifications	Price
UM4643900A	1	AN (UM46-43-900B) 4X2 - 061201 UN -621822
UM4643900B	1	4X2 061201 - UN621822-
UM5143900A	1	AN (UM51-43-900B) 4X4 - 061201 UN -621822	€ 197,63
UM5143900B	1	4X4 061201 - UN621822-	€ 274,64

» 43910

BRACKET,L.S.G.V

Part Number	Qty.	Specifications	Price
UH7243910	1

» 45451

JOINT-PIPE

Part Number	Qty.	Specifications	Price
UM8145451	1

» 45901

CLIP,PIPE

Part Number	Qty.	Specifications	Price
UM8345901	1

» 45901A

CLIP,PIPE

Part Number	Qty.	Specifications	Price
UB3945901	2		€ 1,66

» 45902A

CLIP

Part Number	Qty.	Specifications	Price
W33545902	2

» 45902B

CLIP

Part Number	Qty.	Specifications	Price
W41245902	1

» 45915

CLIP,PIPE

Part Number	Qty.	Specifications	Price
UB3945916	1		€ 2,10

» 45920

BRACKET

Part Number	Qty.	Specifications	Price
NA2045920B	4	- 061201 UN -621822	€ 5,59
UR5845920	4	061201 - UN621822-

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997200612	1		€ 1,53

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997200816	1		€ 1,22

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997840860	1		€ 2,65

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400801	1		€ 1,64

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860616	1		€ 1,54

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960625	1		€ 1,17

Brake Pipings(w/antilock Brake)
