Main Frame & Under Cover |
- Parts > Mazda BT-50 > 2006-08 > Chassis Piping & Fuel Tank > Main Frame & Under Cover
- Search by part number:
-

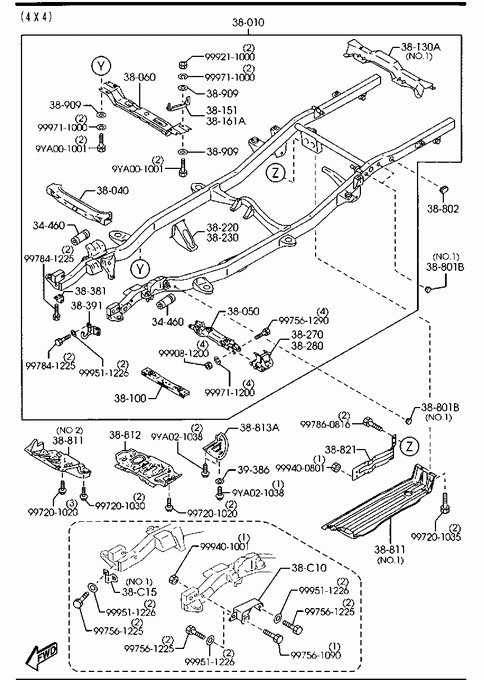

Main Frame & Under Cover(cab Plus)
-
» 34460 BUSH,RUBBER-LWR ARM Part Number Qty. Specifications Price UR6134460 2 4X4 € 16,76 » 38010 FRAME,MAIN Part Number Qty. Specifications Price UR583801XF 1 4X2 UR613801XG 1 4X4 € 1350,18 » 38040 MEMBER NO.1,CROSS Part Number Qty. Specifications Price UH713804XB 1 4X2 UH7438040 1 4X4 € 28,96 » 38050 MEMBER NO.2,CROSS Part Number Qty. Specifications Price UH7138050 1 4X2 UR6138050A 1 4X4 » 38060 MEMBER NO.3,CROSS Part Number Qty. Specifications Price UR613806X 1 4X4 » 38100 MEMBER NO.2,CROSS Part Number Qty. Specifications Price UR6838100 1 4X4 » 38130A MEMBER,CROSS-R. Part Number Qty. Specifications Price UH7138090A 1 ILLUST. NO.1 UR5838100 1 ILLUST. NO.2
4X2» 38151 BRACKET(R),CROSS MEMBER Part Number Qty. Specifications Price UH7438151 1 4X4 » 38161A BRACKET(L),CROSS MEMBER Part Number Qty. Specifications Price UH7438161 1 4X4 » 38220 HANGER,FRT SPRING-RR Part Number Qty. Specifications Price UH7438230A 1 4X4 » 38230 HANGER,FRT SPRING-RR Part Number Qty. Specifications Price UH7538230A 1 4X4 » 38270 BRACKET(R),FRONT SUSP. Part Number Qty. Specifications Price UR5838270 1 4X2 UR6138270 1 4X4 » 38280 BRACKET(L),FRONT SUSP. Part Number Qty. Specifications Price UR5838280 1 4X2 UR6138280 1 4X4 » 38381 HOOK(R),TIE DOWN-FRT Part Number Qty. Specifications Price UH7138383 1 » 38391 HOOK(L),TYE DOWN-FRT Part Number Qty. Specifications Price UH7138393 1 4X2 UH7438390 1 4X4 € 17,58 » 38801B COVER NO.1,SERVICE HOLE Part Number Qty. Specifications Price UB3938801 6 ILLUST. NO.1 UH7138801 2 4X2
ILLUST. NO.2» 38802 COVER NO.2,SERVICE HOLE Part Number Qty. Specifications Price UB3938802 2 » 38811 COVER'A',UNDER Part Number Qty. Specifications Price UH7138811B 1 4X2
ILLUST. NO.2UH7538811A 1 4X4
ILLUST. NO.2€ 45,68 UR6138810A 1 ILLUST. NO.1 » 38812 COVER'B',UNDER Part Number Qty. Specifications Price UH7138812 2 4X2 UR6138812A 1 4X4 » 38813A COVER,UNDER Part Number Qty. Specifications Price UR6138813 1 4X4 » 38821 COVER,REAR UNDER Part Number Qty. Specifications Price UR6638820 1 4X2 UR7638820 1 4X4 » 38909 WASHER Part Number Qty. Specifications Price UH7236909 12 4X4 » 38C10 SPACER,FRAME Part Number Qty. Specifications Price UR7938C10 1 » 38C15 SPACER,FRAME Part Number Qty. Specifications Price UH8138C15 1 4X4
ILLUST. NO.1€ 4,48 UH8238C15 2 4X2
ILLUST. NO.1UJ0738C21A 4 4X2
ILLUST. NO.2» 39386 WASHER Part Number Qty. Specifications Price 088439386 1 4X4 € 2,53 » 90780 BOLT Part Number Qty. Specifications Price 997201020 1 € 1,24 » 90780 BOLT Part Number Qty. Specifications Price 997201030 1 € 2,70 » 90780 BOLT Part Number Qty. Specifications Price 997201035 1 € 1,33 » 90780 BOLT Part Number Qty. Specifications Price 997561090 1 € 2,39 » 90780 BOLT Part Number Qty. Specifications Price 9YA001001 1 € 2,76 » 90780 BOLT Part Number Qty. Specifications Price 9YA021038 1 € 1,44 » 90901 NUT Part Number Qty. Specifications Price 999081200 1 € 2,77 » 90901 NUT Part Number Qty. Specifications Price 999211000 1 € 2,87 » 90906 NUT,FLANGE Part Number Qty. Specifications Price 999400801 1 € 1,64 » 90906 NUT,FLANGE Part Number Qty. Specifications Price 999401001 1 € 2,07 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 997860816 1 € 1,73 » 99203 WASHER,PLAIN Part Number Qty. Specifications Price 999511226 1 € 0,63 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997561225 1 € 1,85 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997561290 1 € 3,22 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997841225 1 € 2,64 » 99971 WASHER,SPRING Part Number Qty. Specifications Price 999711000 1 € 0,51 » 99971 WASHER,SPRING Part Number Qty. Specifications Price 999711200 1 € 0,51
