Mazda Mazda BT-50 UN 2006-08 Mazda Automatic Transmission Torque Converter, Oil Pump & Pipings 01/02 02/02

Mazda parts catalog

Parts > Mazda BT-50 > 2006-08 > Diesel-engine & Transmission > Automatic Transmission Torque Converter, Oil Pump & Pipings

Search by part number:

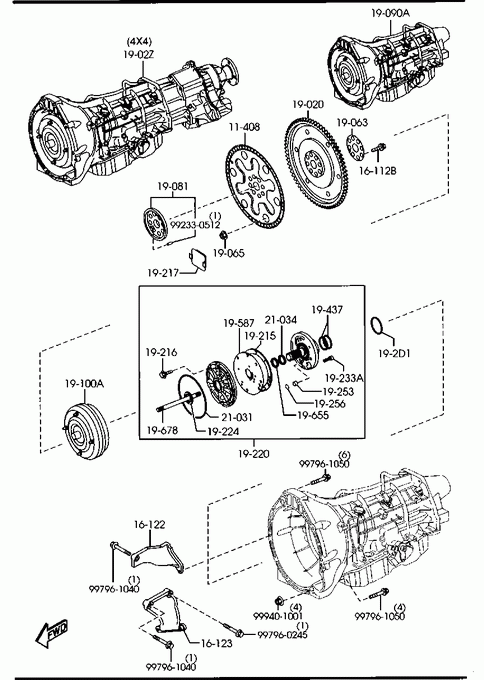

Automatic Transmission Torque Converter, Oil Pump & Pipings

01/02
02/02

PLATE,CRANKSHAFT PULLEY

Part Number	Qty.	Specifications	Price
U50111408	1

» 16112B

BOLT

Part Number	Qty.	Specifications	Price
U50116311	8

» 16122

PLATE(R),GUSSET

Part Number	Qty.	Specifications	Price
WE0116121	1	3000

» 16123

PLATE(L),GUSSET

Part Number	Qty.	Specifications	Price
WLBD16131A	1	3000

» 19020

PLATE,DRIVE

Part Number	Qty.	Specifications	Price
U50119020A	1

» 1902Z

AUTOMATIC T/M CPT.

Part Number	Qty.	Specifications	Price
U5021902Z	1	4X4

» 19063

PLATE,BACKING

Part Number	Qty.	Specifications	Price
U50119063A	1

» 19065

NUT

Part Number	Qty.	Specifications	Price
FW5019065	6	- 061106 UN -618273	€ 3,73
U50119065	6	061106 - UN618273-

» 19081

SPACER

Part Number	Qty.	Specifications	Price
U50119080	1

» 19090A

AUTOMATIC T/MISSION CPT.

Part Number	Qty.	Specifications	Price
U50119090A	1	AN (U501-19-090B) 4X2 - 070305 UN -633896
U50119090B	1	AN (U501-19-090C) 4X2 070305 - UN633896-
U50219090A	1	AN (U502-19-090B) 4X4 - 070305 UN -633896
U50219090B	1	4X4 070305 - UN633896-

» 19100A

CONVERTER,TORQUE

Part Number	Qty.	Specifications	Price
U50119100	1	AN (U501-19-100A) - 070305 UN -633896
U50119100A	1	070305 - UN633896-

» 19215

GASKET,OIL PUMP

Part Number	Qty.	Specifications	Price
U50119221	1

» 19216

BOLT

Part Number	Qty.	Specifications	Price
U50119216	8

» 19217

COVER,BLIND

Part Number	Qty.	Specifications	Price
U50119217	1

» 19220

PUMP,OIL

Part Number	Qty.	Specifications	Price
U50119220	1

» 19224

SHIM

Part Number	Qty.	Specifications	Price
U501192K2	1

» 19233A

BOLT

Part Number	Qty.	Specifications	Price
U50119233	6

» 19253

PLUG,OIL CHECK

Part Number	Qty.	Specifications	Price
U50119253	1

» 19256

RING,SEAL

Part Number	Qty.	Specifications	Price
U50119242	1

» 192D1

WASHER,THRUST

Part Number	Qty.	Specifications	Price
U501192D1	1	T=1.575 SELECTIVE USE
U501192D2	1	T=2.075 SELECTIVE USE
U502192D1	1	T=2.425 SELECTIVE USE
U502192D2	1	T=1.875 SELECTIVE USE
U503192D1	1	T=2.175 SELECTIVE USE
U503192D2	1	T=1.775 SELECTIVE USE

» 19437

SEAL,MANUAL SHAFT LEVER

Part Number	Qty.	Specifications	Price
U50119437	2

» 19587

PLATE

Part Number	Qty.	Specifications	Price
U501192A1	1

» 19655

RING,SEAL

Part Number	Qty.	Specifications	Price
U50119655	1

» 19678

SHAFT,INPUT

Part Number	Qty.	Specifications	Price
U50121678	1

» 21031

RING,'O'-UP.ACCUM 2ND PIS

Part Number	Qty.	Specifications	Price
U50121031	1

» 21034

RING,'O'-ACCUM. CLUTCH

Part Number	Qty.	Specifications	Price
U50121034	1

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999401001	1		€ 2,07

» 99220

Part Number	Qty.	Specifications	Price
992330512	1		€ 0,32

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960245	1

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961040	1		€ 2,37

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961050	1		€ 3,15
