Manual Transmission Case 01/02 02/02

Manual Transmission Case |

Mazda parts catalog

Parts > Mazda BT-50 > 2006-08 > Diesel-engine & Transmission > Manual Transmission Case

Search by part number:

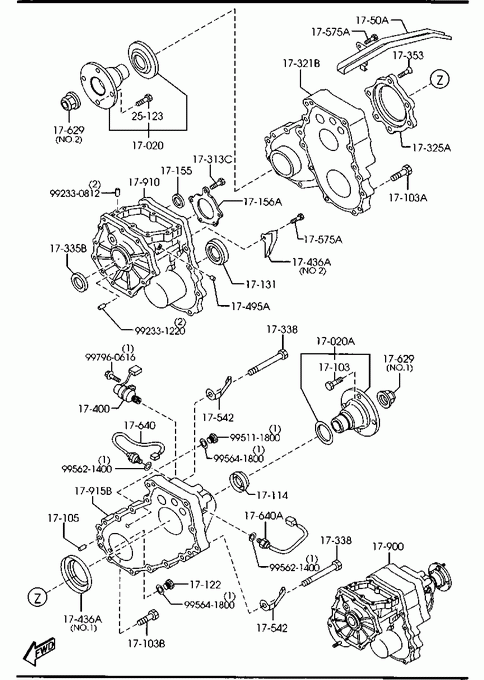

Manual Transmission Case(4x4)
01/02
02/02

» 17020 FLANGE,COMPANION-FRT T/F

Part Number Qty. Specifications Price
S5A21702X 1

» 17020A FLANGE,COMPANION-REAR T/F

Part Number Qty. Specifications Price
S5A11702X 1

» 17103 BOLT

Part Number Qty. Specifications Price
S5A217103 1

» 17103A BOLT

Part Number Qty. Specifications Price
S5A217337 5

» 17103B BOLT

Part Number Qty. Specifications Price
S5A317337 9

» 17105 DOWEL,TRANS.&CLUTCH CASE

Part Number Qty. Specifications Price
S5A117105 4

» 17114 SEAL,OIL

Part Number Qty. Specifications Price
S5A317335 1

» 17122 PLUG,MAGNET

Part Number Qty. Specifications Price
081017121 1
€ 4,40

» 17131 SEAL,OIL

Part Number Qty. Specifications Price
S5A417335 1

» 17155 SEAL,OIL

Part Number Qty. Specifications Price
S5A517335 1

» 17156A RETAINER,BEARING

Part Number Qty. Specifications Price
S5A117419 1

» 17313C BOLT

Part Number Qty. Specifications Price
S5A417337 5

» 17321B HOUSING,CENTER

Part Number Qty. Specifications Price
S5A117321 1

» 17325A RING,SYNCHRONIZER

Part Number Qty. Specifications Price
S5A117325 1

» 17335B SEAL,OIL

Part Number Qty. Specifications Price
S5A217335 1

» 17338 BOLT

Part Number Qty. Specifications Price
S5A117337 5

» 17353 SCREW SET

Part Number Qty. Specifications Price
S5A117347 6

» 17400 GEAR SET,DRIVEN-SPEED

Part Number Qty. Specifications Price
S5A217400 1 ALUMI WHEEL

S5A317400 1 STEEL WHEEL

» 17436A PLATE,BAFFLE

Part Number Qty. Specifications Price
S5A317153 1 ILLUST. NO.1

S5A417153 1 ILLUST. NO.2

» 17495A PLUG

Part Number Qty. Specifications Price
S5A517495 1

» 1750A PASS,OIL

Part Number Qty. Specifications Price
S5A217541 1

» 17542 BRACKET

Part Number Qty. Specifications Price
S5A217542 2

» 17575A BOLT

Part Number Qty. Specifications Price
S5A217575 2

» 17629 NUT,LOCK-CLUTCH HUB

Part Number Qty. Specifications Price
S5A117629 1 ILLUST. NO.1

S5A217629 1 ILLUST. NO.2

» 17640 SWITCH,BACK UP LAMP

Part Number Qty. Specifications Price
S5A317640 1

» 17640A SWITCH,PARK & NEUTRAL

Part Number Qty. Specifications Price
S5A417640 1

» 17900 TRANSFER

Part Number Qty. Specifications Price
S5A11790XC 1 A (S5A1-17-90XD)
- 060901
UN**** -610946
S5A11790XD 1 060901 -
UN****610946-

» 17910 CASE,TRANSFER

Part Number Qty. Specifications Price
S5A117911 1 A (S5A1-17-911A)
- 060901
UN**** -610946
S5A117911A 1 060901 -
UN****610946-

» 17915B CASE,TRANSFER REAR

Part Number Qty. Specifications Price
S5A117915 1

» 25123 BOLT

Part Number Qty. Specifications Price
M50117123 1

» 99201 WASHER

Part Number Qty. Specifications Price
995641800 1
€ 1,18

» 99220 PIN

Part Number Qty. Specifications Price
992330812 1
€ 0,70

» 99246 PIN,DOWEL

Part Number Qty. Specifications Price
992331220 1
€ 1,35

» 99305 PLUG

Part Number Qty. Specifications Price
995111800 1
€ 2,42

» 99560 GASKET

Part Number Qty. Specifications Price
995621400 1
€ 3,08

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960616 1
€ 0,81

Part Number	Qty.	Specifications	Price
S5A217400	1	ALUMI WHEEL
S5A317400	1	STEEL WHEEL

Part Number	Qty.	Specifications	Price
S5A317153	1	ILLUST. NO.1
S5A417153	1	ILLUST. NO.2

Manual Transmission Case(4x4)
