Manual Transmission Case 01/02 02/02

Manual Transmission Case |

Mazda parts catalog

Parts > Mazda MX-5 > 2005-07 > Gasoline-engine 4-cylinder Transmission > Manual Transmission Case

Search by part number:

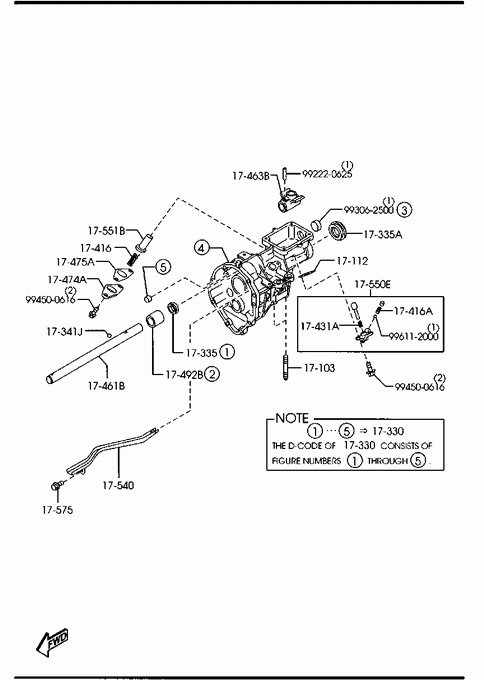

Manual Transmission Case(6-speed)
01/02
02/02

» 17103 BOLT

Part Number Qty. Specifications Price
R52617103 2

» 17112 GASKET

Part Number Qty. Specifications Price
S52417112 1
€ 5,95

» 17330 HOUSING,EXTENSION

Part Number Qty. Specifications Price
P60117330A 1 A (P601-17-330B)

» 17335 SEAL,OIL

Part Number Qty. Specifications Price
G5A017335A 1
€ 4,63

» 17335A SEAL,OIL

Part Number Qty. Specifications Price
R50117335A 1
€ 17,86

» 17341J BALL,STEEL

Part Number Qty. Specifications Price
P60117108 1
€ 0,87

» 17416 SPRING,SHIFT ROD END

Part Number Qty. Specifications Price
P60117416 1 A (P601-17-416A)
- 080201

P60117416A 1 080201 -

» 17416A SPRING

Part Number Qty. Specifications Price
R50417416 1
€ 2,28

» 17431A SPRING

Part Number Qty. Specifications Price
R50517416 1
€ 2,24

» 17461B ROD,CONTROL

Part Number Qty. Specifications Price
P60117461 1 AN (P601-17-461A)
- 070705
NC18** -141913
P60117461A 1 070705 -
NC18**141913-

» 17463B END,CONTROL ROD

Part Number Qty. Specifications Price
P60117463 1 C (P611-17-463)

» 17474A CAP,SPRING

Part Number Qty. Specifications Price
M50117474 1
€ 5,31

» 17475A GASKET,SPRING CAP

Part Number Qty. Specifications Price
M50117475 1
€ 1,25

» 17492B BUSH,SHIFT ROD-DIFF. LOCK

Part Number Qty. Specifications Price
G5A017492 2 OILES
€ 4,02

» 17540 PASS,OIL

Part Number Qty. Specifications Price
P60117540 1 AN (P610-17-540)
- 070901
NC18** -144159
P61017540 1 070901 -
NC18**144159-

» 17550E SPINDLE,SELECT

Part Number Qty. Specifications Price
P60117550 1

» 17551B SPINDLE,SELECT LOCK

Part Number Qty. Specifications Price
R50417551A 1
€ 34,56

» 17575 BOLT

Part Number Qty. Specifications Price
S56417575 1

» 90780 BOLT

Part Number Qty. Specifications Price
994500616 1

» 99222 PIN,SPRING

Part Number Qty. Specifications Price
992220625 1
€ 1,48

» 99306 CAP,SEALING

Part Number Qty. Specifications Price
993062500 1
€ 2,58

» 99520 BALL

Part Number Qty. Specifications Price
996112000 1
€ 1,85

Part Number	Qty.	Specifications	Price
P60117330A	1	A (P601-17-330B)

Part Number	Qty.	Specifications	Price
P60117416	1	A (P601-17-416A) - 080201
P60117416A	1	080201 -

Part Number	Qty.	Specifications	Price
P60117461	1	AN (P601-17-461A) - 070705 NC18 -141913**
P60117461A	1	070705 - NC18141913-**

Part Number	Qty.	Specifications	Price
P60117540	1	AN (P610-17-540) - 070901 NC18 -144159**
P61017540	1	070901 - NC18144159-**

Manual Transmission Case(6-speed)
