Rear Bumper 01/02 (W/O RR.MUD FLAP) 02/02 (W/RR.MUD FLAP)

Rear Bumper |

Mazda parts catalog

Parts > Mazda MX-5 > 2003-09 > Body Exterior Trim > Rear Bumper

Search by part number:

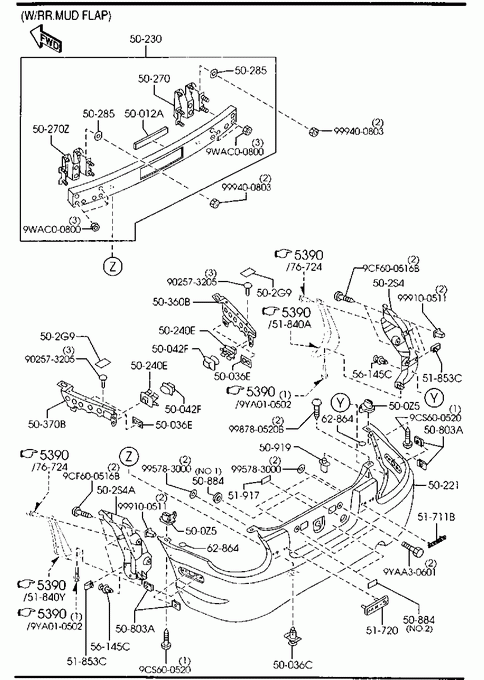

Rear Bumper
01/02 (W/O RR.MUD FLAP)
02/02 (W/RR.MUD FLAP)

» 50012A PROTECTOR

Part Number Qty. Specifications Price
N066506H1 1
€ 7,79

» 50036C FASTENER

Part Number Qty. Specifications Price
BF6750033 2
€ 1,45

» 50036E CLIP

Part Number Qty. Specifications Price
GJ2150049 4
€ 1,55

» 50042F SLIDE'B',BUMPER

Part Number Qty. Specifications Price
NC1050E11B 2
€ 1,39

» 500Z5 GROMMET,SCREW

Part Number Qty. Specifications Price
BC1M500Z5 2
€ 1,45

» 50221 BUMPER,REAR

Part Number Qty. Specifications Price
NCY150220G 1 PAINT TO MATCH
€ 218,72

» 50230 REINF,BUMPER-REAR

Part Number Qty. Specifications Price
NC1050260D 1
€ 153,48

» 50240E SLIDE,RR BUMPER-UP. NO.2

Part Number Qty. Specifications Price
NC1050E13A 2
€ 1,51

» 50270 STAY(R),RR. BUMPER

Part Number Qty. Specifications Price
NC1050270A 1
€ 31,93

» 50270Z STAY(L),RR. BUMPER

Part Number Qty. Specifications Price
NC1050280B 1
€ 32,40

» 50285 GASKET,SEAL

Part Number Qty. Specifications Price
G03050285 4
€ 2,63

» 502G9 SEAL,RUBBER

Part Number Qty. Specifications Price
NC10502G1C 2
€ 1,28

» 502S4 SHIELD(R),SPLASH-R.BUMPER

Part Number Qty. Specifications Price
N06650341A 1 W/RR. MUD FLAP
€ 16,99
NC1050341D 1 W/O RR. MUD FLAP
€ 16,99

» 502S4A SHIELD(L),SPLASH-R.BUMPER

Part Number Qty. Specifications Price
N06650351A 1 W/RR. MUD FLAP
€ 18,96
NC1050351D 1 W/O RR. MUD FLAP
€ 19,16

» 50360B GUARD(R),REAR BUMPER

Part Number Qty. Specifications Price
NC1050361B 1
€ 8,03

» 50370B GUARD(L),REAR BUMPER

Part Number Qty. Specifications Price
NC1050371B 1
€ 8,03

» 50803A NUT,SIDE PROTECTOR

Part Number Qty. Specifications Price
G15850803 4
€ 2,13

» 50884 TAPE

Part Number Qty. Specifications Price
B45550G32 2 ILLUST. NO.2
€ 1,12
NC1050EM1 1 ILLUST. NO.1
€ 1,39

» 50919 GROMMET,SCREW-SIDE WINDOW

Part Number Qty. Specifications Price
B21650919 2
€ 2,14

» 51711B ORNAMENT,MAKER NAME-REAR

Part Number Qty. Specifications Price
NC1051711 1
€ 7,27

» 51720 ORNAMENT,CAR NAME-REAR

Part Number Qty. Specifications Price
NC3051721B 1
€ 11,51

» 51853C NUT,CLIP

Part Number Qty. Specifications Price
B09251861 4 W/RR. MUD FLAP
€ 2,83

» 51917 SEAL,RUBBER

Part Number Qty. Specifications Price
NC10502G2 3
€ 1,08

» 56145C CLIP,MUD GUARD

Part Number Qty. Specifications Price
BC1D56145 6 W/O RR. MUD FLAP
€ 0,64

» 62864 TAPE,PROTECTOR-STOPPER

Part Number Qty. Specifications Price
G04362864A 2
€ 2,44

» 90257 RIVET,BLIND

Part Number Qty. Specifications Price
902573205 1
€ 0,51

» 90720 SCREW

Part Number Qty. Specifications Price
9CF600516B 1
€ 1,64

» 90780 BOLT

Part Number Qty. Specifications Price
9YAA30601 1
€ 2,24

» 90901 NUT

Part Number Qty. Specifications Price
9WAC00800 1
€ 1,13

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400803 1
€ 1,63

» 99175 SCREW,TAPPING

Part Number Qty. Specifications Price
998780520B 1
€ 1,43

» 99175 SCREW,TAPPING

Part Number Qty. Specifications Price
9CS600520 1
€ 0,69

» 99577 NUT,SPEED

Part Number Qty. Specifications Price
995783000 1
€ 0,55

» 99910 GROMMET,SCREW

Part Number Qty. Specifications Price
999100511 1
€ 1,94
