Mazda MX-5 NB 2003-09 Mazda Fuel Tank 01/02 02/02

Mazda parts catalog

Parts > Mazda MX-5 > 2003-09 > Chassis Piping & Fuel Tank > Fuel Tank

Search by part number:

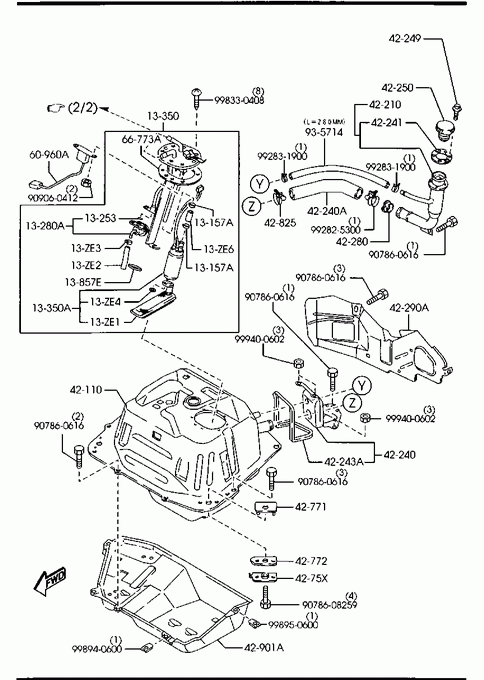

Fuel Tank
01/02
02/02

» 13157A CLIP

Part Number Qty. Specifications Price
AZ2813157 2
€ 3,64

» 13253 RING,'O'

Part Number Qty. Specifications Price
857413253 1
€ 2,06

» 13280A PRESSURE RG.,FUEL

Part Number Qty. Specifications Price
BP4W13280B 1
€ 131,54

» 13350 PUMP,FUEL

Part Number Qty. Specifications Price
BP4W1335ZG 1
€ 397,13

» 13350A PUMP,FUEL-SUB

Part Number Qty. Specifications Price
BP4W13350A 1
€ 342,00

» 13857E BAND,HOSE

Part Number Qty. Specifications Price
BP4W13FD1 1

» 13ZE1 FILTER,FUEL PUMP

Part Number Qty. Specifications Price
BP4W13ZE1 1
€ 20,52

» 13ZE2 HOSE,FUEL

Part Number Qty. Specifications Price
BP4W13ZE2 1

» 13ZE3 CLIP,HOSE-FUEL HOSE

Part Number Qty. Specifications Price
B62K13ZE3 1

» 13ZE4 WASHER,LOCK-PUMP FILTER

Part Number Qty. Specifications Price
F8B313ZE4 1 MITSUBISHI
€ 6,04

» 13ZE6 HOSE,FUEL PUMP-IN TANK

Part Number Qty. Specifications Price
KL1913ZE6 1
€ 14,33

» 42110 TANK,FUEL

Part Number Qty. Specifications Price
NC3042110H 1
€ 284,53

» 42210 PIPE,FILLER

Part Number Qty. Specifications Price
NC3042210F 1
€ 64,48

» 42240 COVER,DUST

Part Number Qty. Specifications Price
N05342240 1
€ 47,38

» 42240A HOSE,JOINT

Part Number Qty. Specifications Price
NC1042231 1
€ 33,65

» 42241 GASKET,FILLER PIPE

Part Number Qty. Specifications Price
086642366B 1
€ 2,91

» 42243A GASKET'A',DUST COVER

Part Number Qty. Specifications Price
NA0142233 1
€ 14,12

» 42249 BOLT,FILLER PIPE

Part Number Qty. Specifications Price
NA0142249B 4
€ 5,02

» 42250 CAP,FILLER

Part Number Qty. Specifications Price
NC8342250 1
€ 35,72

» 42280 VALVE,NON RETURN

Part Number Qty. Specifications Price
GE4T42270B 1
€ 10,29

» 42290A PROTECTOR'A',FILLER PIPE

Part Number Qty. Specifications Price
NC1142291A 1
€ 26,60

» 4275X REINF.,FUEL TANK

Part Number Qty. Specifications Price
NC1142773A 4

» 42771 RUBBER(UP),MOUNT-TANK

Part Number Qty. Specifications Price
NC1042771 4
€ 2,24

» 42772 RUBBER(LWR),MOUNT-TANK

Part Number Qty. Specifications Price
NA0142772 4
€ 2,12

» 42825 CLAMP,HOSE

Part Number Qty. Specifications Price
S05B42239 1
€ 3,08

» 42901A INSULATOR

Part Number Qty. Specifications Price
NC104274XC 1
€ 72,97

» 60960A GAUGE,FUEL TANK

Part Number Qty. Specifications Price
NC1060960 1
€ 37,58

» 66773A GASKET

Part Number Qty. Specifications Price
BP4W60962 1
€ 11,44

» 90720 SCREW

Part Number Qty. Specifications Price
998330408 1
€ 0,55

» 90786 SCREW & WASHER,TAPPING

Part Number Qty. Specifications Price
907860616 1
€ 2,41

» 90786 SCREW & WASHER,TAPPING

Part Number Qty. Specifications Price
9078608259 1
€ 2,72

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
909060412 1
€ 2,14

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400602 1
€ 1,28

» 935714 HOSE

Part Number Qty. Specifications Price
9935714999 1 L=1M CUT IT TO USE
€ 34,85

» 99281 CLAMP,HOSE

Part Number Qty. Specifications Price
992825300 1
€ 1,64

» 99281 CLAMP,HOSE

Part Number Qty. Specifications Price
992831900 1
€ 1,88

» 99894 NUT,CLIP

Part Number Qty. Specifications Price
998940600 1
€ 1,22

» 99894 NUT,CLIP

Part Number Qty. Specifications Price
998950600 1
€ 2,88

Part Number	Qty.	Specifications	Price
F8B313ZE4	1	MITSUBISHI	€ 6,04
