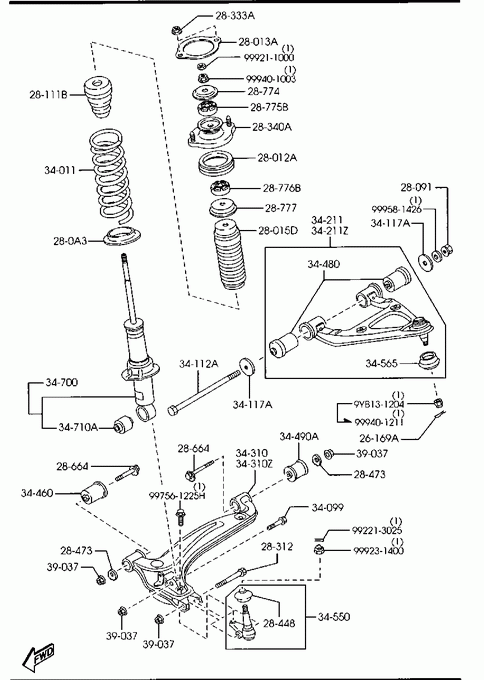

Front Suspension Mechanisms
-
» 26169A PIN,SNAP Part Number Qty. Specifications Price T06026169 2 AN (T060-26-169A) € 2,44 » 28012A SHEET,RUBBER Part Number Qty. Specifications Price NC1028012B 2 € 11,13 » 28013A SHEET,RUBBER Part Number Qty. Specifications Price G03028013A 2 € 1,90 » 28015D BOOT,DUST Part Number Qty. Specifications Price NC1028015A 2 € 11,07 » 28091 NUT Part Number Qty. Specifications Price FB0128091A 2 € 4,48 » 280A3 RUBBER,SPRING SHEET Part Number Qty. Specifications Price NC10280A3A 2 € 3,52 » 28111B STOPPER,BUMP Part Number Qty. Specifications Price NC1034111 2 € 30,03 » 28312 BOLT'A',LINK Part Number Qty. Specifications Price H26628312 2 € 4,62 » 28333A NUT,FLANGE Part Number Qty. Specifications Price H00128333 4 € 3,25 » 28340A SHEET,SPRING-UPPER Part Number Qty. Specifications Price NC1028340C 2 € 17,86 » 28448 SEAL,DUST-BALL JOINT Part Number Qty. Specifications Price H26628448 2 € 6,98 » 28473 PLATE,CAM-SUB FRAME Part Number Qty. Specifications Price NA8028473A 4 € 3,10 » 28664 BOLT,ADJUST Part Number Qty. Specifications Price NA802866ZD 4 € 9,65 » 28774 RETAINER,REAR DAMPER Part Number Qty. Specifications Price NC1028774 2 € 1,23 » 28775B BUSH,REAR DAMPER-UPPER Part Number Qty. Specifications Price NC1028775 2 € 2,42 » 28776B BUSH,REAR DAMPER-LOWER Part Number Qty. Specifications Price NC1028776 2 € 2,42 » 28777 WASHER Part Number Qty. Specifications Price NC1028777 2 € 3,78 » 34011 SPRING,COIL-FRONT Part Number Qty. Specifications Price N06734011A 2 HARD SUSP € 98,97 N06834011A 2 (NOR. SUSP>1800)
SPORT SUSP€ 90,72 NC1034011C 2 (NOR. SUSP>1600) € 109,84 » 34099 BOLT Part Number Qty. Specifications Price GJ2134097A 2 € 4,64 » 34112A BOLT Part Number Qty. Specifications Price NA0134112 2 € 10,49 » 34117A WASHER Part Number Qty. Specifications Price NA0134117A 4 € 2,50 » 34211 ARM(R),UPPER Part Number Qty. Specifications Price N06634200 1 W/O A. LOCK BRAKE € 186,32 N06834200 1 W/A. LOCK BRAKE € 257,50 » 34211Z ARM(L),UPPER Part Number Qty. Specifications Price N06634200 1 W/O A. LOCK BRAKE € 186,32 N06834250 1 W/A. LOCK BRAKE € 257,50 » 34310 ARM(R),LOWER Part Number Qty. Specifications Price N06634310 1 € 179,29 » 34310Z ARM(L),LOWER Part Number Qty. Specifications Price N06634360 1 € 180,47 » 34460 BUSH,RUBBER-LWR ARM Part Number Qty. Specifications Price NA0134460A 2 € 26,42 » 34480 BUSHING,RUBBER-LOWER ARM Part Number Qty. Specifications Price NC1034480 4 € 12,81 » 34490A BUSHING,RUBBER Part Number Qty. Specifications Price NA0134490 2 € 16,65 » 34550 BALL JOINT,LOWER Part Number Qty. Specifications Price NA0134550B 2 € 62,22 » 34565 SEAL,DUST Part Number Qty. Specifications Price NA0134548 2 € 7,18 » 34700 DAMPER,FRONT Part Number Qty. Specifications Price N06634700 2 (NOR. SUSP>W/O A. LOCK BRAKE) € 62,53 N06734700 2 BILSTEIN
HARD SUSP€ 159,27 N06834700 2 (NOR. SUSP>W/A. LOCK BRAKE)
SPORT SUSP€ 75,68 » 34710A BUSHING,DAMPER?LOWER Part Number Qty. Specifications Price NC1034710 2 € 26,06 » 39037 NUT Part Number Qty. Specifications Price B00139037B 8 € 4,09 » 90901 NUT Part Number Qty. Specifications Price 999211000 1 € 2,87 » 90901 NUT Part Number Qty. Specifications Price 9YB131204 1 € 3,05 » 90906 NUT,FLANGE Part Number Qty. Specifications Price 999401003 1 € 2,18 » 90906 NUT,FLANGE Part Number Qty. Specifications Price 999401211 1 € 2,17 » 99133 NUT,CASTLE Part Number Qty. Specifications Price 999231400 1 € 2,60 » 99203 WASHER,PLAIN Part Number Qty. Specifications Price 999581426 1 € 2,88 » 99221 PIN,SPLIT Part Number Qty. Specifications Price 992213025 1 € 0,34 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997561225H 1 € 2,43
