Mazda MX-5 NB 2003-09 Mazda Manual Transmission Gears

Mazda parts catalog

Parts > Mazda MX-5 > 2003-09 > Gasoline-engine 4-cylinder Transmission > Manual Transmission Gears(5-speed)

Search by part number:

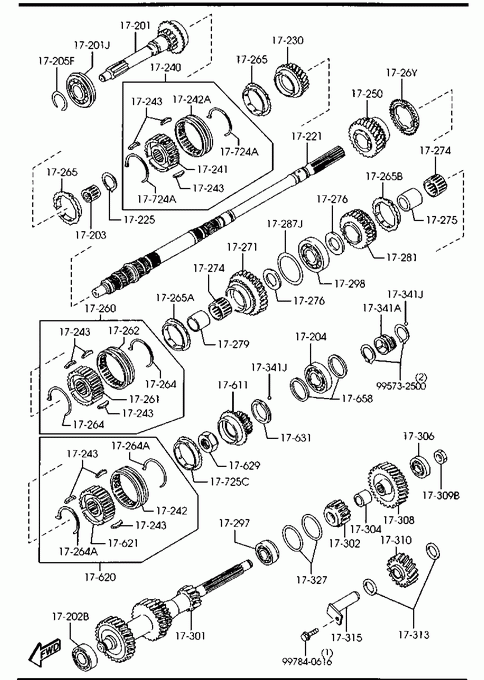

Manual Transmission Gears(5-speed)

GEAR,MAIN DRIVE

Part Number	Qty.	Specifications	Price
M51617201A	1	AN (M516-17-201B) - 050321 NB18 -419193**	€ 206,10
M51617201B	1	050321 - NB18419193-**	€ 214,42

» 17201J

BEARING,BALL-MAIN DRIVE GEAR

Part Number	Qty.	Specifications	Price
M50217295C	1	KOYO SUPPLIER IN SELECTION	€ 34,28
M50517295	1	HANWHA SUPPLIER IN SELECTION

» 17202B

BEARING,BALL

Part Number	Qty.	Specifications	Price
F52017171C	1	KOYO	€ 27,44

» 17203

BEARING,NEEDLE

Part Number	Qty.	Specifications	Price
M50117210A	1		€ 10,29

» 17204

BEARING,BALL-MAIN SHAFT

Part Number	Qty.	Specifications	Price
M50317204	1	NSK	€ 28,61

» 17205F

RING,RETAINING

Part Number	Qty.	Specifications	Price
M50117205	1		€ 2,10

» 17221

SHAFT,MAIN

Part Number	Qty.	Specifications	Price
M50517221E	1	AN (M505-17-221F)	€ 244,65

» 17225

RING,SNAP

Part Number	Qty.	Specifications	Price
031717225	1		€ 2,16

» 17230

GEAR,3RD

Part Number	Qty.	Specifications	Price
M52117231	1		€ 135,11

» 17240

HUB SET,CLUTCH-3RD & 4TH

Part Number	Qty.	Specifications	Price
M51817240B	1		€ 201,55

» 17241

HUB,CLUTCH

Part Number	Qty.	Specifications	Price
M50117241C	1		€ 87,19

» 17242

SLEEVE,CLUTCH HUB

Part Number	Qty.	Specifications	Price
F40117242A	1		€ 43,46

» 17242A

SLEEVE,CLUTCH HUB

Part Number	Qty.	Specifications	Price
M50317242B	1

» 17243

KEY,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
F40117243C	9		€ 3,24

» 17250

GEAR,2ND

Part Number	Qty.	Specifications	Price
M52817251	1		€ 128,69

» 17260

HUB SET,CLUTCH-1ST & 2ND

Part Number	Qty.	Specifications	Price
M52017260D	1		€ 201,55

» 17261

HUB,CLUTCH

Part Number	Qty.	Specifications	Price
M51117261	1		€ 83,80

» 17262

SLEEVE,CLUTCH HUB

Part Number	Qty.	Specifications	Price
M50717262C	1

» 17264

SPRING,SYNCHRO. KEY

Part Number	Qty.	Specifications	Price
G40117264	2	A (G402-17-264)	€ 2,59

» 17264A

SPRING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
F40117264A	2	A (F402-17-264)	€ 2,70

» 17265

RING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
G50117265A	2		€ 26,32

» 17265A

RING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
M50217265C	1		€ 26,93

» 17265B

RING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
M50417265C	1		€ 20,96

» 1726Y

RING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
R5061726Y	1		€ 51,58

» 17271

GEAR,1ST

Part Number	Qty.	Specifications	Price
M51617271A	1		€ 153,62

» 17274

BEARING,NEEDLE

Part Number	Qty.	Specifications	Price
406917283A	2		€ 27,73

» 17275

RACE,INNER

Part Number	Qty.	Specifications	Price
406917284E	1		€ 35,57

» 17276

WASHER,THRUST

Part Number	Qty.	Specifications	Price
025917274A	2	T=3.0MM	€ 5,25
025917276	2	T=2.2MM	€ 5,08
025917277	2	T=2.7MM	€ 4,78
025917278	2	T=3.2MM	€ 4,78
025917279	2	T=3.7MM	€ 4,08

» 17279

SLEEVE,GEAR

Part Number	Qty.	Specifications	Price
854017275A	1		€ 25,44

» 17281

GEAR,REVERSE

Part Number	Qty.	Specifications	Price
M51317281C	1		€ 118,68

» 17287J

SHIM,ADJUST

Part Number	Qty.	Specifications	Price
9996363010	1	T=1MM
999636310	2	T=0.1MM	€ 1,62
999636330	2	T=0.3MM	€ 1,94
999636335	1	T=0.35MM	€ 2,91
999636340	1	T=0.4MM	€ 2,91
999636345	1	T=0.45MM	€ 2,91
999636350	1	T=0.5MM
999636355	1	T=0.55MM	€ 2,91
999636360	1	T=0.6MM
999636365	1	T=0.65MM
999636370	1	T=0.7MM
999636375	1	T=0.75MM
999636380	1	T=0.8MM
999636385	1	T=0.85MM
999636390	1	T=0.9MM
999636395	1	T=0.95MM

» 17297

BEARING,BALL-COUNTER SHAFT G.

Part Number	Qty.	Specifications	Price
M50617297	1	A (M503-17-297A)	€ 54,13

» 17298

BEARING

Part Number	Qty.	Specifications	Price
M50217298A	1	AN (M502-17-298B)	€ 34,55

» 17301

GEAR,COUNTER SHAFT

Part Number	Qty.	Specifications	Price
M52817301C	1	AN (M536-17-301A) - 050401 NB18 -420287**	€ 360,87
M53617301	1	A (M536-17-301A) 050401 - 050407 NB18420287-420487**
M53617301A	1	050407 - NB18420487-**	€ 599,03

» 17302

GEAR,COUNTER REVERSE

Part Number	Qty.	Specifications	Price
M51617302	1		€ 39,68

» 17304

SPACER

Part Number	Qty.	Specifications	Price
M50417304	1		€ 5,14

» 17306

BEARING,BALL

Part Number	Qty.	Specifications	Price
M50217299B	1	KOYO SUPPLIER IN SELECTION	€ 22,52
M50417299	1	HANWHA SUPPLIER IN SELECTION

» 17308

GEAR,COUNTER-5TH

Part Number	Qty.	Specifications	Price
M51017308	1		€ 126,91

» 17309B

NUT,LOCK-COUNTER SHAFT BR

Part Number	Qty.	Specifications	Price
M50117309	1		€ 9,13

» 17310

GEAR,REVERSE IDLE

Part Number	Qty.	Specifications	Price
M51317310C	1		€ 99,44

» 17313

WASHER,THRUST-REVERSE IDLE G.

Part Number	Qty.	Specifications	Price
M50117313	2	T=2.0MM	€ 3,21

» 17315

SHAFT,REV. IDLE GEAR

Part Number	Qty.	Specifications	Price
M50117140	1		€ 11,45

» 17327

SHIM,ADJUST-COUNTER SHAFT GEAR

Part Number	Qty.	Specifications	Price
030517327	2	T=0.1MM	€ 2,03
030517328	2	T=0.3MM	€ 2,43

» 17341A

GEAR,SPEEDO.DRIVE

Part Number	Qty.	Specifications	Price
M50317341A	1		€ 24,32

» 17341J

BALL,STEEL

Part Number	Qty.	Specifications	Price
996111500	2		€ 1,93

» 17611

GEAR,OVER TOP

Part Number	Qty.	Specifications	Price
M51717611	1		€ 180,29

» 17620

HUB,CLUTCH-5TH & REV.

Part Number	Qty.	Specifications	Price
M50517620C	1		€ 122,69

» 17621

HUB,CLUTCH

Part Number	Qty.	Specifications	Price
M50517621A	1		€ 61,77

» 17629

NUT,LOCK-CLUTCH HUB

Part Number	Qty.	Specifications	Price
860117629	1		€ 18,58

» 17631

WASHER,THRUST LOCK-OVER TOP G.

Part Number	Qty.	Specifications	Price
088417632C	1	T=6.2MM	€ 9,66
088417633C	1	T=6.4MM	€ 8,69
088417634C	1	T=6.5MM	€ 8,69
088417635C	1	T=6.6MM	€ 10,03

» 17658

RING

Part Number	Qty.	Specifications	Price
M50817637A	1	T=2.9MM	€ 3,02
M50917637A	2	T=3MM	€ 3,11
M51017637A	1	T=3.1MM	€ 3,08

» 17724A

SPRING,SYNCHRO.KEY

Part Number	Qty.	Specifications	Price
W50117724	2		€ 2,28

» 17725C

RING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
V50117725	1		€ 18,74

» 99571

RING,SNAP

Part Number	Qty.	Specifications	Price
995732500	1		€ 2,20

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997840616	1		€ 1,50

Manual Transmission Gears(5-speed)
