Seats 01/03 (MATERIAL) 02/03 (PASSENGER SIDE) 03/03 (DRIVER SIDE)

Seats |

Mazda parts catalog

Parts > Mazda MX-5 > 2000-08 > Body Interior Trim > Seats

Search by part number:

Seats

01/03 (MATERIAL)

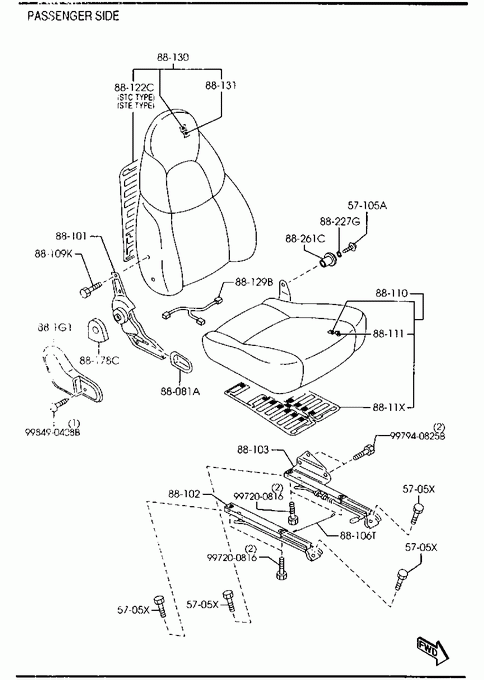

02/03 (PASSENGER SIDE)
03/03 (DRIVER SIDE)

BOLT,LINK

Part Number	Qty.	Specifications	Price
B4555705XB	8		€ 1,96

» 57105A

BOLT,HINGE

Part Number	Qty.	Specifications	Price
NC1088063	2		€ 2,83

» 88081A

KNOB(R),KNUCKLE

Part Number	Qty.	Specifications	Price
N066881G5	1

» 88101

KNUCKLE(R),RECLINING

Part Number	Qty.	Specifications	Price
N06688101	1	AN (N066-88-101A)	€ 97,77

» 88102

ADJUSTER,NO.1

Part Number	Qty.	Specifications	Price
N06688102	1		€ 70,93

» 88103

ADJUSTER,NO.2

Part Number	Qty.	Specifications	Price
N06688103	1		€ 137,81

» 88106T

WIRE,CONNECT

Part Number	Qty.	Specifications	Price
NA0188106	1		€ 1,84

» 88109K

SCREW,KNUCKLE

Part Number	Qty.	Specifications	Price
H26088109	8		€ 3,10

» 88110

CUSHION(R),FRT SEAT

Part Number	Qty.	Specifications	Price
N06688110A	1	(STA TYPE>W/O AIR BAG CUT SYSTEM) 011201 - NB18220948-**
NC8288110	1	STA TYPE - 001101 NB18 -203519**
NC8288110A	1	STA TYPE 001101 - 011201 NB18203519-220948**
NC8388110	1	STB TYPE
NC8488110	1	STC TYPE - 010501 NB18 -211122**
NC8488110A	1	STC TYPE 010501 - NB18211122-**
NC8688110	1	STE TYPE 020101 - NB18224372-**

» 88111

TRIM(R),SEAT CUSHION

Part Number	Qty.	Specifications	Price
N06688111A	1	(STA TYPE>W/O AIR BAG CUT SYSTEM) 011201 - NB18220948-**
NC8288111	1	(STA TYPE>W/AIR BAG CUT SYSTEM)
NC8388111	1	STB TYPE
NC8488111A	1	STC TYPE
ND2488111	1	STE TYPE 020101 - NB18224372-**

» 8811X

SENSOR(R),SEAT CUSHION

Part Number	Qty.	Specifications	Price
NC828811X	1	(STA TYPE>W/AIR BAG CUT SYSTEM) STB TYPE	€ 473,08
NC848811X	1	STC TYPE STE TYPE	€ 593,44

» 88122C

HEATER,SEAT BACK

Part Number	Qty.	Specifications	Price
NC8488122	2	STC TYPE STE TYPE	€ 92,75

» 88129B

CORD,SHORT

Part Number	Qty.	Specifications	Price
NC8288129	1	(STA TYPE>W/AIR BAG CUT SYSTEM) STB TYPE	€ 14,78

» 88130

BACK(R),FRONT SEAT

Part Number	Qty.	Specifications	Price
NC7288130	1	STA TYPE
NC8388130	1	STB TYPE
NC8488130	1	STC TYPE
NC8688130	1	STE TYPE 020101 - NB18224372-**

» 88131

TRIM(R),SEAT BACK

Part Number	Qty.	Specifications	Price
NC7288131	1	STA TYPE
NC7388131	1	STC TYPE
NC8388131	1	STB TYPE
NC8688131	1	STE TYPE 020101 - NB18224372-**

» 88178C

COVER(R),HINGE

Part Number	Qty.	Specifications	Price
N06688035	1

» 881G1

COVER NO.1,SIDE-F.SEAT

Part Number	Qty.	Specifications	Price
N066881G1	1

» 88227G

SILENCER

Part Number	Qty.	Specifications	Price
NC1088049	2		€ 1,38

» 88261C

LEVER,RELEASE

Part Number	Qty.	Specifications	Price
NA7588108	2		€ 2,72

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998490408B	1		€ 1,89

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997200816	1		€ 1,22

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997940825B	1		€ 1,41
