Mazda MX-5 NB 1998-01 Mazda Rear Lower Arms & Sub Frame

Mazda parts catalog

Parts > Mazda MX-5 > 1998-01 > Chassis Axle Suspension,brake & Steering > Rear Lower Arms & Sub Frame

Search by part number:

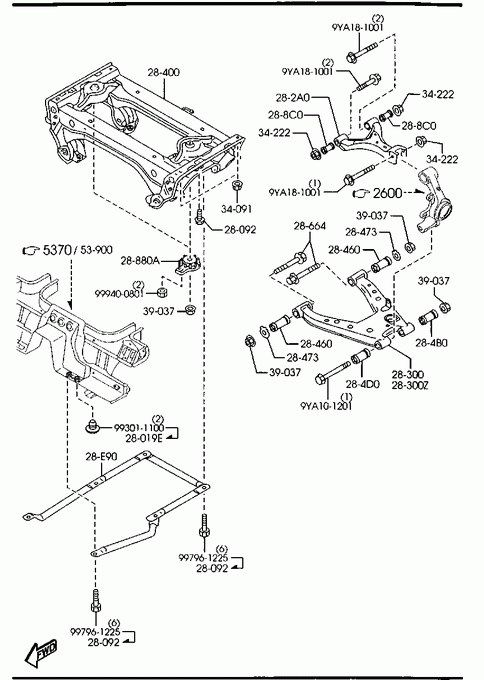

Rear Lower Arms & Sub Frame

CAP,REAR DAMPER

Part Number	Qty.	Specifications	Price
N06628019	2	A (N066-28-019A) 000601 - 000620 *NB182156723-157258**
N06628019A	2	AN (N066-28-019B) 000620 - *NB182157258-**

» 28092

BOLT,CONTROL LINK

Part Number	Qty.	Specifications	Price
NA0128092	8	000601 - *NB182156723-**	€ 3,52

» 282A0

ARM,UPPER-REAR

Part Number	Qty.	Specifications	Price
NC1028C10	2		€ 187,37

» 28300

ARM(R),LOWER-REAR

Part Number	Qty.	Specifications	Price
NC1028310	1		€ 211,62

» 28300Z

ARM(L),LOWER-REAR

Part Number	Qty.	Specifications	Price
NC1028360	1		€ 211,62

» 28400

MEMBER,CROSS

Part Number	Qty.	Specifications	Price
NC1028800C	1	- 000601 *NB182 -156723**	€ 695,36
NC1028800D	1	000601 - *NB182156723-**	€ 723,46

» 28460

BUSHING,LOWER ARM

Part Number	Qty.	Specifications	Price
NA0128460	4		€ 15,72

» 28473

PLATE,CAM-SUB FRAME

Part Number	Qty.	Specifications	Price
NA8028473A	4		€ 3,10

» 284B0

BUSHING,RUBBER-LOWER ARM

Part Number	Qty.	Specifications	Price
NA01284B0	2		€ 15,72

» 284D0

BUSHING,RUBBER-LOWER ARM

Part Number	Qty.	Specifications	Price
NA01284D0	2		€ 15,72

» 28664

BOLT,ADJUST

Part Number	Qty.	Specifications	Price
NA802866ZC	4	A (NA80-28-66ZD) - 000516 *NB182 -155439**	€ 9,27
NA802866ZD	4	000516 - *NB182155439-**	€ 9,65

» 28880A

WASHER,STOP

Part Number	Qty.	Specifications	Price
NA0128880C	2		€ 26,75

» 288C0

BUSHING,RUBBER

Part Number	Qty.	Specifications	Price
NA01288C0C	4		€ 14,36

» 28E90

BAR,CROSS-REAR

Part Number	Qty.	Specifications	Price
NC1028E90	1	A (NC10-28-E90A) - 000501 *NB182 -154974**	€ 134,01
NC1028E90C	1	A (NC10-28-E90D) 000501 - 000601 *NB182154974-156723**
NC1028E90D	1	000601 - *NB182156723-**	€ 139,42

» 34091

NUT

Part Number	Qty.	Specifications	Price
FB0134091	4	AN (FB01-34-091A) - 980212 *NB182 -102178**	€ 3,67
FB0134091A	4	980212 - *NB182102178-**	€ 3,85

» 34222

NUT

Part Number	Qty.	Specifications	Price
887134222	6		€ 4,56

» 39037

NUT

Part Number	Qty.	Specifications	Price
B00139037B	8		€ 4,09

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YA101201	1		€ 9,23

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400801	1		€ 1,64

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
9YA181001	1		€ 3,02

» 99301

CAP

Part Number	Qty.	Specifications	Price
993011100	1		€ 2,03

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961225	1		€ 2,95
