Mazda MX-5 NB 1998-01 Mazda Rear Differentials

Mazda parts catalog

Parts > Mazda MX-5 > 1998-01 > Chassis Axle Suspension,brake & Steering > Rear Differentials(normal Diff.)

Search by part number:

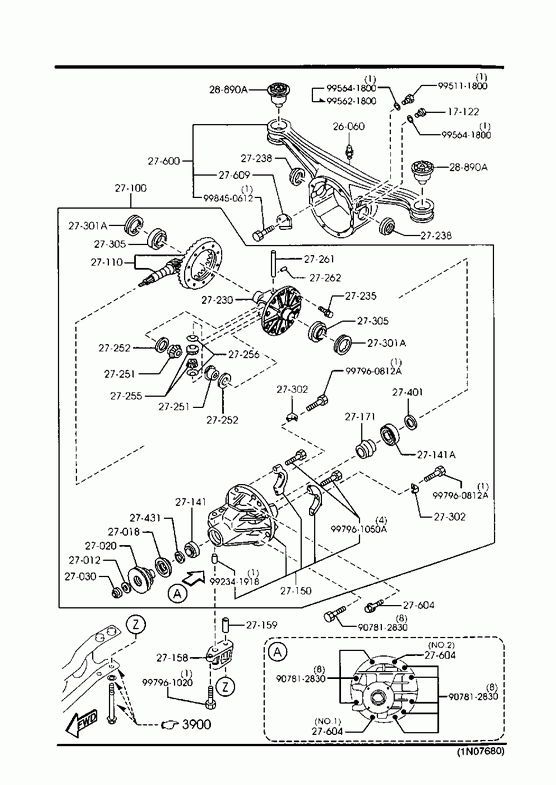

Rear Differentials(normal Diff.)

PLUG,MAGNET

Part Number	Qty.	Specifications	Price
081017121	1		€ 4,40

» 26060

BREATHER

Part Number	Qty.	Specifications	Price
073026060	1		€ 5,62

» 27012

WASHER

Part Number	Qty.	Specifications	Price
022327012	1		€ 4,04

» 27018

SEAL,OIL

Part Number	Qty.	Specifications	Price
MA0227165A	1		€ 9,09

» 27020

FLANGE,COMPANION

Part Number	Qty.	Specifications	Price
MA0227120A	1	- 980801 *NB182 -114358**	€ 95,68
MA0327120B	1	980801 - *NB182114358-**	€ 95,68

» 27030

NUT,LOCK

Part Number	Qty.	Specifications	Price
022327030	1		€ 3,76

» 27100

DRIVING & DIFF.

Part Number	Qty.	Specifications	Price
MA0227100	1	- 980801 *NB182 -114358**	€ 1026,30
MA0327100A	1	980801 - *NB182114358-**	€ 1026,30

» 27110

GEAR SET,FINAL

Part Number	Qty.	Specifications	Price
M06827110B	1	R=4.100	€ 432,17

» 27141

BEARING,PINION

Part Number	Qty.	Specifications	Price
075527210	1		€ 42,29

» 27141A

BEARING,PINION

Part Number	Qty.	Specifications	Price
M02527210	1		€ 40,74

» 27150

CARRIER,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
MA0227150A	1		€ 285,65

» 27158

SPACE

Part Number	Qty.	Specifications	Price
MA0227158	1		€ 25,20

» 27159

PIN,TUBULAR

Part Number	Qty.	Specifications	Price
MA0227159	1		€ 7,64

» 27171

PIECE,DISTANCE

Part Number	Qty.	Specifications	Price
M03527171	1		€ 10,94

» 27230

CASE,DIFF. GEAR

Part Number	Qty.	Specifications	Price
M06927231	1		€ 127,38

» 27235

BOLT,RING GEAR

Part Number	Qty.	Specifications	Price
805127235	10	D=10.2MM	€ 2,03
805127236	10	D=10.0MM	€ 2,05

» 27238

SEAL,OIL

Part Number	Qty.	Specifications	Price
MA0227238	2	AN (MA02-27-238A) - 981221 *NB182 -121084**	€ 8,41
MA0227238A	2	981221 - *NB182121084-**	€ 8,75

» 27251

GEAR,DIFF.SIDE

Part Number	Qty.	Specifications	Price
M06927251	2	AN (M069-27-251A)	€ 29,19

» 27252

WASHER,THRUST

Part Number	Qty.	Specifications	Price
029027252	2	T=2MM	€ 3,29
029027253	2	T=2.1MM	€ 3,64
029027254	2	T=2.2MM	€ 3,33
029027256	2	T=2.05MM	€ 4,66
029027259	2	T=2.15MM	€ 3,33

» 27255

PINION,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
M02527255C	2	A (M025-27-255D) - 980420 *NB182 -107343**	€ 27,87
M02527255D	2	AN (M025-27-255E) 980420 - *NB182107343-**	€ 27,87

» 27256

WASHER,THRUST

Part Number	Qty.	Specifications	Price
M02527256	2	T=2.0MM	€ 3,36

» 27261

SHAFT,DIFF. PINION

Part Number	Qty.	Specifications	Price
M02527261A	1		€ 11,74

» 27262

Part Number	Qty.	Specifications	Price
011427262	1		€ 1,96

» 27301A

SCREW,ADJUST

Part Number	Qty.	Specifications	Price
029027301	2		€ 4,85

» 27302

PLATE,LOCK

Part Number	Qty.	Specifications	Price
029027302	2		€ 1,83

» 27305

BEARING

Part Number	Qty.	Specifications	Price
022127350	2		€ 40,08

» 27401

SPACER

Part Number	Qty.	Specifications	Price
022327401A	1	T=3.08MM	€ 6,29
022327402A	1	T=3.11MM	€ 5,13
022327403A	1	T=3.14MM	€ 6,29
022327404A	1	T=3.17MM	€ 6,92
022327405A	1	T=3.2MM	€ 6,09
022327406A	1	T=3.23MM	€ 6,92
022327407A	1	T=3.26MM	€ 5,60
022327408A	1	T=3.29MM	€ 6,78
022327409A	1	T=3.32MM	€ 5,60
022327411A	1	T=3.35MM	€ 6,92
022327412A	1	T=3.38MM	€ 5,60
022327413A	1	T=3.41MM	€ 6,78
022327414A	1	T=3.44MM	€ 5,60
022327415A	1	T=3.47MM	€ 5,69
022327416	1	T=3.095MM	€ 6,71
022327417	1	T=3.125MM	€ 6,71
022327418	1	T=3.155MM	€ 6,71
022327419	1	T=3.185MM	€ 6,71
022327422	1	T=3.215MM	€ 6,71
022327423	1	T=3.245MM	€ 6,71
022327424	1	T=3.275MM	€ 6,71
022327425	1	T=3.305MM	€ 6,71
022327426	1	T=3.335MM	€ 6,71
022327427	1	T=3.365MM	€ 6,71
022327428	1	T=3.395MM	€ 6,71
022327433	1	T=3.425MM	€ 6,71
022327434	1	T=3.455MM	€ 6,58

» 27431

SPACER

Part Number	Qty.	Specifications	Price
PA0127431	1		€ 7,05

» 27600

CASING,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
MA0227600A	1		€ 1007,79

» 27604

BOLT

Part Number	Qty.	Specifications	Price
M05327604	1	ILLUST. NO.1	€ 4,14
M05327605	1	ILLUST. NO.2	€ 3,04

» 27609

PLATE,BAFFLE-DIFF CASING

Part Number	Qty.	Specifications	Price
M0A127609A	1		€ 2,11

» 28890A

RUBBER,SUB FRAME MTG

Part Number	Qty.	Specifications	Price
NA0128890	2		€ 61,02

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998450612	1		€ 2,32

» 90781

BOLT & WASHER

Part Number	Qty.	Specifications	Price
907812830	1		€ 2,06

» 99201

WASHER

Part Number	Qty.	Specifications	Price
995641800	1		€ 1,18

» 99234

PIN,TUBULAR

Part Number	Qty.	Specifications	Price
992341918	1		€ 2,74

» 99305

PLUG

Part Number	Qty.	Specifications	Price
995111800	1		€ 2,42

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995621800	1		€ 0,19

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960812A	1		€ 1,24

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961020	1		€ 2,43

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961050A	1		€ 2,57

Rear Differentials(normal Diff.)
