Mazda MX-5 NA 1994-12 Mazda Manual Transmission Gears

Mazda parts catalog

Parts > Mazda MX-5 > 1994-12 > Gasoline Engine 4-cylinder & Transmission > Manual Transmission Gears

Search by part number:

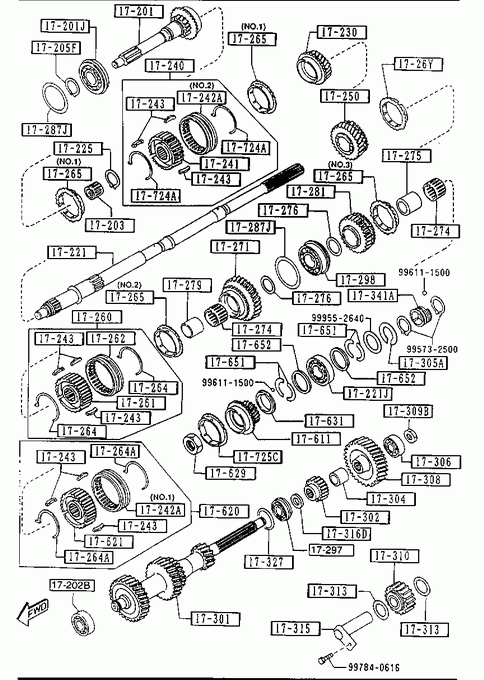

Manual Transmission Gears

GEAR,MAIN DRIVE

Part Number	Qty.	Specifications	Price
M51617201	1	AN (M516-17-201A)	€ 206,10

» 17201J

BEARING,BALL-MAIN DRIVE GEAR

Part Number	Qty.	Specifications	Price
M50217295C	1	KOYO	€ 34,28

» 17202B

BEARING,BALL

Part Number	Qty.	Specifications	Price
F52017171B	1	A (F520-17-171C) 970801 - NA18320557-**	€ 26,37
M50217297A	1	KOYO - 970801 NA18 -320557**	€ 29,35

» 17203

BEARING,NEEDLE

Part Number	Qty.	Specifications	Price
M50117210A	1		€ 10,29

» 17205F

RING,RETAINING

Part Number	Qty.	Specifications	Price
M50117205	1		€ 2,10

» 17221

SHAFT,MAIN

Part Number	Qty.	Specifications	Price
M50517221B	1	A (M505-17-221C)	€ 239,85

» 17221J

BEARING,BALL

Part Number	Qty.	Specifications	Price
9960663053	1		€ 30,08

» 17225

RING,SNAP

Part Number	Qty.	Specifications	Price
031717225	1		€ 2,16

» 17230

GEAR,3RD

Part Number	Qty.	Specifications	Price
M51317231B	1	AN (M513-17-231C) - 961201 NA18 -311820**	€ 129,86
M51317231C	1	961201 - NA18311820-**	€ 135,11

» 17240

HUB SET,CLUTCH-3RD & 4TH

Part Number	Qty.	Specifications	Price
M51717240	1		€ 161,10

» 17241

HUB,CLUTCH

Part Number	Qty.	Specifications	Price
M50117241C	1		€ 87,19

» 17242A

SLEEVE,CLUTCH HUB

Part Number	Qty.	Specifications	Price
F40117242A	1	ILLUST. NO.1	€ 43,46
M50217242	1	ILLUST. NO.2	€ 56,98

» 17243

KEY,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
F40117243A	9	AN (F401-17-243C) - 961001 NA18 -310556**	€ 3,12
F40117243C	9	961001 - NA18310556-**	€ 3,24

» 17250

GEAR,2ND

Part Number	Qty.	Specifications	Price
M52017251A	1		€ 126,17

» 17260

HUB SET,CLUTCH-1ST & 2ND

Part Number	Qty.	Specifications	Price
M51717260	1		€ 187,69

» 17261

HUB,CLUTCH

Part Number	Qty.	Specifications	Price
M51117261	1		€ 83,80

» 17262

SLEEVE,CLUTCH HUB

Part Number	Qty.	Specifications	Price
M50517262	1		€ 76,14

» 17264

SPRING,SYNCHRO. KEY

Part Number	Qty.	Specifications	Price
G40117264	2	A (G402-17-264)	€ 2,59

» 17264A

SPRING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
F40117264A	2	A (F402-17-264)	€ 2,70

» 17265

RING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
G50117265A	2	ILLUST. NO.1	€ 26,32
M50217265C	1	ILLUST. NO.2	€ 26,93
M50417265A	1	AN (M504-17-265B) ILLUST. NO.3	€ 20,15

» 1726Y

RING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
R5041726Y	1		€ 51,58

» 17271

GEAR,1ST

Part Number	Qty.	Specifications	Price
M51617271A	1		€ 153,62

» 17274

BEARING,NEEDLE

Part Number	Qty.	Specifications	Price
406917283A	2		€ 27,73

» 17275

RACE,INNER

Part Number	Qty.	Specifications	Price
406917284E	1		€ 35,57

» 17276

WASHER,THRUST

Part Number	Qty.	Specifications	Price
025917274A	2	T=3.0MM	€ 5,25
025917276	2	T=2.2MM	€ 5,08
025917277	2	T=2.7MM	€ 4,78
025917278	2	T=3.2MM	€ 4,78
025917279	2	T=3.7MM	€ 4,08

» 17279

SLEEVE,GEAR

Part Number	Qty.	Specifications	Price
854017275A	1		€ 25,44

» 17281

GEAR,REVERSE

Part Number	Qty.	Specifications	Price
M51317281	1	AN (M513-17-281A)	€ 114,07

» 17287J

SHIM,ADJUST

Part Number	Qty.	Specifications	Price
999636310	4	T=0.1MM 970721 - NA18320321-**	€ 1,62
999636315	1	T=0.15MM - 970721 NA18 -320321**	€ 1,84
999636330	3	T=0.3MM 970721 - NA18320321-**	€ 1,94

» 17297

BEARING,BALL-COUNTER SHAFT G.

Part Number	Qty.	Specifications	Price
M50617297	1	A (M503-17-297A) 950501 - *NA182205835-**	€ 54,13
R50217306A	1	FUJIKOSHI - 950501 *NA182 -205835**	€ 68,66

» 17298

BEARING

Part Number	Qty.	Specifications	Price
M50217298A	1		€ 34,55

» 17301

GEAR,COUNTER SHAFT

Part Number	Qty.	Specifications	Price
M52817301A	1		€ 353,79

» 17302

GEAR,COUNTER REVERSE

Part Number	Qty.	Specifications	Price
M51617302	1		€ 39,68

» 17304

SPACER

Part Number	Qty.	Specifications	Price
M50417304	1		€ 5,14

» 17305A

RING,RETAINING-BALL BEARING

Part Number	Qty.	Specifications	Price
083917305B	1	A (0839-17-305C)	€ 2,78

» 17306

BEARING,BALL

Part Number	Qty.	Specifications	Price
M50217299B	1	KOYO 970820 - NA18320657-**	€ 22,52
P50217204	1	- 970820 NA18 -320657**	€ 21,45

» 17308

GEAR,COUNTER-5TH

Part Number	Qty.	Specifications	Price
M51017308	1		€ 126,91

» 17309B

NUT,LOCK-COUNTER SHAFT BR

Part Number	Qty.	Specifications	Price
M50117309	1		€ 9,13

» 17310

GEAR,REVERSE IDLE

Part Number	Qty.	Specifications	Price
M51317310	1	AN (M513-17-310A) - 970501 NA18 -317714**	€ 95,58
M51317310A	1	AN (M513-17-310B) 970501 - NA18317714-**	€ 95,58

» 17313

WASHER,THRUST-REVERSE IDLE G.

Part Number	Qty.	Specifications	Price
M50117313	2	T=2.0MM	€ 3,21

» 17315

SHAFT,REV. IDLE GEAR

Part Number	Qty.	Specifications	Price
M50117140	1		€ 11,45

» 17316D

SPACER

Part Number	Qty.	Specifications	Price
R50217316	1	- 950501 *NA182 -205835**	€ 6,73

» 17327

SHIM,ADJUST-COUNTER SHAFT GEAR

Part Number	Qty.	Specifications	Price
030517327	2	T=0.1MM	€ 2,03
030517328	2	T=0.3MM 970721 - NA18320321-**	€ 2,43

» 17341A

GEAR,SPEEDO.DRIVE

Part Number	Qty.	Specifications	Price
M50317341	1	A (M503-17-341A) - 970201 NA18 -313606**	€ 23,37
M50317341A	1	970201 - NA18313606-**	€ 24,32

» 17341J

BALL,STEEL

Part Number	Qty.	Specifications	Price
996111500	1		€ 1,93

» 17611

GEAR,OVER TOP

Part Number	Qty.	Specifications	Price
M51717611	1		€ 180,29

» 17620

HUB,CLUTCH-5TH & REV.

Part Number	Qty.	Specifications	Price
M50517620	1	A (M505-17-620B)	€ 117,92

» 17621

HUB,CLUTCH

Part Number	Qty.	Specifications	Price
M50517621	1	AN (M505-17-621A)	€ 59,37

» 17629

NUT,LOCK-CLUTCH HUB

Part Number	Qty.	Specifications	Price
860117629	1		€ 18,58

» 17631

WASHER,THRUST LOCK-OVER TOP G.

Part Number	Qty.	Specifications	Price
088417632B	1	T=6.2MM	€ 9,28
088417633B	1	T=6.4MM	€ 8,35
088417634B	1	T=6.5MM	€ 8,35
088417635B	1	T=6.6MM	€ 9,64

» 17651

WASHER,THRUST

Part Number	Qty.	Specifications	Price
M50117651	4	T=3.0MM	€ 7,06
M50117653	2	T=3.1MM	€ 6,78
M50117654	2	T=3.2MM	€ 7,06
M50117655	2	T=2.9MM	€ 7,06

» 17652

WASHER,THRUST LOCK

Part Number	Qty.	Specifications	Price
M50117652	2	T=2.0MM	€ 1,83

» 17724A

SPRING,SYNCHRO.KEY

Part Number	Qty.	Specifications	Price
W50117724	2		€ 2,28

» 17725C

RING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
V50117725	1		€ 18,74

» 99571

RING,SNAP

Part Number	Qty.	Specifications	Price
995732500	1		€ 2,20

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997840616	1		€ 1,50

» 99955

WASHER,ADJUST

Part Number	Qty.	Specifications	Price
999552640	1		€ 3,45
