Mazda MX-5 NA 1989-08 Mazda Dashboard & Related Parts

Mazda parts catalog

Parts > Mazda MX-5 > 1989-08 > Body Dashboard & Air Con. > Dashboard & Related Parts

Search by part number:

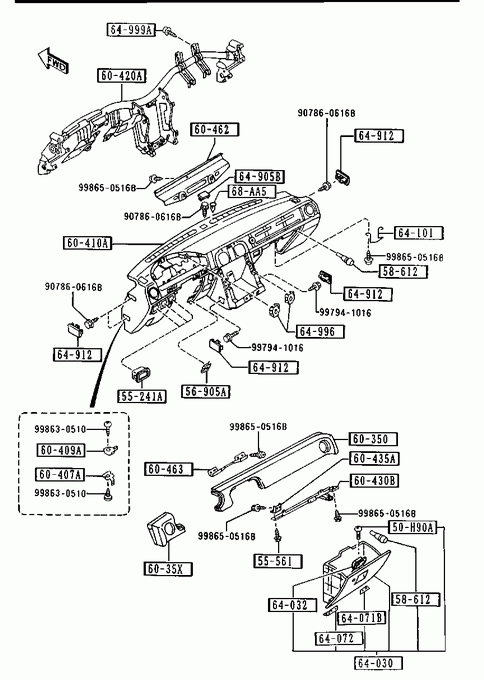

Dashboard & Related Parts

SCREW,MOULD-FRT WIND.

Part Number	Qty.	Specifications	Price
LA0150H90	1		€ 1,39

» 55241A

BOX,INSTRUMENT PANEL

Part Number	Qty.	Specifications	Price
NA0155241A	3

» 55561

BOLT,INST. PANEL

Part Number	Qty.	Specifications	Price
B45555561	1		€ 0,88

» 56905A

NUT,SPRING

Part Number	Qty.	Specifications	Price
B09260408	4		€ 0,41

» 58612

CUSHION,RUBBER

Part Number	Qty.	Specifications	Price
B09264046	3	900801 - NA109054-	€ 0,99

» 60350

PAD,CRASH

Part Number	Qty.	Specifications	Price
NA0160350	1

» 6035X

PAD,INSTRUMENT PANEL

Part Number	Qty.	Specifications	Price
NA016035X	1

» 60407A

SPRING,NO.1

Part Number	Qty.	Specifications	Price
NA0160407	2

» 60409A

SPRING,NO.2

Part Number	Qty.	Specifications	Price
NA0160409	2

» 60410A

PANEL,INSTRUMENT

Part Number	Qty.	Specifications	Price
NA0160401B	1	A (NA01-60-401C) - 891107 NA -100787
NA0160401C	1	A (NA01-60-401D) 891107 - 900927 NA100787-110536
NA0160401D	1	900927 - 910101 NA110536-116751
NA0260401	1	PROTAIN COAT,BLACK/TAN 910101 - NA116751-

» 60420A

FRAME,INST.PANEL

Part Number	Qty.	Specifications	Price
NA0760420C	1		€ 235,98

» 60430B

MEMBER(R),INST. PANEL

Part Number	Qty.	Specifications	Price
NA0160430B	1	A (NA01-60-430C) - 900202 NA -102457	€ 8,05
NA0160430C	1	AN (NA01-60-430D) 900202 - NA102457-	€ 8,05

» 60435A

BRACKET,MEMBER

Part Number	Qty.	Specifications	Price
NA0160435	1

» 60462

BRACKET,INST. PANEL

Part Number	Qty.	Specifications	Price
NA0160462A	1

» 60463

BRACKET,CRASH PAD

Part Number	Qty.	Specifications	Price
NA0160463	1		€ 3,29

» 64030

BOX,GLOVE

Part Number	Qty.	Specifications	Price
NA0164030D	1	- 900820 NA -109358
NA0164030E	1	900820 - NA109358-

» 64032

COVER,BOX

Part Number	Qty.	Specifications	Price
NA0164032B	1	- 900820 NA -109358
NA0164032C	1	900820 - NA109358-

» 64071B

HINGE(R),GLOVE LID

Part Number	Qty.	Specifications	Price
NA016403X	1		€ 14,54

» 64072

HINGE(L),GLOVE LID

Part Number	Qty.	Specifications	Price
NA016403Y	1		€ 11,24

» 64101

STRIKER

Part Number	Qty.	Specifications	Price
NA0164101	1		€ 3,83

» 64905B

COVER,HOLE-(C)

Part Number	Qty.	Specifications	Price
N00264905	1	PROTAIN COAT,BLACK/TAN 900801 - NA109054-
NA0164905	1	STD COAT,BLACK/BLACK

» 64912

COVER,SIDE

Part Number	Qty.	Specifications	Price
NA0164912	6

» 64996

NUT,EXPANSION

Part Number	Qty.	Specifications	Price
GJ2164996	8		€ 0,51

» 64999A

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
W20164999	37		€ 0,90

» 68AA5

FASTENER,DOOR TRIM

Part Number	Qty.	Specifications	Price
W20168AA5	4	AN (W201-68-AA5A) - 910801 NA -124202
W20168AA5A	4	910801 - NA124202-

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860616B	1		€ 2,10

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998630510	1		€ 0,32

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998650516B	1		€ 0,52

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997941016	1		€ 2,44
