Mazda MX-5 NA 1989-08 Mazda Rear Differentials

Mazda parts catalog

Parts > Mazda MX-5 > 1989-08 > Chassis Axle Suspension & Brake & Steering > Rear Differentials(normal Diff.)

Search by part number:

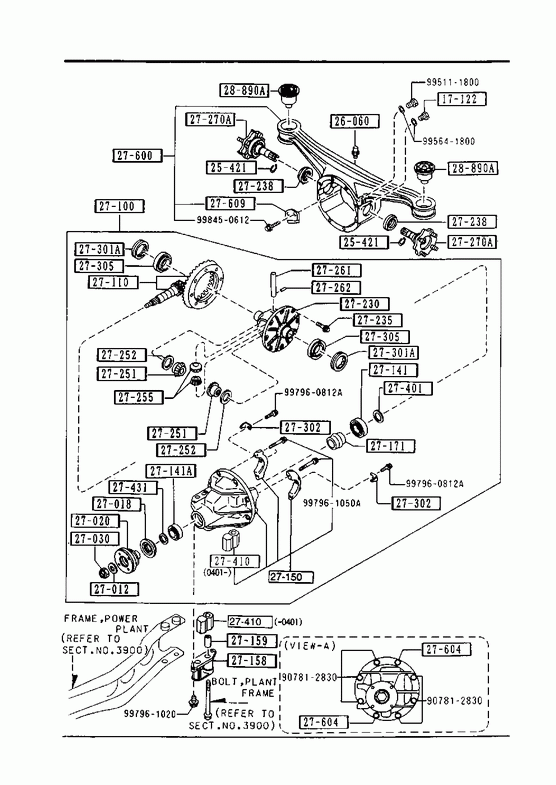

Rear Differentials(normal Diff.)

PLUG,MAGNET

Part Number	Qty.	Specifications	Price
081017121	1		€ 4,40

» 25421

CLIP

Part Number	Qty.	Specifications	Price
F00125421A	2	- 920301 NA -126886	€ 1,45
F00225421	2	920301 - NA126886-	€ 1,57

» 26060

BREATHER

Part Number	Qty.	Specifications	Price
073026060	1		€ 5,62

» 27012

WASHER

Part Number	Qty.	Specifications	Price
391927012	1		€ 3,34

» 27018

SEAL,OIL

Part Number	Qty.	Specifications	Price
T02027165	1		€ 11,11

» 27020

FLANGE,COMPANION

Part Number	Qty.	Specifications	Price
T00227120B	1		€ 22,99

» 27030

NUT,LOCK

Part Number	Qty.	Specifications	Price
391927130	1		€ 2,06

» 27100

DRIVING & DIFF.

Part Number	Qty.	Specifications	Price
T02027100K	1	C (T020-27-100L) - 920301 NA -126886	€ 864,83
T02027100L	1	AN (T020-27-100M) 920301 - NA126886-	€ 864,83

» 27110

GEAR SET,FINAL

Part Number	Qty.	Specifications	Price
T02027110B	1	R=4.300 - 920301 NA -126886	€ 459,57
T02027110C	1	R=4.300 920301 - NA126886-	€ 459,57

» 27141

BEARING,PINION

Part Number	Qty.	Specifications	Price
075527210	1		€ 42,29

» 27141A

BEARING,PINION

Part Number	Qty.	Specifications	Price
391927220	1	NTN MAKE	€ 34,63

» 27150

CARRIER,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
T02027150D	1	A (T020-27-150E) - 920301 NA -126886	€ 202,24
T02027150E	1	920301 - NA126886-	€ 210,41

» 27158

SPACE

Part Number	Qty.	Specifications	Price
T02027158A	1	AN (MA02-27-158)	€ 23,98

» 27159

PIN,TUBULAR

Part Number	Qty.	Specifications	Price
T02027159A	1		€ 4,96

» 27171

PIECE,DISTANCE

Part Number	Qty.	Specifications	Price
T02027171	1		€ 7,50

» 27230

CASE,DIFF. GEAR

Part Number	Qty.	Specifications	Price
T00527231	1		€ 156,68

» 27235

BOLT,RING GEAR

Part Number	Qty.	Specifications	Price
391927235	8	D=10.2MM
391927236	8	D=10.0MM

» 27238

SEAL,OIL

Part Number	Qty.	Specifications	Price
T02027238	2		€ 19,47

» 27251

GEAR,DIFF.SIDE

Part Number	Qty.	Specifications	Price
F03527251	2		€ 36,09

» 27252

WASHER,THRUST

Part Number	Qty.	Specifications	Price
F00127252	2	T=2.0MM	€ 2,14
F00127253	2	T=2.1MM	€ 2,12
F00127254	2	T=2.2MM	€ 2,16

» 27255

PINION,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
T02027255	2	AN (T020-27-255A) - 910501 NA -122440	€ 23,32
T02027255A	2	A (T020-27-255B) 910501 - NA122440-	€ 23,32

» 27261

SHAFT,DIFF. PINION

Part Number	Qty.	Specifications	Price
F00127261A	1		€ 7,47

» 27262

Part Number	Qty.	Specifications	Price
011427262	1		€ 1,96

» 27270A

SHAFT,OUTPUT

Part Number	Qty.	Specifications	Price
T00527270B	2	- 920301 NA -126886	€ 84,23
T00527270C	2	AN (TA01-27-270) 920301 - NA126886-	€ 75,06

» 27301A

SCREW,ADJUST

Part Number	Qty.	Specifications	Price
018027301A	2	AN (0180-27-301B)	€ 3,50

» 27302

PLATE,LOCK

Part Number	Qty.	Specifications	Price
029027302	2		€ 1,83

» 27305

BEARING

Part Number	Qty.	Specifications	Price
024927350	2		€ 45,62

» 27401

SPACER

Part Number	Qty.	Specifications	Price
025927401	1	T=3.08MM - 920301 NA -126886	€ 3,10
025927402	1	T=3.11MM - 920301 NA -126886	€ 3,37
025927403	1	T=3.14MM - 920301 NA -126886	€ 3,41
025927404	1	T=3.17MM - 920301 NA -126886	€ 3,10
025927405	1	T=3.2MM - 920301 NA -126886
025927406	1	T=3.23MM - 920301 NA -126886	€ 3,41
025927407	1	T=3.26MM - 920301 NA -126886	€ 2,49
025927408	1	T=3.29MM - 920301 NA -126886
025927409	1	T=3.32MM - 920301 NA -126886	€ 3,24
025927411	1	T=3.35MM - 920301 NA -126886	€ 2,98
025927412	1	T=3.38MM - 920301 NA -126886	€ 2,98
025927413	1	T=3.41MM - 920301 NA -126886	€ 2,98
025927414	1	T=3.44MM - 920301 NA -126886
025927415	1	T=3.47MM - 920301 NA -126886	€ 5,60
T00627401	1	T=2.08MM 920301 - NA126886-	€ 5,65
T00627402	1	T=2.11MM 920301 - NA126886-
T00627403	1	T=2.14MM 920301 - NA126886-
T00627404	1	T=2.17MM 920301 - NA126886-	€ 5,65
T00627405	1	T=2.2MM 920301 - NA126886-
T00627406	1	T=2.23MM 920301 - NA126886-
T00627407	1	T=2.26MM 920301 - NA126886-
T00627408	1	T=2.29MM 920301 - NA126886-	€ 5,65
T00627409	1	T=2.32MM 920301 - NA126886-	€ 5,65
T00627411	1	T=2.35MM 920301 - NA126886-
T00627412	1	T=2.38MM 920301 - NA126886-
T00627413	1	T=2.41MM 920301 - NA126886-
T00627414	1	T=2.44MM 920301 - NA126886-
T00627415	1	T=2.47MM 920301 - NA126886-	€ 5,65

» 27410

SPACER

Part Number	Qty.	Specifications	Price
T02027401A	1	L=50.850 - 900401 NA -104668	€ 24,17
T02027402A	1	L=50.875 - 900401 NA -104668	€ 24,17
T02027403A	1	L=50.900 - 900401 NA -104668	€ 24,17
T02027404A	1	L=50.925 - 900401 NA -104668	€ 24,17
T02027405A	1	L=50.950 - 900401 NA -104668	€ 24,17
T02027406A	1	L=50.975 - 900401 NA -104668	€ 24,17
T02027407A	1	L=51.000 - 900401 NA -104668	€ 24,17
T02027408A	1	L=51.025 - 900401 NA -104668	€ 24,17
T02027409A	1	L=51.050 - 900401 NA -104668	€ 24,17
T02027410	1	L=50.850 900401 - NA104668-
T02127410	1	L=50.875 900401 - NA104668-
T02227410	1	L=50.900 900401 - NA104668-
T02327410	1	L=50.925 900401 - NA104668-
T02427410	1	L=50.950 900401 - NA104668-	€ 24,17
T02527410	1	L=50.975 900401 - NA104668-
T02627410	1	L=51.000 900401 - NA104668-
T02727410	1	L=51.025 900401 - NA104668-
T02827410	1	L=51.050 900401 - NA104668-

» 27431

SPACER

Part Number	Qty.	Specifications	Price
T00127431	1	- 920301 NA -126886	€ 12,61
T00127431A	1	AN (TA01-27-431) 920301 - NA126886-

» 27600

CASING,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
T02027600F	1	A (T020-27-600G) - 920301 NA -126886	€ 798,83
T02027600G	1	920301 - NA126886-	€ 831,11

» 27604

BOLT

Part Number	Qty.	Specifications	Price
G0A027604A	2		€ 1,22

» 27609

PLATE,BAFFLE-DIFF CASING

Part Number	Qty.	Specifications	Price
M0A127609A	1	- 900801 NA -109054	€ 2,11
T02527609	1	900801 - NA109054-	€ 1,84

» 28890A

RUBBER,SUB FRAME MTG

Part Number	Qty.	Specifications	Price
NA0128890	2		€ 61,02

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998450612	1		€ 2,32

» 90781

BOLT & WASHER

Part Number	Qty.	Specifications	Price
907812830	1		€ 2,06

» 99201

WASHER

Part Number	Qty.	Specifications	Price
995641800	1		€ 1,18

» 99305

PLUG

Part Number	Qty.	Specifications	Price
995111800	1		€ 2,42

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960812A	1		€ 1,24

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961020	1		€ 2,43

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961050A	1		€ 2,57

Rear Differentials(normal Diff.)
