Mazda MX-5 NA 1989-08 Mazda Cooling System

Mazda parts catalog

Parts > Mazda MX-5 > 1989-08 > Gasoline-engine Supplement > Cooling System

Search by part number:

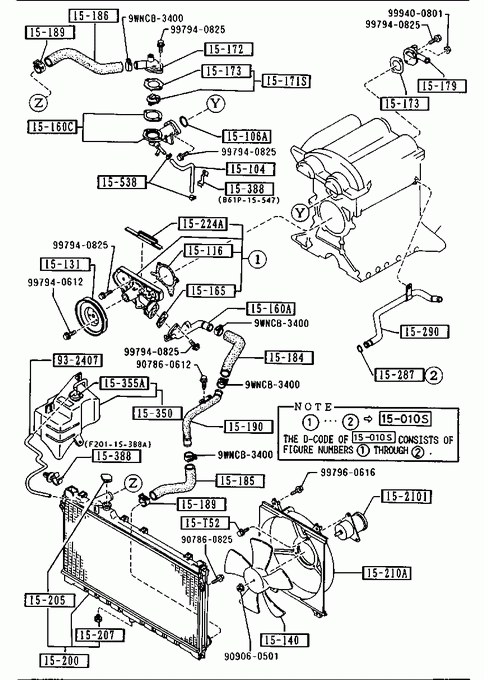

Cooling System

PUMP SET,WATER

Part Number	Qty.	Specifications	Price
8AB815010	1	NON ASBESTOS	€ 91,60

» 15104

HOSE,WATER BY-PASS

Part Number	Qty.	Specifications	Price
B61P15261A	1		€ 7,88

» 15106A

RING,'O'-WATER PUMP

Part Number	Qty.	Specifications	Price
B61P15106	1	AN (B61P-15-106A)	€ 2,62

» 15116

GASKET,WATER PUMP

Part Number	Qty.	Specifications	Price
B62115116A	1	NON ASBESTOS 900101 - NA100939-	€ 4,23
B63015116A	1	ASBESTOS - 900101 NA -100939	€ 4,23

» 15131

PULLEY,WATER PUMP

Part Number	Qty.	Specifications	Price
B36615131A	1		€ 18,75

» 15140

FAN,COOLING

Part Number	Qty.	Specifications	Price
B61P15140	1	- 910301 NA -120720	€ 33,96
B61P15140A	1	910301 - NA120720-	€ 33,96

» 15160A

INLET,WATER PUMP

Part Number	Qty.	Specifications	Price
B61P15160	1		€ 100,91

» 15160C

PIPE,WATER PUMP

Part Number	Qty.	Specifications	Price
B61P15170B	1		€ 56,80

» 15165

GASKET,W.PUMP INLET

Part Number	Qty.	Specifications	Price
B36615165	1	A (B621-15-165) 920101 - NA125190-	€ 3,96
B62115165	1	NON ASBESTOS 900101 - 920101 NA100939-125190	€ 2,90
F80115165A	1	ASBESTOS - 900101 NA -100939	€ 2,90

» 15171S

THERMOSTAT SET

Part Number	Qty.	Specifications	Price
8AB715171	1	NON ASBESTOS 900101 - NA100939-	€ 20,96
HE4199152D	1	ASBESTOS - 900101 NA -100939	€ 20,96

» 15172

COVER,THERMOSTAT

Part Number	Qty.	Specifications	Price
B61P15172	1		€ 15,84

» 15173

GASKET,THERMOSTAT COVER

Part Number	Qty.	Specifications	Price
032415173	2	ASBESTOS - 900101 NA -100939	€ 4,85
B36615173	2	AN (B621-15-173) 920210 - NA126183-	€ 4,85
B62115173	2	NON ASBESTOS 900101 - 920210 NA100939-126183	€ 5,10

» 15179

OUTLET,WATER PUMP

Part Number	Qty.	Specifications	Price
B61P15179A	1		€ 18,63

» 15184

HOSE,WATER

Part Number	Qty.	Specifications	Price
B61P15184	1		€ 18,11

» 15185

HOSE,WATER

Part Number	Qty.	Specifications	Price
B61P15185	1		€ 13,87

» 15186

HOSE,WATER

Part Number	Qty.	Specifications	Price
B61P15186	1		€ 14,83

» 15189

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
B36615182	2		€ 3,79

» 15190

PIPE,WATER

Part Number	Qty.	Specifications	Price
B61P15190	1		€ 32,99

» 15200

RADIATOR

Part Number	Qty.	Specifications	Price
B61P15200	1	CALSONIC - 900710 NA -108385	€ 315,49
B61P15200A	1	CALSONIC 900710 - 910220 NA108385-120158
B61P15200B	1	CALSONIC 910220 - NA120158-	€ 315,49

» 15205

CAP,RADIATOR

Part Number	Qty.	Specifications	Price
D31615205	1	CALSONIC	€ 14,93

» 15207

COCK,DRAIN

Part Number	Qty.	Specifications	Price
N32615203	1		€ 7,61

» 152101

FAN DRIVE

Part Number	Qty.	Specifications	Price
B61P15150A	1	A (BPE8-15-150) - 910301 NA -120720	€ 201,51
B61P15150B	1	A (BPE8-15-150) 910301 - NA120720-	€ 201,51

» 15210A

COWLING,RADIATOR

Part Number	Qty.	Specifications	Price
B61P15210A	1	- 910301 NA -120720	€ 65,47
B61P15210B	1	910301 - NA120720-	€ 68,12

» 15224A

RUBBER,SEAL

Part Number	Qty.	Specifications	Price
B66010543B	1		€ 8,37

» 15287

RING,'O'-WATER BYPASS

Part Number	Qty.	Specifications	Price
E30115287	1		€ 1,97

» 15290

PIPE,BYPASS

Part Number	Qty.	Specifications	Price
B61P15290	1	AN (B61P-15-290A) - 891001 NA -100461
B61P15290A	1	AN (B61P-15-290B) 891001 - 900301 NA100461-103411	€ 24,88
B61P15290B	1	900301 - NA103411-	€ 25,89

» 15350

TANK,SUB-RADIATOR

Part Number	Qty.	Specifications	Price
B61P15350C	1	A (B61P-15-350D) - 920501 NA -129066	€ 38,17
B61P15350D	1	920501 - NA129066-	€ 39,71

» 15355A

CAP,SUB TANK

Part Number	Qty.	Specifications	Price
B61P15355A	1		€ 11,34

» 15388

CLIP,HOSE

Part Number	Qty.	Specifications	Price
B61P15547	1		€ 4,93
F20115388A	1		€ 1,86

» 15538

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
JF0215538	2		€ 2,51

» 15T52

SCREW

Part Number	Qty.	Specifications	Price
B6S815T52	3		€ 1,26

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860612	1		€ 1,60

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860825	1		€ 2,61

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
909060501	1		€ 0,51

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400801	1		€ 1,64

» 932407

HOSE,WATER

Part Number	Qty.	Specifications	Price
9932407610	1		€ 4,70

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
9WNCB3400	1		€ 4,02

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940612	1		€ 0,87

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940825	1		€ 1,57

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960616	1		€ 0,81
