Front Seats 01/03 (MATERIAL) 02/03 (RIGHT) 03/03 (LEFT)

Front Seats |

Mazda parts catalog

Parts > Mazda MX-3 > 1993-11 > Body Interior Trim > Front Seats

Search by part number:

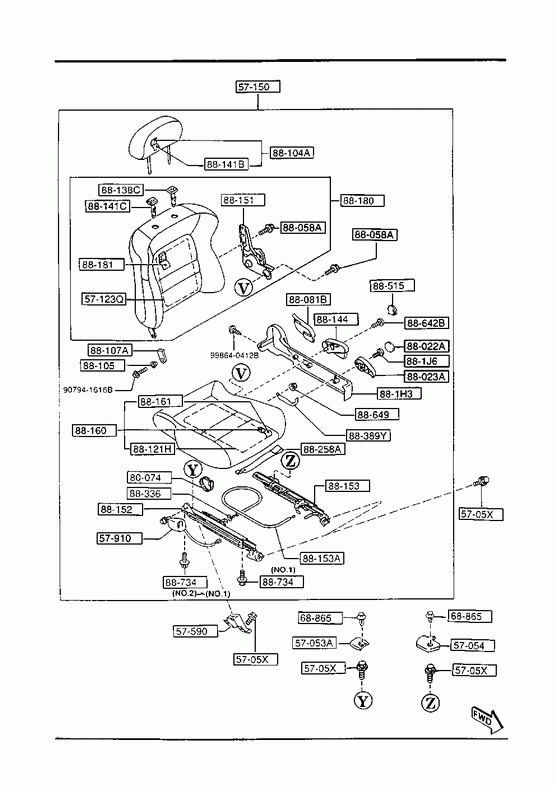

Front Seats

01/03 (MATERIAL)
02/03 (RIGHT)
03/03 (LEFT)

COVER'C',ADJUSTER-RR

Part Number	Qty.	Specifications	Price
B45557053C	1		€ 2,39

» 57054

COVER'D',ADJUSTER-RR

Part Number	Qty.	Specifications	Price
B48157054B	1		€ 3,74

» 5705X

BOLT,LINK

Part Number	Qty.	Specifications	Price
B4555705XA	12	A (B455-57-05XB) - 960301 EC1* -211418**	€ 1,63
B4555705XB	12	960301 - EC1211418-*	€ 1,96

» 57123Q

HEATER NO.2(L),SEAT

Part Number	Qty.	Specifications	Price
B53288123	1	STC TYPE - 950801 EC1* -209271**	€ 123,51
BC6B88172	1	STC TYPE 950801 - EC1209271-*	€ 123,51

» 57150

SEAT(L),FRONT

Part Number	Qty.	Specifications	Price
EA9057150A	1	A (EA90-57-150B) STB TYPE - 940101 EC1* -201041**
EA9057150B	1	STB TYPE 940101 - 950301 EC1201041-207146*
EA9057150C	1	STB TYPE 950301 - 950401 EC1207146-207388*
EA9057150F	1	STB TYPE 950401 - 950801 EC1207388-209271*
EA9057150H	1	STB TYPE 950801 - 951001 EC1209271-209603*
EA9057150J	1	STB TYPE 951001 - 960724 EC1209603-213422*
EA9057150L	1	STB TYPE 960724 - 961001 EC1213422-214158*
EA9057150M	1	STB TYPE 961001 - 970401 EC1214158-216722*
EA9057150N	1	STB TYPE 970401 - 970501 EC1216722-217510*
EA9057150P	1	STB TYPE 970501 - 970701 EC1217510-218265*
EA9057150S	1	STB TYPE 970701 - EC1218265-*
EA9157150A	1	A (EA91-57-150B) STC TYPE - 940101 EC1* -201041**
EA9157150B	1	STC TYPE 940101 - 940901 EC1201041-205097*
EA9157150C	1	STC TYPE 940901 - 950301 EC1205097-207146*
EA9157150D	1	STC TYPE 950301 - 950401 EC1207146-207388*
EA9157150G	1	STC TYPE 950401 - 950801 EC1207388-209271*
EA9157150K	1	STC TYPE 950801 - 951001 EC1209271-209603*
EA9157150L	1	STC TYPE 951001 - 960724 EC1209603-213422*
EA9157150N	1	STC TYPE 960724 - 961001 EC1213422-214158*
EA9157150P	1	STC TYPE 961001 - 970401 EC1214158-216722*
EA9157150R	1	STC TYPE 970401 - 970501 EC1216722-217510*
EA9157150S	1	STC TYPE 970501 - 970701 EC1217510-218265*
EA9157150U	1	STC TYPE 970701 - EC1218265-*
EA9257150A	1	A (EA92-57-150B) STD TYPE - 940101 EC1* -201041**
EA9257150B	1	STD TYPE 940101 - 950301 EC1201041-207146*
EA9257150C	1	STD TYPE 950301 - 950401 EC1207146-207388*
EA9257150F	1	STD TYPE 950401 - 950801 EC1207388-209271*
EA9257150H	1	STD TYPE 950801 - 951001 EC1209271-209603*
EA9257150J	1	STD TYPE 951001 - 960724 EC1209603-213422*
EA9257150L	1	STD TYPE 960724 - 961001 EC1213422-214158*
EA9257150M	1	STD TYPE 961001 - 970401 EC1214158-216722*
EA9257150N	1	STD TYPE 970401 - 970501 EC1216722-217510*
EA9257150P	1	STD TYPE 970501 - 970701 EC1217510-218265*
EA9257150S	1	STD TYPE 970701 - EC1218265-*
EB1357150	1	A (EB13-57-150A) STH TYPE - 940101 EC1* -201041**
EB1357150B	1	STH TYPE 940101 - 950301 EC1201041-207146*
EB1357150C	1	STH TYPE 950301 - 950401 EC1207146-207388*
EB1357150F	1	STH TYPE 950401 - 950801 EC1207388-209271*
EB1357150H	1	STH TYPE 950801 - 951001 EC1209271-209603*
EB1357150J	1	STH TYPE 951001 - 960724 EC1209603-213422*
EB1357150L	1	STH TYPE 960724 - 961001 EC1213422-214158*
EB1357150M	1	STH TYPE 961001 - 970401 EC1214158-216722*
EB1357150N	1	STH TYPE 970401 - 970501 EC1216722-217510*
EB1357150P	1	STH TYPE 970501 - 970701 EC1217510-218265*
EB1357150S	1	STH TYPE 970701 - EC1218265-*

» 57590

BRACKET(L),FRT SEAT

Part Number	Qty.	Specifications	Price
B45557590A	1		€ 6,96

» 57910

BELT,FRONT SEAT

Part Number	Qty.	Specifications	Price
E04057680A	2		€ 36,63

» 68865

FASTENER

Part Number	Qty.	Specifications	Price
B04068865A	4

» 80074

BAND

Part Number	Qty.	Specifications	Price
396688116	9	STC TYPE	€ 1,13

» 88022A

CAP,TILT KNOB

Part Number	Qty.	Specifications	Price
BC1M881F6	1

» 88023A

KNOB,TILT

Part Number	Qty.	Specifications	Price
BC1M881H6	1

» 88058A

BOLT

Part Number	Qty.	Specifications	Price
B45688815	8	- 970106 EC1* -215396**	€ 1,64
LB8288061	8	970106 - EC1215396-*	€ 0,89

» 88081B

KNOB(L),KNUCKLE

Part Number	Qty.	Specifications	Price
BC1M881H5	1

» 88104A

RESTRAINT,HEAD

Part Number	Qty.	Specifications	Price
E04088140A	1	FOR RIGHT SIDE 941101 - 950401 EC1206070-207388*
E04088140B	1	FOR RIGHT SIDE 950401 - EC1207388-*
EA9088190	2	- 941101 EC1* -206070**
EA9088190A	1	FOR LEFT SIDE 950401 - EC1207388-*

» 88105

BUSH

Part Number	Qty.	Specifications	Price
B45588105	2		€ 2,20

» 88107A

COVER,HINGE

Part Number	Qty.	Specifications	Price
B45588027	2		€ 1,32

» 88121H

HEATER,SEAT CUSHION

Part Number	Qty.	Specifications	Price
BC5E88121	1	STC TYPE 950801 - EC1209271-*	€ 114,55
EA9188121	1	STC TYPE - 950801 EC1* -209271**	€ 114,55

» 88138C

GUIDE,POLE-NO.2

Part Number	Qty.	Specifications	Price
B45588995	2

» 88141B

TRIM,HEAD REST-FRT

Part Number	Qty.	Specifications	Price
E04088141A	1	FOR RIGHT SIDE 941101 - 950401 EC1206070-207388*
E04088141B	1	FOR RIGHT SIDE 950401 - EC1207388-*
EA9088191	2	- 941101 EC1* -206070**
EA9088191A	1	FOR LEFT SIDE 950401 - EC1207388-*

» 88141C

GUIDE,POLE-NO.1

Part Number	Qty.	Specifications	Price
B59688945	2

» 88144

LEVER,LIFTER

Part Number	Qty.	Specifications	Price
BC1M88857	1	- 950301 EC1* -207146**
BC1M88857A	1	950301 - 970701 EC1207146-218265*
BC1M88857C	1	970701 - EC1218265-*

» 88151

KNUCKLE(L),RECLINING

Part Number	Qty.	Specifications	Price
B45588151	1	950106 - EC1206784-*	€ 82,83
E01988151	1	- 950106 EC1* -206784**	€ 78,84

» 88152

ADJUSTER NO.3

Part Number	Qty.	Specifications	Price
E04088152	1	A (E040-88-152A) STB TYPE STC TYPE STH TYPE - 951001 EC1* -209603**	€ 72,02
E04088152A	1	STB TYPE STC TYPE STH TYPE 951001 - EC1209603-*	€ 75,69
EA9288152	1	A (EA92-88-152A) STD TYPE - 951001 EC1* -209603**
EA9288152A	1	STD TYPE 951001 - EC1209603-*

» 88153

ADJUSTER NO.4

Part Number	Qty.	Specifications	Price
E04088153	1	A (E040-88-153A) STB TYPE STC TYPE STH TYPE - 951001 EC1* -209603**	€ 95,66
E04088153A	1	A (E040-88-153B) STB TYPE STC TYPE STH TYPE 951001 - 960724 EC1209603-213422*
E04088153C	1	A (E040-88-153D) STB TYPE STC TYPE STH TYPE 960724 - 970401 EC1213422-216722*	€ 95,66
E04088153D	1	STB TYPE STC TYPE STH TYPE 970401 - EC1216722-*	€ 100,52
EA9288153	1	A (EA92-88-153A) STD TYPE - 951001 EC1* -209603**
EA9288153A	1	A (EA92-88-153B) STD TYPE 951001 - 960724 EC1209603-213422*
EA9288153C	1	A (EA92-88-153D) STD TYPE 960724 - 970401 EC1213422-216722*
EA9288153D	1	STD TYPE 970401 - EC1216722-*

» 88153A

CABLE

Part Number	Qty.	Specifications	Price
B01E88109	2	A (B01E-88-109A) - 961001 EC1* -214158**	€ 15,68
B01E88109A	2	961001 - EC1214158-*	€ 16,48

» 88160

CUSHION(L),FRT SEAT

Part Number	Qty.	Specifications	Price
EA9088160	1	STB TYPE STD TYPE - 950401 EC1* -207388**
EA9088160B	1	STB TYPE STD TYPE 950401 - 970701 EC1207388-218265*
EA9088160D	1	STB TYPE STD TYPE 970701 - EC1218265-*
EA9188160	1	STC TYPE - 950401 EC1* -207388**
EA9188160B	1	STC TYPE 950401 - 950801 EC1207388-209271*
EA9188160C	1	STC TYPE 950801 - 970701 EC1209271-218265*
EA9188160E	1	STC TYPE 970701 - EC1218265-*
EB1388160	1	STH TYPE - 950401 EC1* -207388**
EB1388160B	1	STH TYPE 950401 - 970701 EC1207388-218265*
EB1388160D	1	STH TYPE 970701 - EC1218265-*

» 88161

TRIM(L),SEAT CUSHION

Part Number	Qty.	Specifications	Price
E04088161	1	STB TYPE STC TYPE STD TYPE - 950401 EC1* -207388**
E04088161B	1	STB TYPE STC TYPE STD TYPE 950401 - EC1207388-*
E04588161	1	STH TYPE - 950401 EC1* -207388**
E04588161B	1	STH TYPE 950401 - EC1207388-*

» 88180

BACK(L),FRONT SEAT

Part Number	Qty.	Specifications	Price
EA9088180	1	STB TYPE - 950401 EC1* -207388**
EA9088180B	1	STB TYPE 950401 - EC1207388-*
EA9188180	1	STC TYPE - 950401 EC1* -207388**
EA9188180B	1	STC TYPE 950401 - 950801 EC1207388-209271*
EA9188180C	1	STC TYPE 950801 - EC1209271-*
EA9288180	1	STD TYPE - 950401 EC1* -207388**
EA9288180B	1	STD TYPE 950401 - EC1207388-*
EB1388180	1	STH TYPE - 950401 EC1* -207388**
EB1388180B	1	STH TYPE 950401 - EC1207388-*

» 88181

TRIM(L),SEAT BACK

Part Number	Qty.	Specifications	Price
EA9088181	1	STB TYPE STC TYPE - 950401 EC1* -207388**
EA9088181B	1	STB TYPE STC TYPE 950401 - EC1207388-*
EA9288181	1	STD TYPE - 950401 EC1* -207388**
EA9288181B	1	STD TYPE 950401 - EC1207388-*
EB1388181	1	STH TYPE - 950401 EC1* -207388**
EB1388181B	1	STH TYPE 950401 - EC1207388-*

» 881H3

COVER NO.4,SIDE-F.SEAT

Part Number	Qty.	Specifications	Price
EA90881H3	1	- 950801 EC1* -209271**
EA90881H3A	1	950801 - EC1209271-*

» 881J6

SCREW,TILT

Part Number	Qty.	Specifications	Price
B21H881J6	1	970501 - EC1217510-*	€ 1,23
BC1M881J6	1	- 970501 EC1* -217510**	€ 1,26

» 88258A

STOPPER

Part Number	Qty.	Specifications	Price
BC5E88244	2	STC TYPE 940901 - EC1205097-*	€ 6,58

» 88336

RING,STOPPER

Part Number	Qty.	Specifications	Price
FA5888336	2		€ 2,26

» 88389Y

LEVER(L),TILT

Part Number	Qty.	Specifications	Price
BC1M88663	1	- 970501 EC1* -217510**	€ 6,61
BC1M88663A	1	970501 - EC1217510-*

» 88515

CAP,LIFTER LEVER

Part Number	Qty.	Specifications	Price
BC1M88741	1

» 88642B

SCREW

Part Number	Qty.	Specifications	Price
BC1M88642	1		€ 2,89

» 88649

NUT,FRANGE

Part Number	Qty.	Specifications	Price
BC1M88649	1		€ 1,96

» 88734

BOLT

Part Number	Qty.	Specifications	Price
B09288818	8	ILLUST. NO.1 950801 - EC1209271-*	€ 1,74
B26088818	4	ILLUST. NO.2 - 950801 EC1* -209271**	€ 1,44

» 90794

BOLT & WASHER,FLANGE

Part Number	Qty.	Specifications	Price
907941616B	1		€ 2,85

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998640412B	1		€ 0,44
