Mazda MX-3 EC 1993-11 Mazda Transmission Gears

Mazda parts catalog

Parts > Mazda MX-3 > 1993-11 > Gasoline-engine V6-cylinder Transmission > Transmission Gears(manual Transmisston 5-speed)(1800cc)

Search by part number:

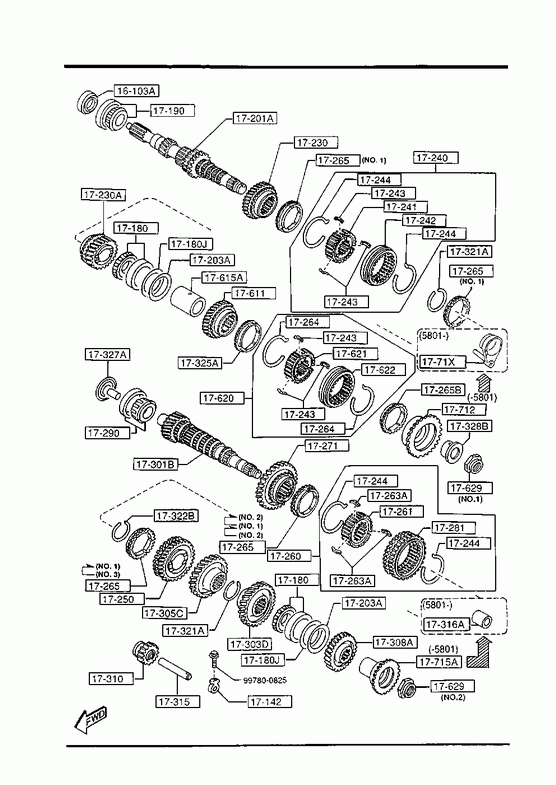

Transmission Gears(manual Transmisston 5-speed)(1800cc)

SEAL,OIL

Part Number	Qty.	Specifications	Price
060316103	1		€ 6,96

» 17142

SUPPORT,REV.IDLE GEAR

Part Number	Qty.	Specifications	Price
G40117142	1		€ 13,43

» 17180

BEARING

Part Number	Qty.	Specifications	Price
G40117180A	2	950301 - EC1207146-*	€ 33,21
G56117180	2	A (G401-17-180A) - 950301 EC1* -207146**	€ 33,21

» 17180J

SHIM

Part Number	Qty.	Specifications	Price
999635320	2	T=0.2MM 950301 - EC1207146-*	€ 2,11
999635325	2	T=0.25MM 950301 - EC1207146-*	€ 2,11
999635330	2	T=0.3MM 950301 - EC1207146-*	€ 2,20
999635335	2	T=0.35MM 950301 - EC1207146-*	€ 2,11
999635340	2	T=0.4MM 950301 - EC1207146-*	€ 2,11
999635345	2	T=0.45MM 950301 - EC1207146-*	€ 2,11
G40117731B	2	T=0.5MM	€ 2,26
G40117732B	2	T=0.55MM	€ 3,43
G40117733B	2	T=0.6MM	€ 2,26
G40117734B	2	T=0.65MM	€ 3,22
G40117735B	2	T=0.7MM	€ 3,24
G50117736	2	T=0.2MM - 950301 EC1* -207146**	€ 3,95
G50117737	2	T=0.25MM - 950301 EC1* -207146**	€ 3,95
G50117738	2	T=0.3MM - 950301 EC1* -207146**	€ 3,95
G50117739	2	T=0.35MM - 950301 EC1* -207146**	€ 3,95
G50117741	2	T=0.4MM - 950301 EC1* -207146**	€ 3,95
G50117742	2	T=0.45MM - 950301 EC1* -207146**	€ 4,52

» 17190

BEARING,TAPER

Part Number	Qty.	Specifications	Price
G56117190	1		€ 28,97

» 17201A

GEAR,PRIMARY SHAFT

Part Number	Qty.	Specifications	Price
G56017201D	1		€ 344,87

» 17203A

SPRING,DIAGHRAM

Part Number	Qty.	Specifications	Price
G40117203	2	- 940601 EC1* -204046**	€ 4,12

» 17230

GEAR,3RD

Part Number	Qty.	Specifications	Price
G50217230	1	AN (G502-17-230A) 940301 - 970301 EC1202260-216216*	€ 201,72
G50217230A	1	AN (G502-17-230B) 970301 - 980129 EC1216216-223774*	€ 201,72
G50217230B	1	AN (G502-17-230C) 980129 - EC1223774-*	€ 201,72
G56217230	1	- 940301 EC1* -202260**	€ 210,01

» 17230A

GEAR,4TH

Part Number	Qty.	Specifications	Price
G50317210	1	AN (G503-17-210A) - 980129 EC1* -223774**	€ 222,35
G50317210A	1	AN (G503-17-210B) 980129 - EC1223774-*	€ 222,35

» 17240

HUB SET,CLUTCH-3RD & 4TH

Part Number	Qty.	Specifications	Price
G50117240C	1	AN (G501-17-240D) - 940401 EC1* -202927**	€ 119,83
G50117240D	1	C (G501-17-240E) 940401 - EC1202927-*	€ 119,83

» 17241

HUB,CLUTCH

Part Number	Qty.	Specifications	Price
G50117241B	1		€ 84,08

» 17242

SLEEVE,CLUTCH HUB

Part Number	Qty.	Specifications	Price
G50117242	1	AN (G501-17-242A) - 940401 EC1* -202927**	€ 59,42
G50117242A	1	C (G501-17-242B) 940401 - EC1202927-*	€ 59,42

» 17243

KEY,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
F40117243A	6	AN (F401-17-243C) - 961001 EC1* -214158**	€ 3,12
F40117243C	6	961001 - EC1214158-*	€ 3,24

» 17244

SPRING,SYNCHRO. KEY

Part Number	Qty.	Specifications	Price
G50217264	6	A (W501-17-724) 960528 - EC1212506-*	€ 2,43

» 17250

GEAR,2ND

Part Number	Qty.	Specifications	Price
G56117251A	1	A (G561-17-251B) - 951218 EC1* -210189**	€ 192,97
G56117251B	1	951218 - EC1210189-*	€ 192,97

» 17260

HUB SET,CLUTCH-1ST & 2ND

Part Number	Qty.	Specifications	Price
G56017260A	1	AN (G560-17-260B) - 940201 EC1* -201574**	€ 191,66
G56017260C	1	A (G560-17-260D) 940201 - 940726 EC1201574-204438*	€ 191,66
G56017260D	1	A (G574-17-260) 940726 - 970414 EC1204438-217041*	€ 191,66
G57417260	1	970414 - EC1217041-*	€ 269,19

» 17261

HUB,CLUTCH

Part Number	Qty.	Specifications	Price
G50217261	1	A (G503-17-261) - 970414 EC1* -217041**	€ 87,55
G50317261	1	970414 - EC1217041-*	€ 91,09

» 17263A

KEY,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
F40117263A	3	- 961001 EC1* -214158**	€ 2,92
F40117263C	3	961001 - EC1214158-*	€ 3,04

» 17264

SPRING,SYNCHRO. KEY

Part Number	Qty.	Specifications	Price
G50117264	2		€ 2,56

» 17265

RING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
G50117265A	3	ILLUST. NO.1 940201 - 950801 EC1201574-209271*	€ 26,32
G50317265	1	A (G501-17-265) ILLUST. NO.2 - 950801 EC1* -209271**	€ 25,05
G50517265A	1	ILLUST. NO.3 - 940201 EC1* -201574**	€ 25,05

» 17265B

RING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
G50417265A	1	- 940101 EC1* -201041**	€ 19,43
G50417265B	1	940101 - EC1201041-*	€ 19,43

» 17271

GEAR,1ST

Part Number	Qty.	Specifications	Price
G50317271	1	AN (G574-17-271)	€ 147,25

» 17281

GEAR,REVERSE

Part Number	Qty.	Specifications	Price
G56017281	1	AN (G560-17-281A) - 940201 EC1* -201574**	€ 94,02
G56017281A	1	A (G560-17-281B) 940201 - 940726 EC1201574-204438*	€ 94,02
G56017281B	1	940726 - EC1204438-*	€ 97,82

» 17290

BEARING,TAPER

Part Number	Qty.	Specifications	Price
G56017290	1		€ 37,83

» 17301B

GEAR,SECOND.SHAFT

Part Number	Qty.	Specifications	Price
G5C017301C	1	950401 - EC1207388-*	€ 346,86
G5F017301B	1	AN (G5C0-17-301C) - 950401 EC1* -207388**	€ 330,10

» 17303D

GEAR,SECD.4TH

Part Number	Qty.	Specifications	Price
G50317303	1	AN (G503-17-303A)	€ 143,01

» 17305C

GEAR,SECD.3RD

Part Number	Qty.	Specifications	Price
G40217305B	1	940401 - 940701 EC1202927-204146*	€ 103,48
G50217305	1	AN (G502-17-305A) 940701 - EC1204146-*	€ 104,52
G56217305	1	- 940301 EC1* -202260**	€ 103,48

» 17308A

GEAR,SECD.5TH

Part Number	Qty.	Specifications	Price
G52317308	1	A (G523-17-308A)	€ 86,31

» 17310

GEAR,REVERSE IDLE

Part Number	Qty.	Specifications	Price
G56017310	1	A (G560-17-310A) - 940801 EC1* -204536**	€ 58,05
G56017310A	1	940801 - EC1204536-*	€ 60,39

» 17315

SHAFT,REV. IDLE GEAR

Part Number	Qty.	Specifications	Price
G50217141	1	A (G502-17-141A) - 940620 EC1* -204064**	€ 10,50
G50217141A	1	940620 - EC1204064-*	€ 10,92

» 17316A

SPACER

Part Number	Qty.	Specifications	Price
G50117316A	1	950801 - EC1209271-*	€ 12,92

» 17321A

RING,RETAINING

Part Number	Qty.	Specifications	Price
G40117321	2		€ 4,32

» 17322B

RING,RETAINING

Part Number	Qty.	Specifications	Price
G40117322	1		€ 4,88

» 17325A

RING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
B50117265	1	A (B501-17-265A) - 940101 EC1* -201041**	€ 18,68
B50117265A	1	940101 - EC1201041-*	€ 19,43

» 17327A

FUNNEL

Part Number	Qty.	Specifications	Price
G5C017327A	1		€ 4,32

» 17328B

SLEEVE,GEAR

Part Number	Qty.	Specifications	Price
G50117328A	1		€ 18,72

» 17611

GEAR,OVER TOP

Part Number	Qty.	Specifications	Price
G56317611	1	AN (G563-17-611A)	€ 220,50

» 17615A

SLEEVE,GEAR

Part Number	Qty.	Specifications	Price
G50117615	1		€ 22,27

» 17620

HUB,CLUTCH-5TH & REV.

Part Number	Qty.	Specifications	Price
G50217620B	1	A (G502-17-620C) - 940401 EC1* -202927**	€ 92,47
G50217620C	1	A (G502-17-620D) 940401 - 940701 EC1202927-204146*	€ 92,47
G50217620D	1	A (G502-17-620E) 940701 - 950701 EC1204146-208450*	€ 92,47
G50217620E	1	950701 - EC1208450-*	€ 96,21

» 17621

HUB,CLUTCH

Part Number	Qty.	Specifications	Price
G50217621A	1	A (G502-17-621B) - 940701 EC1* -204146**	€ 46,04
G50217621B	1	940701 - EC1204146-*	€ 47,90

» 17622

SLEEVE,CLUTCH HUB

Part Number	Qty.	Specifications	Price
G50217622B	1	A (G502-17-622C) - 940401 EC1* -202927**	€ 35,28
G50217622C	1	940401 - EC1202927-*	€ 36,71

» 17629

NUT,LOCK-CLUTCH HUB

Part Number	Qty.	Specifications	Price
F52017628	1	ILLUST. NO.1	€ 13,29
F52117628A	1	ILLUST. NO.2 950801 - EC1209271-*	€ 10,23
G50117629A	1	ILLUST. NO.2 - 950801 EC1* -209271**	€ 11,81

» 17712

GEAR,REVERSE SYNC.-1ST

Part Number	Qty.	Specifications	Price
G50117712B	1	C (G501-17-712C) - 940101 EC1* -201041**	€ 61,42
G50117712C	1	A (G501-17-712D) 940101 - 940701 EC1201041-204146*	€ 61,42
G50117712D	1	940701 - 950801 EC1204146-209271*	€ 63,90

» 17715A

GEAR,REVERSE SYNC.-2ND

Part Number	Qty.	Specifications	Price
G50117715	1	- 950801 EC1* -209271**	€ 63,90

» 1771X

CONE,REVERSE-SYNCRO.

Part Number	Qty.	Specifications	Price
G5011771X	1	950801 - EC1209271-*	€ 92,69

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997800825	1		€ 1,55

Transmission Gears(manual Transmisston 5-speed)(1800cc)
