- Parts > Mazda MX-3 > 1993-11 > Gasoline-engine 4-cylinder Transmission > Clutches & Planetary Gears(automatic Transmission 4-speed)
- Search by part number:
-

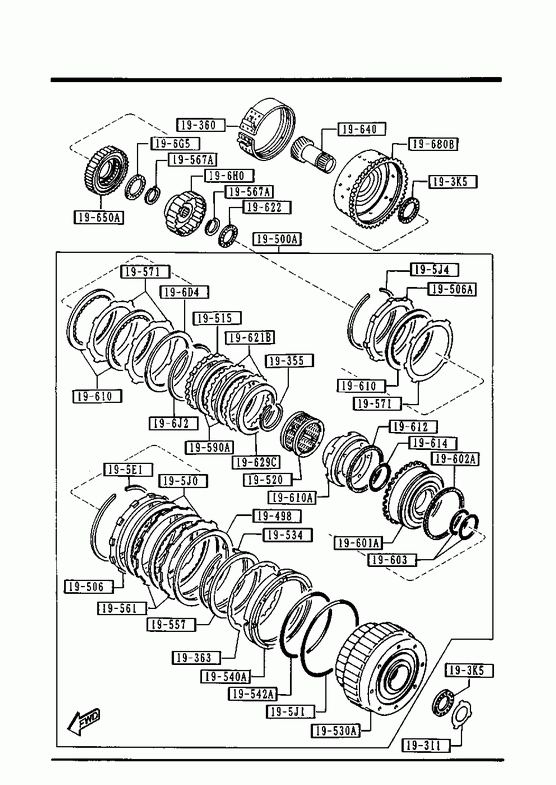

Clutches & Planetary Gears(automatic Transmission 4-speed)
-
» 19311 RACE,BEARING Part Number Qty. Specifications Price FU0119311A 1 T=1.6MM € 4,66 FU0119312A 1 T=1.8MM € 4,66 FU0119313A 1 T=2.0MM € 4,34 FU0119314A 1 T=2.2MM € 4,34 FU0119315B 1 T=1.2MM € 5,83 FU0119316B 1 T=1.4MM € 5,95 » 19355 RING,SNAP Part Number Qty. Specifications Price FU5019355B 1 € 2,17 » 19360 BAND,BRAKE Part Number Qty. Specifications Price FU6021310E 1 € 55,21 » 19363 SPRING,PISTON RETURN Part Number Qty. Specifications Price FU6019551F 1 - 940301
EC1*** -202260€ 11,57 FU6019551G 1 940301 -
EC1***202260-€ 11,57 » 193K5 BEARING,NEEDLE THRUST Part Number Qty. Specifications Price FU60193K5A 2 € 9,55 » 19498 PLATE,DISHED Part Number Qty. Specifications Price FU6019544C 1 - 940301
EC1*** -202260€ 16,68 FU6019544D 1 940301 -
EC1***202260-€ 15,93 » 19500A CLUTCH & ONE WAY Part Number Qty. Specifications Price FU6019500L 1 A (FU60-19-500M)
- 940301
EC1*** -202260€ 1171,18 FU6019500N 1 A (FU60-19-500P)
940301 - 940801
EC1***202260-204536€ 1171,18 FU6019500P 1 A (FU60-19-500R)
940801 - 941221
EC1***204536-206739€ 1171,18 FU6019500R 1 A (FU60-19-500S)
941221 - 960401
EC1***206739-211754€ 1171,18 FU6019500S 1 AN (FU60-19-500T)
960401 - 970501
EC1***211754-217510€ 1171,18 FU6019500T 1 970501 -
EC1***217510-€ 1194,60 » 19506 PLATE,RETAINING Part Number Qty. Specifications Price FU60195K2A 1 € 21,54 » 19506A PLATE,RETAINING Part Number Qty. Specifications Price FU6019572A 1 € 16,65 » 19515 PLATE,RETAINING Part Number Qty. Specifications Price FU6019623A 1 € 11,89 » 19520 RETAINER,SPRING-CLU.ONE W Part Number Qty. Specifications Price FU6019520A 1 € 8,40 » 19530A DRUM,REVERSE Part Number Qty. Specifications Price FU60195G0F 1 € 253,10 » 19534 RING,SNAP Part Number Qty. Specifications Price FU6019411A 1 € 1,91 » 19540A PISTON,REVERSE Part Number Qty. Specifications Price FU60195H0D 1 - 940301
EC1*** -202260€ 18,44 FU60195H0E 1 A (FU60-19-5H0F)
940301 - 941221
EC1***202260-206739€ 38,24 FU60195H0F 1 941221 -
EC1***206739-€ 38,24 » 19542A SEAL,'O'RING Part Number Qty. Specifications Price FU6019542A 1 € 9,26 » 19557 STOPPER,REV. RETURN SPRING Part Number Qty. Specifications Price FU6019557A 1 A (FU60-19-557B)
- 960401
EC1*** -211754€ 20,71 FU6019557C 1 960401 -
EC1***211754-€ 21,12 » 19561 PLATE,DRIVEN-REV.PISTON Part Number Qty. Specifications Price FU6119561 2 € 8,93 » 19567A RING,SNAP Part Number Qty. Specifications Price FU6019631A 2 € 0,54 » 19571 PLATE,DRIVEN-FRONT Part Number Qty. Specifications Price FU6119571 3 € 5,91 » 19590A PLATE,DRIVE-CENTER Part Number Qty. Specifications Price FU6019590A 2 AN (FW01-19-590)
- 970501
EC1*** -217510€ 13,37 FW0119590 2 970501 -
EC1***217510-€ 13,91 » 195E1 RING,SNAP Part Number Qty. Specifications Price FU60195E1A 1 T=2.0MM € 1,48 FU60195E2A 1 T=2.2MM € 1,48 FU60195E3A 1 T=2.4MM € 2,79 FU60195E4A 1 T=2.6MM € 2,40 FU60195E5A 1 T=2.8MM € 1,51 FU60195E6A 1 T=3.0MM € 1,48 » 195J0 PLATE,DRIVE Part Number Qty. Specifications Price FU60195J0A 2 AN (FW01-19-5J0)
- 940301
EC1*** -202260€ 17,30 FW01195J0 2 940301 -
EC1***202260-€ 18,00 » 195J1 SEAL,OUTER Part Number Qty. Specifications Price FU60195J1A 1 € 21,02 » 195J4 RING,SNAP Part Number Qty. Specifications Price FU60195J4B 1 T=2.95MM € 1,95 FU60195J5B 1 T=1.8MM € 1,87 FU60195J6B 1 T=2.1MM € 1,95 FU60195J7B 1 T=2.25MM € 1,95 FU60195J8B 1 T=2.4MM € 1,91 FU60195J9B 1 T=2.55MM € 1,87 FU60195N1 1 T=2.7MM € 2,70 FU60195N2 1 T=2.85MM € 2,65 » 19601A DRUM,FOWARD CLUTCH Part Number Qty. Specifications Price FU60196D1C 1 A (FU60-19-6D1D)
- 940301
EC1*** -202260€ 109,51 FU60196D1D 1 A (FU60-19-6D1E)
940301 - 940801
EC1***202260-204536€ 109,51 FU60196D1E 1 940801 -
EC1***204536-€ 113,93 » 19602A SEAL,OUTER?LOW.PISTON Part Number Qty. Specifications Price FU6019602A 1 € 15,87 » 19603 SEAL,PISTON Part Number Qty. Specifications Price FU6019603 2 € 7,02 » 19610 PLATE,DRIVE Part Number Qty. Specifications Price FU6019610A 3 AN (FW01-19-610)
- 940301
EC1*** -202260€ 13,93 FW0119610 3 940301 -
EC1***202260-€ 14,64 » 19610A PISTON,COASTING Part Number Qty. Specifications Price FU60196E0B 1 € 31,94 » 19612 SEAL,OUTER-C. PISTON OUTER Part Number Qty. Specifications Price FU6019612A 1 € 15,87 » 19614 SEAL,RING Part Number Qty. Specifications Price FU6019614A 1 € 5,80 » 19621B PLATE,DRIVEN?CENTER Part Number Qty. Specifications Price FU61196E1 2 € 5,70 » 19622 BEARING,NEEDLE Part Number Qty. Specifications Price FU6019305A 1 € 6,18 » 19629C PLATE,DISHED Part Number Qty. Specifications Price FU6019629A 1 € 5,43 » 19640 GEAR,SMALL SUN Part Number Qty. Specifications Price FU6019640D 1 € 39,40 » 19650A CLUTCH,OUTER-ONE WAY Part Number Qty. Specifications Price FU6019630 1 € 98,56 » 19680B GEAR,LARGE SUN Part Number Qty. Specifications Price FU6019680B 1 - 960401
EC1*** -211754€ 142,86 FU6019680E 1 AN (FU60-19-680F)
960401 -
EC1***211754-€ 88,86 » 196D4 PLATE,DISHED Part Number Qty. Specifications Price FU60196D4A 1 € 7,77 » 196G5 BEARING,NEEDLE ROLLER Part Number Qty. Specifications Price FU60196G5A 1 € 4,82 » 196H0 RACE,INNER-ONE WAY CLUTCH Part Number Qty. Specifications Price FU60196H0A 1 € 101,99 » 196J2 RING,SNAP Part Number Qty. Specifications Price FU60196J2B 1 T=1.6MM € 1,95 FU60196J3B 1 T=1.8MM € 1,95 FU60196J4B 1 T=1.9MM € 1,03 FU60196J5B 1 T=2.2MM € 1,91 FU60196J6B 1 T=2.05MM € 1,95 FU60196J7B 1 T=2.35MM € 1,87 FU60197J2 1 T=2.5MM € 2,06 FU60197J3 1 T=2.65MM € 2,06
