Mazda MX-3 EC 1993-11 Mazda Transmission Gears

Mazda parts catalog

Parts > Mazda MX-3 > 1993-11 > Gasoline-engine 4-cylinder Transmission > Transmission Gears(manual Transmisston 5-speed)(1600cc)

Search by part number:

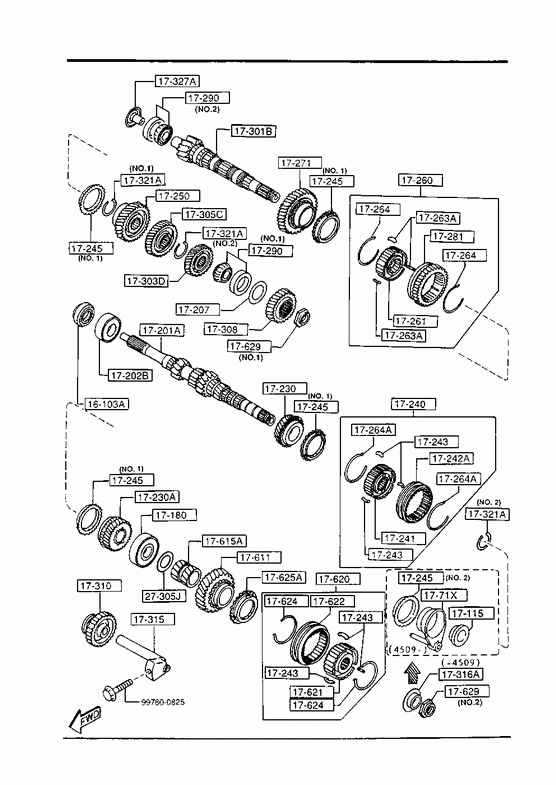

Transmission Gears(manual Transmisston 5-speed)(1600cc)

SEAL,OIL

Part Number	Qty.	Specifications	Price
061316103	1		€ 7,63

» 17115

SLEEVE,CLUTCH HOUSING

Part Number	Qty.	Specifications	Price
F5D217338	1	940509 - EC1203561-*	€ 4,78

» 17180

BEARING

Part Number	Qty.	Specifications	Price
F52017181	1	KOYO OR NSK	€ 46,60

» 17201A

GEAR,PRIMARY SHAFT

Part Number	Qty.	Specifications	Price
F52117201D	1	A (F521-17-201E) - 961001 EC1* -214158**	€ 210,51
F52117201E	1	A (F521-17-201F) 961001 - 970501 EC1214158-217510*	€ 210,51
F52117201F	1	A (F521-17-201G) 970501 - EC1217510-*	€ 210,51

» 17202B

BEARING,BALL

Part Number	Qty.	Specifications	Price
F52017171B	1	A (F520-17-171C) - 941101 EC1* -206070**	€ 26,37
M50217297A	1	KOYO 941101 - EC1206070-*	€ 29,35

» 17207

SHIM,ADJUST

Part Number	Qty.	Specifications	Price
999634315	1	T=0.15MM	€ 3,65
999634320	1	T=0.2MM	€ 2,03
999634325	1	T=0.25MM	€ 2,02
999634330	1	T=0.3MM	€ 2,56
999634335	1	T=0.35MM	€ 2,02
999634340	1	T=0.4MM	€ 2,15
999634345	1	T=0.45MM	€ 2,15
999634350	1	T=0.5MM	€ 2,15
999634355	1	T=0.55MM	€ 2,17
999634360	1	T=0.6MM	€ 2,17
999634365	1	T=0.65MM	€ 2,17
999634370	1	T=0.7MM	€ 2,17

» 17230

GEAR,3RD

Part Number	Qty.	Specifications	Price
F52017231	1	A (F520-17-231A) - 950701 EC1* -208450**	€ 69,34
F52017231A	1	AN (F520-17-231B) 950701 - 971001 EC1208450-220281*	€ 69,34
F52017231B	1	971001 - EC1220281-*	€ 72,14

» 17230A

GEAR,4TH

Part Number	Qty.	Specifications	Price
F52617211C	1	A (F526-17-211D) - 950327 EC1* -207370**	€ 76,66
F52617211D	1	A (F526-17-211E) 950327 - 970801 EC1207370-219067*	€ 76,66
F52617211E	1	970801 - EC1219067-*

» 17240

HUB SET,CLUTCH-3RD & 4TH

Part Number	Qty.	Specifications	Price
F52017240	1	A (F520-17-240A) - 970901 EC1* -219595**	€ 79,39
F52017240A	1	AN (F5E0-17-240) 970901 - EC1219595-*	€ 79,39

» 17241

HUB,CLUTCH

Part Number	Qty.	Specifications	Price
F40117241	1	A (F401-17-241A) - 970901 EC1* -219595**	€ 26,10
F40117241A	1	970901 - EC1219595-*	€ 27,15

» 17242A

SLEEVE,CLUTCH HUB

Part Number	Qty.	Specifications	Price
F52017242	1		€ 42,14

» 17243

KEY,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
F40117243A	6	AN (F401-17-243C) - 960930 EC1* -214145**	€ 3,12
F40117243B	6	AN (F401-17-243C) 960930 - 961001 EC1214145-214158*	€ 3,12
F40117243C	6	961001 - EC1214158-*	€ 3,24

» 17245

RING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
F52017245A	4	ILLUST. NO.1 - 961101 EC1* -214421**	€ 22,36
F52017245C	4	ILLUST. NO.1 961101 - EC1214421-*	€ 23,27
F5D217245	1	ILLUST. NO.2 940509 - 950701 EC1203561-208450*	€ 25,64
F5D217245A	1	ILLUST. NO.2 950701 - EC1208450-*	€ 25,64

» 17250

GEAR,2ND

Part Number	Qty.	Specifications	Price
F52117251A	1	A (F521-17-251B) - 950801 EC1* -209271**	€ 82,94
F52117251B	1	950801 - EC1209271-*	€ 86,29

» 17260

HUB SET,CLUTCH-1ST & 2ND

Part Number	Qty.	Specifications	Price
F52117260B	1	AN (F521-17-260C) - 940201 EC1* -201574**	€ 108,55
F52117260C	1	A (F521-17-260D) 940201 - 940323 EC1201574-202725*	€ 108,55
F52117260D	1	AN (F521-17-260E) 940323 - 940720 EC1202725-204314*	€ 108,55
F52117260E	1	A (F521-17-260F) 940720 - 950601 EC1204314-208015*	€ 108,55
F52117260F	1	C (F521-17-260G) 950601 - EC1208015-*	€ 108,55

» 17261

HUB,CLUTCH

Part Number	Qty.	Specifications	Price
F52117261	1		€ 28,93

» 17263A

KEY,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
F40117263A	3	- 960930 EC1* -214145**	€ 2,92
F40117263B	3	AN (F401-17-263C) 960930 - 961001 EC1214145-214158*	€ 2,92
F40117263C	3	961001 - EC1214158-*	€ 3,04

» 17264

SPRING,SYNCHRO. KEY

Part Number	Qty.	Specifications	Price
F40217264	2		€ 2,62

» 17264A

SPRING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
F40117264A	2	A (F402-17-264)	€ 2,70

» 17271

GEAR,1ST

Part Number	Qty.	Specifications	Price
F52117271B	1		€ 84,26

» 17281

GEAR,REVERSE

Part Number	Qty.	Specifications	Price
F52017281B	1	AN (F520-17-281C) - 940201 EC1* -201574**	€ 67,10
F52017281C	1	A (F520-17-281D) 940201 - 940323 EC1201574-202725*	€ 67,10
F52017281D	1	AN (F520-17-281E) 940323 - 940720 EC1202725-204314*	€ 67,10
F52017281E	1	A (F520-17-281F) 940720 - 950601 EC1204314-208015*	€ 67,10
F52017281F	1	950601 - EC1208015-*	€ 69,81

» 17290

BEARING,TAPER

Part Number	Qty.	Specifications	Price
F40117290	1	KOYO MAKE ILLUST. NO.1 - 950201 EC1* -206961**	€ 36,01
F52017290	1	KOYO ILLUST. NO.2	€ 39,20
F5D217290	1	NTN ILLUST. NO.1 950201 - EC1206961-*	€ 39,20

» 17301B

GEAR,SECOND.SHAFT

Part Number	Qty.	Specifications	Price
F52017301	1	- 940101 EC1* -201041**	€ 176,22
F5D317301	1	940101 - EC1201041-*	€ 176,22

» 17303D

GEAR,SECD.4TH

Part Number	Qty.	Specifications	Price
F52617303A	1		€ 102,49

» 17305C

GEAR,SECD.3RD

Part Number	Qty.	Specifications	Price
F52017305	1		€ 106,61

» 17308

GEAR,COUNTER-5TH

Part Number	Qty.	Specifications	Price
F5D317308	1	A (F5D3-17-308A) - 950101 EC1* -206784**
F5D317308A	1	950101 - EC1206784-*	€ 89,80

» 17310

GEAR,REVERSE IDLE

Part Number	Qty.	Specifications	Price
F52017310C	1	A (F520-17-310D) - 950501 EC1* -207721**	€ 58,05
F52017310D	1	950501 - EC1207721-*	€ 60,39

» 17315

SHAFT,REV. IDLE GEAR

Part Number	Qty.	Specifications	Price
F52017315	1	A (F520-17-315A) - 940501 EC1* -203561**
F52017315A	1	A (F520-17-315B) 940501 - 940618 EC1203561-204064*	€ 18,35
F52017315B	1	940618 - EC1204064-*	€ 19,09

» 17316A

SPACER

Part Number	Qty.	Specifications	Price
F5D217316B	1	- 940509 EC1* -203561**	€ 12,41

» 17321A

RING,RETAINING

Part Number	Qty.	Specifications	Price
F40117321	1	A (G401-17-322) ILLUST. NO.1	€ 4,37
G40117321	2	ILLUST. NO.2	€ 4,32

» 17327A

FUNNEL

Part Number	Qty.	Specifications	Price
F40117327	1	AN (F5E0-17-327)	€ 3,46

» 17611

GEAR,OVER TOP

Part Number	Qty.	Specifications	Price
F5D317611	1	A (F5D3-17-611A) - 940301 EC1* -202260**
F5D317611A	1	940301 - EC1202260-*	€ 99,64

» 17615A

SLEEVE,GEAR

Part Number	Qty.	Specifications	Price
F5D217615	1		€ 32,57

» 17620

HUB,CLUTCH-5TH & REV.

Part Number	Qty.	Specifications	Price
F5D317620	1	A (F5D3-17-620A) - 931222 EC1* -200876**
F5D317620A	1	AN (F5D3-17-620B) 931222 - 940301 EC1200876-202260*	€ 67,10
F5D317620B	1	A (F5D3-17-620C) 940301 - 940323 EC1202260-202725*	€ 67,10
F5D317620C	1	A (F5D3-17-620D) 940323 - 970401 EC1202725-216722*	€ 67,10
F5D317620D	1	AN (F5D3-17-620E) 970401 - EC1216722-*	€ 67,10

» 17621

HUB,CLUTCH

Part Number	Qty.	Specifications	Price
F5D217621	1	A (F5D2-17-621A) - 931222 EC1* -200876**	€ 18,40
F5D217621A	1	A (F5D2-17-621B) 931222 - 940323 EC1200876-202725*	€ 18,40
F5D217621B	1	A (F5D2-17-621C) 940323 - 970401 EC1202725-216722*	€ 18,40
F5D217621C	1	970401 - EC1216722-*	€ 19,15

» 17622

SLEEVE,CLUTCH HUB

Part Number	Qty.	Specifications	Price
F50117622A	1	AN (F501-17-622D) - 940301 EC1* -202260**	€ 36,57
F50117622D	1	AN (F501-17-622E) 940301 - EC1202260-*	€ 36,57

» 17624

SPRING,SYNC.KEY

Part Number	Qty.	Specifications	Price
F50117624A	2		€ 2,56

» 17625A

RING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
F50117625	1		€ 19,25

» 17629

NUT,LOCK-CLUTCH HUB

Part Number	Qty.	Specifications	Price
F52117628A	1	ILLUST. NO.1	€ 10,23
F5DY17629	1	A (F5DY-17-629A) ILLUST. NO.2 - 940323 EC1* -202725**	€ 9,26
F5DY17629A	1	ILLUST. NO.2 940323 - EC1202725-*	€ 9,73

» 1771X

CONE,REVERSE-SYNCRO.

Part Number	Qty.	Specifications	Price
F5D21771X	1	A (F5D2-17-71XA) 940509 - 940601 EC1203561-204046*	€ 118,07
F5D21771XA	1	A (F5D2-17-71XB) 940601 - 950101 EC1204046-206784*	€ 118,07
F5D21771XB	1	950101 - 950701 EC1206784-208450*	€ 118,07
F5D21771XC	1	950701 - EC1208450-*	€ 122,84

» 27305J

SHIM

Part Number	Qty.	Specifications	Price
G00127401A	1	T=0.1MM	€ 2,11
G00127402A	1	T=0.2MM	€ 2,56
G00127403A	1	T=0.3MM	€ 2,61
G00127404A	1	T=0.4MM	€ 2,85
G00127406A	1	T=0.6MM	€ 2,61
G00127418	1	T=0.5MM	€ 4,88

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997800825	1		€ 1,55

Transmission Gears(manual Transmisston 5-speed)(1600cc)
