Mazda MPV LV 0- Mazda Lift Gate Mechanisms

Mazda parts catalog

Parts > Mazda MPV > 0- > Body Rear(door,gate & Bumper) > Lift Gate Mechanisms

Search by part number:

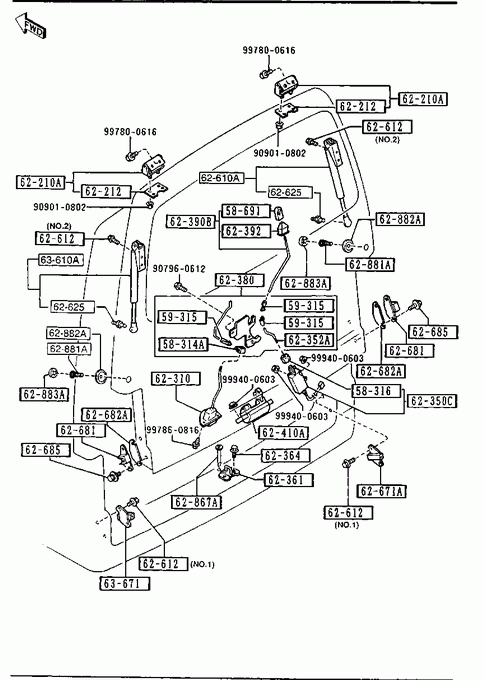

Lift Gate Mechanisms
» 58314A JOINT

Part Number Qty. Specifications Price
B45558411 1
€ 3,51

» 58316 CLIP

Part Number Qty. Specifications Price
B09358351 1 LUX-PKG, PKG-C, PKG-A, PKG-B, LX-PKG, LXE-PKG,
W/POWER DR LOCK
€ 1,55

» 58691 KNOB,DOOR LOCK

Part Number Qty. Specifications Price
G03058316A 1 940201 -
LV52**614305-
LA8362316 1 - 940201
LV52** -614305

» 59315 CLIP

Part Number Qty. Specifications Price
G03059315 3
€ 1,84

» 62210A HINGE,LIFT GATE

Part Number Qty. Specifications Price
LA0162210A 2 AN (LA01-62-210B)
€ 37,84

» 62212 GASKET,HINGE-LIFT GATE

Part Number Qty. Specifications Price
B21662212A 2
€ 1,07

» 62310 LOCK,LIFT GATE

Part Number Qty. Specifications Price
LA0162310A 1 A (LA01-62-310B)
€ 67,72

» 62350C ACTUATOR,POWER LOCK

Part Number Qty. Specifications Price
LA0162350 1 C (LA89-62-350)
LUX-PKG, PKG-C, PKG-A, PKG-B, LX-PKG, LXE-PKG,
W/POWER DR LOCK

» 62352A ROD,ACTUATOR-POWER LOCK

Part Number Qty. Specifications Price
LA0162387 1 LUX-PKG, PKG-C, PKG-A, PKG-B, LX-PKG, LXE-PKG,
W/POWER DR LOCK

» 62361 STRIKER,LOCK

Part Number Qty. Specifications Price
LA0162361A 1
€ 17,46

» 62364 SCREW,STRIKER

Part Number Qty. Specifications Price
LA0162365 2
€ 1,55

» 62380 CONTROLLER,REMOTE

Part Number Qty. Specifications Price
LA0162380B 1 LUX-PKG, PKG-C, PKG-A, PKG-B, LX-PKG, LXE-PKG,
W/POWER DR LOCK

LA0262380 1 BASE, L,
W/O POWER DR LOCK

» 62390B KNOB,LOCK-LIFT GATE

Part Number Qty. Specifications Price
LA0162390A 1 A (LA01-62-390C)
- 940201
LV52** -614305
LA0162390C 1 940201 -
LV52**614305-

» 62392 VESSEL,INNER LOCK

Part Number Qty. Specifications Price
LA0162396 1 - 940201
LV52** -614305

» 62410A HANDLE,OUTER

Part Number Qty. Specifications Price
LA0162410 1 AN (LA01-62-410A)
€ 44,95

» 62610A STAY(R),DAMPER

Part Number Qty. Specifications Price
8BL162620 1 2WD
€ 112,08
8BL362620 1 4WD
€ 104,67

» 62612 SCREW,STAY DAMPER

Part Number Qty. Specifications Price
G04362612 4 ILLUST. NO.1
€ 1,20
LA0162621 4 AN (LA01-62-621A)
ILLUST. NO.2
€ 0,55

» 62625 BOLT,STUD

Part Number Qty. Specifications Price
S08462625A 2
€ 5,45

» 62671A DOVETAIL(R),LIFT GATE

Part Number Qty. Specifications Price
LA0162671A 1
€ 28,33

» 62681 WEDGE,LIFTGATE

Part Number Qty. Specifications Price
LA0162681 2
€ 21,23

» 62682A SHIM,WEDGE-LIFT GATE

Part Number Qty. Specifications Price
LA0162682 2
€ 6,11

» 62685 BOLT,WEDGE-LIFT GATE

Part Number Qty. Specifications Price
LA0162685 4
€ 1,72

» 62867A VALVE,ONE WAY-LIFT GATE

Part Number Qty. Specifications Price
LA0162867 1 - 941101
LV52** -706797

» 62881A BOLT,STOPPER-LIFT GATE

Part Number Qty. Specifications Price
LA0162881 2
€ 4,03

» 62882A ADJUSTER,STOPPER BOLT

Part Number Qty. Specifications Price
LA0162882 2
€ 6,55

» 62883A RUBBER,STOPPER-D/PILLAR

Part Number Qty. Specifications Price
LA0162883B 2
€ 2,00

» 63610A STAY(L),DAMPER

Part Number Qty. Specifications Price
8BL163620 1 2WD
€ 112,08
8BL363620 1 4WD
€ 104,67

» 63671 DOVETAIL(L),LIFTGATE

Part Number Qty. Specifications Price
LA0163671A 1
€ 29,18

» 90780 BOLT

Part Number Qty. Specifications Price
907960612 1
€ 2,61

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
909010802 1
€ 2,18

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400603 1
€ 2,05

» 99175 SCREW,TAPPING

Part Number Qty. Specifications Price
997860816 1
€ 1,73

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997800616 1
€ 1,18

Part Number	Qty.	Specifications	Price
B09358351	1	LUX-PKG, PKG-C, PKG-A, PKG-B, LX-PKG, LXE-PKG, W/POWER DR LOCK	€ 1,55

Part Number	Qty.	Specifications	Price
G03058316A	1	940201 - LV52614305-**
LA8362316	1	- 940201 LV52 -614305**

Part Number	Qty.	Specifications	Price
LA0162390A	1	A (LA01-62-390C) - 940201 LV52 -614305**
LA0162390C	1	940201 - LV52614305-**

Part Number	Qty.	Specifications	Price
G04362612	4	ILLUST. NO.1	€ 1,20
LA0162621	4	AN (LA01-62-621A) ILLUST. NO.2	€ 0,55
