Mazda MPV LV 0- Mazda Head Lamps

Mazda parts catalog

Parts > Mazda MPV > 0- > Body Electronics > Head Lamps

Search by part number:

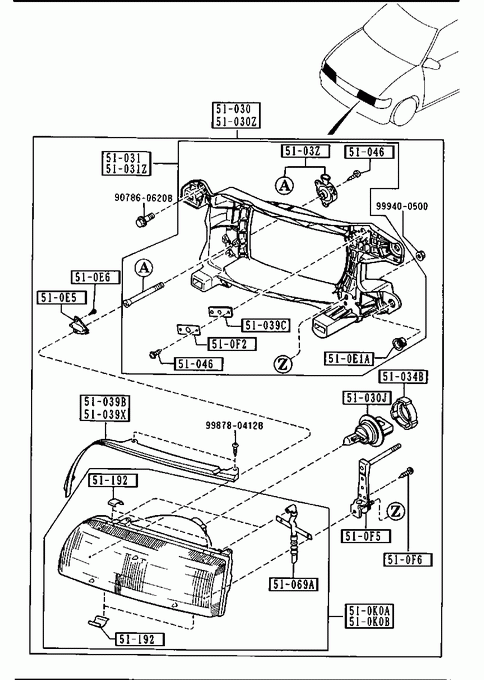

Head Lamps

LAMP SET(R),HEAD

Part Number	Qty.	Specifications	Price
8BL151030	1	C (8BL1-51-030A) - 940201 LV52 -614305**	€ 329,16
8BL151030A	1	940201 - LV52614305-**	€ 335,74

» 51030J

BULB

Part Number	Qty.	Specifications	Price
997036654	2	12V 60/45W	€ 39,28

» 51030Z

LAMP SET(L),HEAD

Part Number	Qty.	Specifications	Price
8BL151040	1	C (8BL1-51-040A) - 940201 LV52 -614305**
8BL151040A	1	940201 - LV52614305-**	€ 342,45

» 51031

HOUSING(R)

Part Number	Qty.	Specifications	Price
LA015103X	1		€ 77,75

» 51031Z

HOUSING(L)

Part Number	Qty.	Specifications	Price
LA015104X	1		€ 77,75

» 51034B

HOLDER,BULB

Part Number	Qty.	Specifications	Price
GJ21510A3	2		€ 3,26

» 51039B

GARNISH(R)

Part Number	Qty.	Specifications	Price
LA01510A9	1	- 940201 LV52 -614305**	€ 10,11

» 51039C

GROMMET,ADJUSTING SCREW

Part Number	Qty.	Specifications	Price
HF0551039	2

» 51039X

GARNISH(L)

Part Number	Qty.	Specifications	Price
LA01510B9	1	- 940201 LV52 -614305**	€ 7,40

» 5103Z

SCREW & BUSH,ADJUST-LAMP

Part Number	Qty.	Specifications	Price
LA015103Z	2		€ 10,34

» 51046

SCREW

Part Number	Qty.	Specifications	Price
LA01510E3	10

» 51069A

TUBE,HEAD LAMP

Part Number	Qty.	Specifications	Price
LA0151069	4

» 510E1A

FASTENER,LAMP

Part Number	Qty.	Specifications	Price
LA01510E1	2

» 510E5

BRACKET(LWR),ADJUSTER

Part Number	Qty.	Specifications	Price
HF05510E5	2		€ 2,46

» 510E6

SCREW,HEAD LAMP

Part Number	Qty.	Specifications	Price
HF05510E6	6

» 510F2

GROMMET,SCREW-HEAD LAMP

Part Number	Qty.	Specifications	Price
HF05510F2	2

» 510F5

ADJUSTER(UP),H/L

Part Number	Qty.	Specifications	Price
LA01510F5	2		€ 11,01

» 510F6

BOLT,HEAD LAMP

Part Number	Qty.	Specifications	Price
HF05510F6	8		€ 1,42

» 510K0A

UNIT & BULB(R),HEAD LAMP

Part Number	Qty.	Specifications	Price
LA01510K0	1	AN (LA01-51-0K0A) - 940201 LV52 -614305**	€ 149,47
LA01510K0A	1	A (LA01-51-0K0B) 940201 - 940901 LV52614305-702019**
LA01510K0B	1	940901 - LV52702019-**	€ 152,46

» 510K0B

UNIT & BULB(L),HEAD LAMP

Part Number	Qty.	Specifications	Price
LA01510L0	1	AN (LA01-51-0L0A) - 940201 LV52 -614305**
LA01510L0A	1	A (LA01-51-0L0B) 940201 - 940901 LV52614305-702019**
LA01510L0B	1	940901 - LV52702019-**

» 51192

CLIP

Part Number	Qty.	Specifications	Price
LA01510A6	8	AN (LA01-51-0A6A) - 940201 LV52 -614305**
LA01510A6A	8	940201 - LV52614305-**

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860620B	1		€ 2,07

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400500	1		€ 0,73

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998780412B	1		€ 1,47
