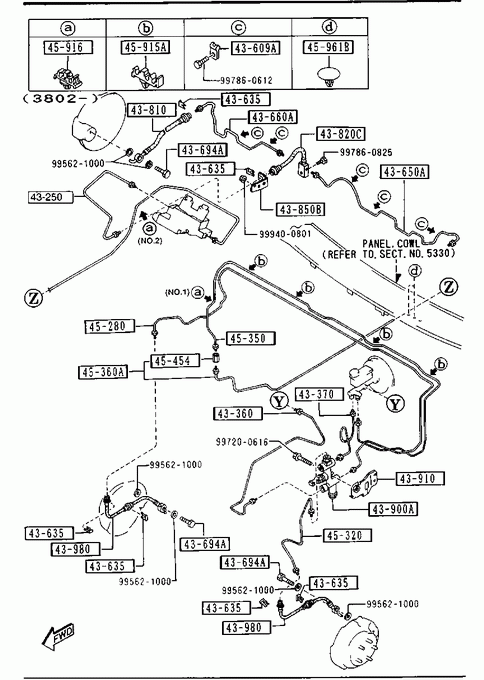

Brake Pipings 01/02 (-3802) 02/02 (3802-)

Brake Pipings |

Mazda parts catalog

Parts > Mazda MPV > 0- > Chassis Piping & Fuel Tank > Brake Pipings

Search by part number:

Brake Pipings
01/02 (-3802)
02/02 (3802-)

» 43250 PIPE NO.1,BRAKE-A.B.

Part Number Qty. Specifications Price
LA3143250B 1 - 930802
LV**1 -536367
LV52** -600001
LB4043250A 1 930802 -
LV**1 536367-
LV52**600001-

» 43360 PIPE,BRAKE

Part Number Qty. Specifications Price
LA3143360B 1

» 43370 PIPE,BRAKE

Part Number Qty. Specifications Price
LA3143370C 1

» 43609A PROTECTOR,BRAKE PIPE

Part Number Qty. Specifications Price
UC8643609 7 HIROSHIMA SEIKEN
- 930802
LV**1 -536367
LV52** -600001 € 1,39

» 43635 CLIP,FLEXIBLE HOSE

Part Number Qty. Specifications Price
W02343635 7 A (W023-43-635A)
930802 - 940927
LV**1 536367-
LV52**600001-704229 € 1,95
W02343635A 7 940927 -
LV52**704229- € 2,03

» 43650A PIPE(L),BRAKE-REAR

Part Number Qty. Specifications Price
LB4043660 1 930802 -
LV**1 536367-
LV52**600001- € 42,08

» 43660A PIPE(R),BRAKE-REAR

Part Number Qty. Specifications Price
LB4043650 1 930802 -
LV**1 536367-
LV52**600001- € 12,61

» 43694A BOLT,CONNECTOR

Part Number Qty. Specifications Price
B00143694A 4 A (G030-43-694)
930802 -
LV**1 536367-
LV52**600001- € 2,97

» 43810 HOSE,FLEXIBLE

Part Number Qty. Specifications Price
LB4043810 2 930802 -
LV**1 536367-
LV52**600001- € 31,24

» 43820C HOSE,FLEXIBLE

Part Number Qty. Specifications Price
LB4043820A 1 A (LB40-43-820B)
2WD
930802 -
LV**1 536367-
LV52**600001-
LB5243820A 1 A (LB52-43-820B)
4WD
930802 -
LV**1 536367-
LV52**600001-

» 43850B BRACKET,BRAKE HOSE

Part Number Qty. Specifications Price
LA0143850A 1

» 43900A VALVE,P.B.

Part Number Qty. Specifications Price
LB4043900 1 930802 -
LV**1 536367-
LV52**600001- € 193,09

» 43910 BRACKET,L.S.G.V

Part Number Qty. Specifications Price
LA3143910 1

» 43980 HOSE,FLEXIBLE

Part Number Qty. Specifications Price
LA0143980 2 A (LA01-43-980A)
2WD
€ 49,92
LA1243980 2 A (LA12-43-980A)
4WD

» 45280 PIPE(R),BRAKE-FRONT

Part Number Qty. Specifications Price
LA0145280A 1

» 45320 PIPE(L),BRAKE-FRONT

Part Number Qty. Specifications Price
LA3145320 1
€ 12,73

» 45350 PIPE,BRAKE-REAR

Part Number Qty. Specifications Price
LA3145350 1

» 45360A PIPE,BRAKE-REAR

Part Number Qty. Specifications Price
LA3145360 1 - 930802
LV**1 -536367
LV52** -600001
LB4045360B 1 930802 -
LV**1 536367-
LV52**600001-

» 45454 JOINT,PIPE

Part Number Qty. Specifications Price
D00145367 1
€ 10,02

» 45915A HOLDER,PIPE

Part Number Qty. Specifications Price
B00145915 4
€ 2,42

» 45916 HOLDER,PIPE

Part Number Qty. Specifications Price
B00145916 1 ILLUST. NO.1
€ 2,04
H00245916 1 ILLUST. NO.2
€ 1,67

» 45961B CAP

Part Number Qty. Specifications Price
H00245961 2 2WD
€ 1,54

» 90780 BOLT

Part Number Qty. Specifications Price
997200616 1
€ 1,41

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400801 1
€ 1,64

» 99175 SCREW,TAPPING

Part Number Qty. Specifications Price
997860612 1
€ 1,58

» 99175 SCREW,TAPPING

Part Number Qty. Specifications Price
997860825 1
€ 1,88

» 99560 GASKET

Part Number Qty. Specifications Price
995621000 1
€ 2,06

Part Number	Qty.	Specifications	Price
LA3143250B	1	- 930802 LV1 -536367 LV52 -600001
LB4043250A	1	930802 - LV1 536367- LV52600001-

Part Number	Qty.	Specifications	Price
W02343635	7	A (W023-43-635A) 930802 - 940927 LV1 536367- LV52600001-704229	€ 1,95
W02343635A	7	940927 - LV52704229-**	€ 2,03

Part Number	Qty.	Specifications	Price
LA0143980	2	A (LA01-43-980A) 2WD	€ 49,92
LA1243980	2	A (LA12-43-980A) 4WD
