Front Differentials 01/03 02/03 03/03

Front Differentials |

Mazda parts catalog

Parts > Mazda MPV > 0- > Chassis Axle Suspension,brake & Steering > Front Differentials

Search by part number:

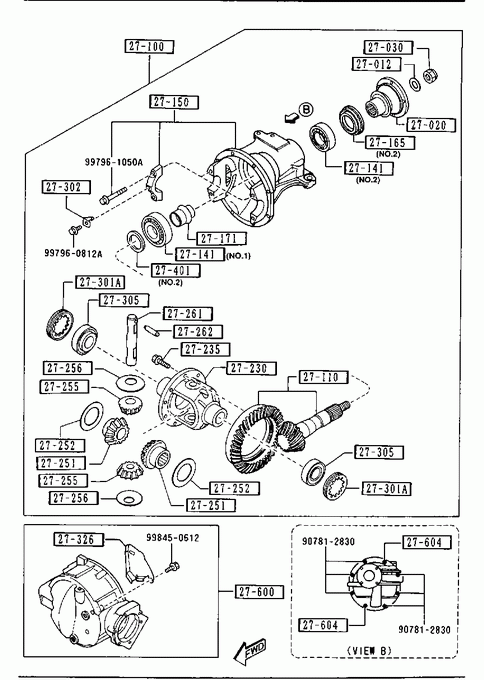

Front Differentials(4wd)

WASHER

Part Number	Qty.	Specifications	Price
022327012	1		€ 4,04

» 27020

FLANGE,COMPANION

Part Number	Qty.	Specifications	Price
M0A327120	1	- 950201 LV52 -712824**
M0A327120A	1	950201 - LV52712824-**

» 27030

NUT,LOCK

Part Number	Qty.	Specifications	Price
022327030	1		€ 3,76

» 27100

DRIVING & DIFF.

Part Number	Qty.	Specifications	Price
M0A427100A	1

» 27110

GEAR SET,FINAL

Part Number	Qty.	Specifications	Price
M0A427110	1	R=4.100

» 27141

BEARING,PINION

Part Number	Qty.	Specifications	Price
022127210	1	ILLUST. NO.1	€ 35,41
075527210	1	ILLUST. NO.2	€ 42,29

» 27150

CARRIER,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
M0A327150A	1

» 27165

SEAL,OIL

Part Number	Qty.	Specifications	Price
M05327165	1	ILLUST. NO.2	€ 11,94
M0A327165	1	ILLUST. NO.1	€ 6,98

» 27171

PIECE,DISTANCE

Part Number	Qty.	Specifications	Price
030527171	1		€ 8,24

» 27230

CASE,DIFF. GEAR

Part Number	Qty.	Specifications	Price
M05327231	1		€ 140,30

» 27235

BOLT,RING GEAR

Part Number	Qty.	Specifications	Price
805127235	10	D=10.2MM	€ 2,03
805127236	10	D=10.0MM	€ 2,05

» 27251

GEAR,DIFF.SIDE

Part Number	Qty.	Specifications	Price
M05327251	2	AN (M053-27-251A)	€ 32,43

» 27252

WASHER,THRUST

Part Number	Qty.	Specifications	Price
029027252	2	T=2MM - 930701 LV1 -536326**	€ 3,29
029027253	2	T=2.1MM - 930701 LV1 -536326**	€ 3,64
029027254	2	T=2.2MM - 930701 LV1 -536326**	€ 3,33
029027256	2	T=2.05MM - 930701 LV1 -536326**	€ 4,66
029027257	2	930701 - LV1 536326-**	€ 3,86
029027259	2	T=2.15MM - 930701 LV1 -536326**	€ 3,33

» 27255

PINION,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
M02527255B	2	A (M025-27-255C)	€ 27,87

» 27256

WASHER,THRUST

Part Number	Qty.	Specifications	Price
M02527256	2	T=2.0MM	€ 3,36

» 27261

SHAFT,DIFF. PINION

Part Number	Qty.	Specifications	Price
M02527261A	1		€ 11,74

» 27262

Part Number	Qty.	Specifications	Price
011427262	1		€ 1,96

» 27301A

SCREW,ADJUST

Part Number	Qty.	Specifications	Price
029027301	2		€ 4,85

» 27302

PLATE,LOCK

Part Number	Qty.	Specifications	Price
029027302	2		€ 1,83

» 27305

BEARING

Part Number	Qty.	Specifications	Price
022127350	2		€ 40,08

» 27326

PLATE,BAFFLE

Part Number	Qty.	Specifications	Price
M0A727326A	1

» 27401

SPACER

Part Number	Qty.	Specifications	Price
022327401A	1	T=3.08MM ILLUST. NO.2	€ 6,29
022327402A	1	T=3.11MM ILLUST. NO.2	€ 5,13
022327403A	1	T=3.14MM ILLUST. NO.2	€ 6,29
022327404A	1	T=3.17MM ILLUST. NO.2	€ 6,92
022327405A	1	T=3.2MM ILLUST. NO.2	€ 6,09
022327406A	1	T=3.23MM ILLUST. NO.2	€ 6,92
022327407A	1	T=3.26MM ILLUST. NO.2	€ 5,60
022327408A	1	T=3.29MM ILLUST. NO.2	€ 6,78
022327409A	1	T=3.32MM ILLUST. NO.2	€ 5,60
022327411A	1	T=3.35MM ILLUST. NO.2	€ 6,92
022327412A	1	T=3.38MM ILLUST. NO.2	€ 5,60
022327413A	1	T=3.41MM ILLUST. NO.2	€ 6,78
022327414A	1	T=3.44MM ILLUST. NO.2	€ 5,60
022327415A	1	T=3.47MM ILLUST. NO.2	€ 5,69
022327416	1	T=3.095MM ILLUST. NO.2 950301 - LV52715468-**	€ 6,71
022327417	1	T=3.125MM ILLUST. NO.2 950301 - LV52715468-**	€ 6,71
022327418	1	T=3.155MM ILLUST. NO.2 950301 - LV52715468-**	€ 6,71
022327419	1	T=3.185MM ILLUST. NO.2 950301 - LV52715468-**	€ 6,71
022327422	1	T=3.215MM ILLUST. NO.2 950301 - LV52715468-**	€ 6,71
022327423	1	T=3.245MM ILLUST. NO.2 950301 - LV52715468-**	€ 6,71
022327424	1	T=3.275MM ILLUST. NO.2 950301 - LV52715468-**	€ 6,71
022327425	1	T=3.305MM ILLUST. NO.2 950301 - LV52715468-**	€ 6,71
022327426	1	T=3.335MM ILLUST. NO.2 950301 - LV52715468-**	€ 6,71
022327427	1	T=3.365MM ILLUST. NO.2 950301 - LV52715468-**	€ 6,71
022327428	1	T=3.395MM ILLUST. NO.2 950301 - LV52715468-**	€ 6,71
022327433	1	T=3.425MM ILLUST. NO.2 950301 - LV52715468-**	€ 6,71
022327434	1	T=3.455MM ILLUST. NO.2 950301 - LV52715468-**	€ 6,58
M0A327401	2	T=0.15MM ILLUST. NO.1	€ 3,62
M0A327402	2	T=0.3MM ILLUST. NO.1	€ 3,62

» 27600

CASING,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
M0A327600A	1		€ 694,35

» 27604

BOLT

Part Number	Qty.	Specifications	Price
M05327605	2		€ 3,04

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998450612	1		€ 2,32

» 90781

BOLT & WASHER

Part Number	Qty.	Specifications	Price
907812830	1		€ 2,06

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960812A	1		€ 1,24

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961050A	1		€ 2,57

Front Differentials(4wd)
