Mazda MPV LV 0- Mazda Transfer Gears

Mazda parts catalog

Parts > Mazda MPV > 0- > Gasoline-engine V6-cylinder Transmission > Transfer Gears(automatic Transmission)(4wd)

Search by part number:

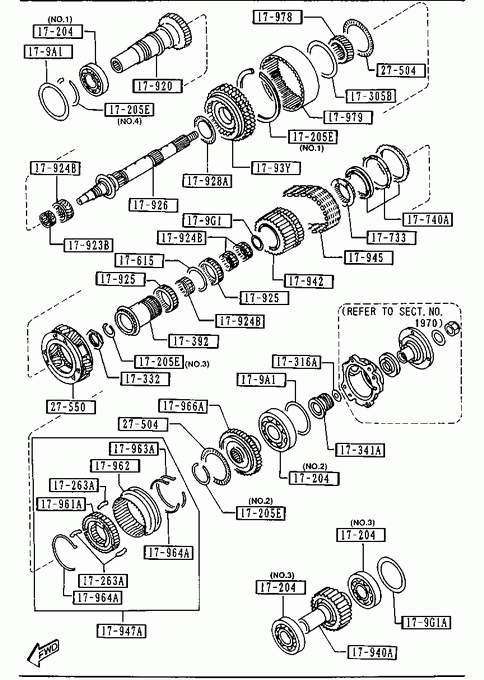

Transfer Gears(automatic Transmission)(4wd)

BEARING,BALL-MAIN SHAFT

Part Number	Qty.	Specifications	Price
R50317204	1	O=100/I=55/W=33.3 ILLUST. NO.1
R50417204	1	O=100/I=45/W=25 ILLUST. NO.2
R50517204	2	O=90/I=50/W=20 ILLUST. NO.3

» 17205E

RING,RETAINING

Part Number	Qty.	Specifications	Price
R50317205	1	O=156.8/I=152.8 ILLUST. NO.1
R50417205	1	O=69.3/I=59.3 ILLUST. NO.2
R50517205	1	O=45.4/I=38.9 ILLUST. NO.3
R50617205	1	O=61.3/I=51.3 ILLUST. NO.4

» 17263A

KEY,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
W52117263	3

» 17305B

WASHER,THRUST

Part Number	Qty.	Specifications	Price
R50117305	1

» 17316A

SPACER

Part Number	Qty.	Specifications	Price
R50517316	1

» 17332

NUT,LOCK-GEAR

Part Number	Qty.	Specifications	Price
R50217629	1

» 17341A

GEAR,SPEEDO.DRIVE

Part Number	Qty.	Specifications	Price
R50317341A	1

» 17392

SPACER

Part Number	Qty.	Specifications	Price
R50117944	1

» 17615

SPACER

Part Number	Qty.	Specifications	Price
R50417316	1

» 17733

HUB,INNER CORN

Part Number	Qty.	Specifications	Price
R50117733	1

» 17740A

CORN,DOUBLE

Part Number	Qty.	Specifications	Price
R50217740A	1

» 17920

GEAR,INPUT

Part Number	Qty.	Specifications	Price
BV1217920A	1		€ 319,98

» 17923B

BEARING,NEEDLE

Part Number	Qty.	Specifications	Price
R50117923	1

» 17924B

BEARING,NEEDLE

Part Number	Qty.	Specifications	Price
R50117924	4

» 17925

BEARING,NEEDLE

Part Number	Qty.	Specifications	Price
R50117925	2

» 17926

SHAFT,OUTPUT-REAR

Part Number	Qty.	Specifications	Price
R50117926A	1

» 17928A

BEARING,NEEDLE

Part Number	Qty.	Specifications	Price
R50117928	1

» 1793Y

CARRIPER,PLANET

Part Number	Qty.	Specifications	Price
BV121793Y	1

» 17940A

SPROCKET,FRONT DRIVE

Part Number	Qty.	Specifications	Price
R50117940	1

» 17942

SPROCKET,DRIVE

Part Number	Qty.	Specifications	Price
R50117942A	1

» 17945

CHAIN,SPROKET-FRONT DRIVE

Part Number	Qty.	Specifications	Price
R50117945C	1	A (R501-17-945D)

» 17947A

HUB,CLUTCH-2W & 4W

Part Number	Qty.	Specifications	Price
R50117960A	1

» 17961A

HUB,CLUTCH 2-4

Part Number	Qty.	Specifications	Price
R50117961	1

» 17962

SLEEVE,HUB 2-4

Part Number	Qty.	Specifications	Price
R50117962	1

» 17963A

RING,RETAINING

Part Number	Qty.	Specifications	Price
R50117963	1

» 17964A

SPRING,KEY

Part Number	Qty.	Specifications	Price
R50117964	2

» 17966A

GEAR,CLUTCH

Part Number	Qty.	Specifications	Price
R50117966	1

» 17978

GEAR,SUN

Part Number	Qty.	Specifications	Price
R50117978	1

» 17979

GEAR,RING C/D

Part Number	Qty.	Specifications	Price
R50117979	1

» 179A1

SHIM,ADJUST

Part Number	Qty.	Specifications	Price
R501179A1	2	T=0.5MM
R501179B1	2	T=0.6MM
R501179C1	2	T=0.7MM
R501179D1	2	T=0.8MM
R501179E1	2	T=0.9MM
R501179F1	2	T=1MM

» 179G1

SHIM,ADJUST

Part Number	Qty.	Specifications	Price
R501179G1	1	T=5.3MM
R501179H1	1	T=5.5MM
R501179J1	1	T=5.7MM
R501179K1	1	T=5.9MM
R501179L1	1	T=6.1MM
R501179M1	1	T=6.3MM
R501179N1	1	T=6.5MM
R501179P1	1	T=6.7MM

» 179G1A

SHIM,ADJUST

Part Number	Qty.	Specifications	Price
R502179A1	1	T=0.5MM
R502179B1	1	T=0.6MM
R502179C1	1	T=0.7MM
R502179D1	1	T=0.8MM
R502179E1	1	T=0.9MM
R502179F1	1	T=1.0MM
R502179G1	1	T=1.1MM
R502179H1	1	T=1.2MM
R502179J1	1	T=1.3MM
R502179K1	1	T=1.4MM
R502179L1	1	T=1.5MM
R502179M1	1	T=1.6MM

» 27504

BEARING,NEEDLE

Part Number	Qty.	Specifications	Price
G0A027511	2		€ 26,28

» 27550

CARRIER,PLANET-RING GEAR

Part Number	Qty.	Specifications	Price
G0A027550	1	A (G0A0-27-550A)	€ 312,61

Transfer Gears(automatic Transmission)(4wd)
