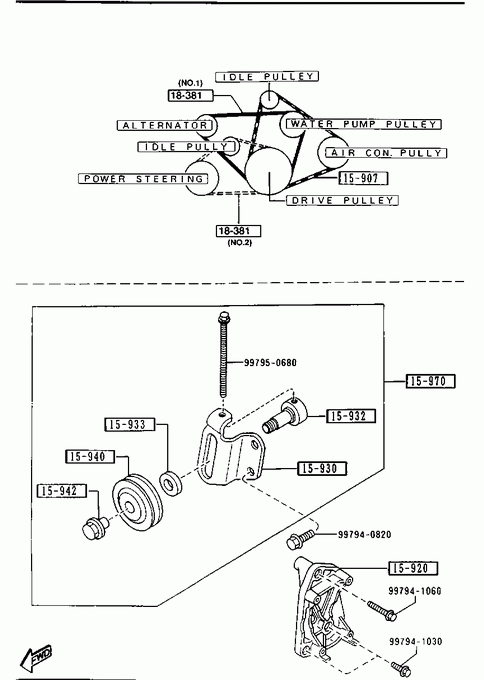

Bracket, Pulley & Belt(single Air Conditioner)(2600cc)
-
» 15907 BELT'V' Part Number Qty. Specifications Price G60315908 1 A 45.4 L=1155 V.BELT € 10,57 » 15920 BRACKET,COMPRESSOR Part Number Qty. Specifications Price G60315811 1 » 15930 BRACKET,IDLE PULLEY Part Number Qty. Specifications Price G60315951 1 » 15932 SHAFT,PULLEY Part Number Qty. Specifications Price AM1515932B 1 » 15933 COLLAR,COMP.BRKT Part Number Qty. Specifications Price JE1715933 1 » 15940 PULLEY,IDLE Part Number Qty. Specifications Price JE1715940 1 » 15942 COLLAR,COMP.BRKT-PULLEY Part Number Qty. Specifications Price AM1515942 1 » 15970 PULLEY,IDLE Part Number Qty. Specifications Price G60315930 1 » 18381 BELT'V' Part Number Qty. Specifications Price 839718381A 1 SP RAF-2 A-36.2
ILLUST. NO.2€ 23,31 G60118381 1 SP AUTO-FLEX-2 A41.1
ILLUST. NO.1€ 23,97 » 90780 BOLT Part Number Qty. Specifications Price 997941060 1 € 2,24 » 90780 BOLT Part Number Qty. Specifications Price 997950680 1 € 0,89 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940820 1 € 1,24 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997941030 1 € 2,06
