Mazda MPV LV 1993-10 Mazda Brake Pedals

Mazda parts catalog

Parts > Mazda MPV > 1993-10 > Chassis Piping & Fuel Tank > Brake Pedals(automatic Transmission)

Search by part number:

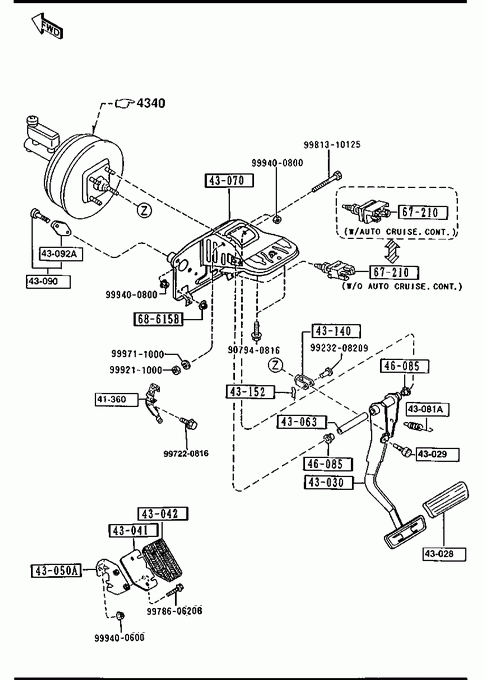

Brake Pedals(automatic Transmission)
» 41360 HOLDER,CLUTCH

Part Number Qty. Specifications Price
LA0241370C 1
€ 5,19

» 43028 PAD,PEDAL

Part Number Qty. Specifications Price
022543028A 1
€ 5,51

» 43029 RUBBER,STOPPER

Part Number Qty. Specifications Price
B00143029 1 KUROISHI TEKKO
€ 1,90

» 43030 PEDAL,BRAKE

Part Number Qty. Specifications Price
LA0443030 1 AN (LA04-43-030A)
- 950401
LV52** -717946
LA0443030A 1 C (LA04-43-030B)
950401 -
LV52**717946-

» 43041 REST,FOOT

Part Number Qty. Specifications Price
L00143041 1
€ 7,13

» 43042 PAD,FOOT REST

Part Number Qty. Specifications Price
FB0143042 1
€ 5,22

» 43050A BRACKET

Part Number Qty. Specifications Price
LA8343050 1
€ 13,26

» 43063 SPACER

Part Number Qty. Specifications Price
LA0143063 1

» 43070 BRACKET,MASTER CYL.

Part Number Qty. Specifications Price
LA0443070E 1

» 43081A SPRING,RETURN-BRAKE

Part Number Qty. Specifications Price
B09241081 1
€ 2,81

» 43090 PLATE

Part Number Qty. Specifications Price
FB0243090A 1 A (FB02-43-090B)
- 950510
LV52** -718454
FB0243090B 1 950510 -
LV52**718454-

» 43092A PLATE

Part Number Qty. Specifications Price
152543092 1
€ 5,53

» 43140 FORK,BRAKE

Part Number Qty. Specifications Price
030543141 1
€ 4,51

» 43152 PIN,SNAP

Part Number Qty. Specifications Price
D00143152 1
€ 1,43

» 46085 BUSH

Part Number Qty. Specifications Price
101546085 2
€ 2,44

» 67210 SWITCH,STOP LAMP

Part Number Qty. Specifications Price
B00166490A 1 AN (B001-66-490B)
W/O AUTO CRUISE.CONT.
€ 10,93
BR7066490A 1 W/AUTO CRUISE.CONT.
€ 11,37

» 68615B NUT,FLANGE-CAP

Part Number Qty. Specifications Price
B10068615 1
€ 0,93

» 90780 BOLT

Part Number Qty. Specifications Price
997220816 1
€ 1,26

» 90780 BOLT

Part Number Qty. Specifications Price
9981310125 1
€ 3,19

» 90794 BOLT & WASHER,FLANGE

Part Number Qty. Specifications Price
907940816 1
€ 2,11

» 90901 NUT

Part Number Qty. Specifications Price
999211000 1
€ 2,87

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400600 1
€ 1,24

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400800 1
€ 1,54

» 99175 SCREW,TAPPING

Part Number Qty. Specifications Price
997860620B 1
€ 2,00

» 99230 PIN,JOINT

Part Number Qty. Specifications Price
9923208209 1

» 99971 WASHER,SPRING

Part Number Qty. Specifications Price
999711000 1
€ 0,51

Part Number	Qty.	Specifications	Price
B00143029	1	KUROISHI TEKKO	€ 1,90

Part Number	Qty.	Specifications	Price
LA0443030	1	AN (LA04-43-030A) - 950401 LV52 -717946**
LA0443030A	1	C (LA04-43-030B) 950401 - LV52717946-**

Part Number	Qty.	Specifications	Price
FB0243090A	1	A (FB02-43-090B) - 950510 LV52 -718454**
FB0243090B	1	950510 - LV52718454-**

Part Number	Qty.	Specifications	Price
B00166490A	1	AN (B001-66-490B) W/O AUTO CRUISE.CONT.	€ 10,93
BR7066490A	1	W/AUTO CRUISE.CONT.	€ 11,37

Brake Pedals(automatic Transmission)
