Clutches & Planetary Gears 01/02 02/02

Clutches & Planetary Gears |

Mazda parts catalog

Parts > Mazda MPV > 1993-10 > Gasoline-engine V6-cylinder Transmission > Clutches & Planetary Gears

Search by part number:

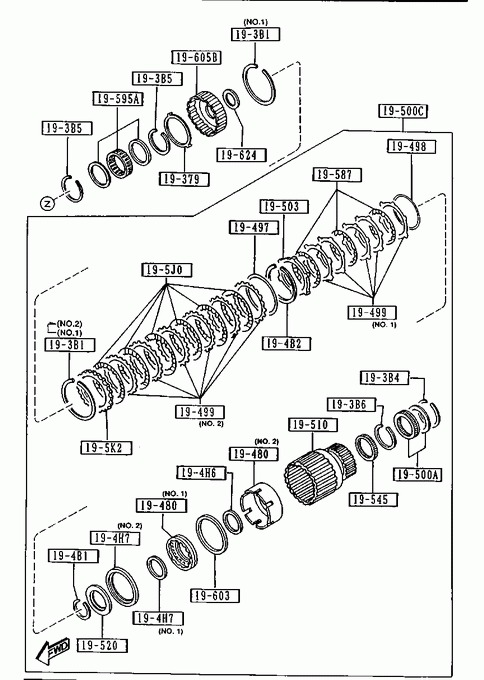

Clutches & Planetary Gears(automatic ; Electronic Control)

01/02
02/02

» 19379

WASHER,TRUST

Part Number	Qty.	Specifications	Price
BV1119379	2		€ 3,25

» 193B1

RING,SNAP

Part Number	Qty.	Specifications	Price
BV11193B1	2	ILLUST. NO.1 - 940901 LV52 -702019**
BV12193B1	1	ILLUST. NO.2 940901 - LV52702019-**

» 193B4

RING,SNAP

Part Number	Qty.	Specifications	Price
BV11193B4	1

» 193B5

RING,SNAP

Part Number	Qty.	Specifications	Price
BV11193B5A	2		€ 4,32

» 193B6

RING,SNAP

Part Number	Qty.	Specifications	Price
BV11193B6	1

» 19480

PISTON,CLUTCH

Part Number	Qty.	Specifications	Price
BV1119480	1	ILLUST. NO.2 - 950118 LV52 -711883**
BV45193F0	1	ILLUST. NO.1
BV5619480	1	ILLUST. NO.2 950118 - LV52711883-**

» 19497

PLATE,DISHED

Part Number	Qty.	Specifications	Price
BV1119497	1

» 19498

PLATE,DISHED

Part Number	Qty.	Specifications	Price
BV1119498	1		€ 12,12

» 19499

PLATE,DRIVEN

Part Number	Qty.	Specifications	Price
BV1119499	5	ILLUST. NO.1	€ 10,01
BV4519499	6	ILLUST. NO.2 - 950118 LV52 -711883**	€ 9,28
BV5619499	6	ILLUST. NO.2 950118 - LV52711883-**	€ 6,59

» 194B1

RING,SNAP

Part Number	Qty.	Specifications	Price
BV30194B1	1		€ 2,10

» 194B2

RING,SNAP

Part Number	Qty.	Specifications	Price
BV11194B2	1

» 194H6

SEAL,LATHE CUT

Part Number	Qty.	Specifications	Price
BV11194H6	1		€ 6,05

» 194H7

SEAL,PISTON

Part Number	Qty.	Specifications	Price
BV11194H7	1	ILLUST. NO.1	€ 6,92
BV30194H7	1	ILLUST. NO.2	€ 7,84

» 19500A

CLUTCH & ONE WAY

Part Number	Qty.	Specifications	Price
BV1119651	1		€ 97,83

» 19500C

CLUTCH

Part Number	Qty.	Specifications	Price
BV1119500A	1	- 950118 LV52 -711883**
BV1219500	1	950118 - LV52711883-**

» 19503

PLATE,RETAINING

Part Number	Qty.	Specifications	Price
BV1119503	1	T=4.0MM
BV1119504	1	T=4.2MM
BV1119505	1	T=4.4MM
BV1119506	1	T=4.6MM	€ 44,67
BV1119507	1	T=4.8MM
BV1119508	1	T=5.0MM
BV11195K9	1	T=5.2MM

» 19510

CLUTCH,REAR

Part Number	Qty.	Specifications	Price
BV1119510A	1

» 19520

RETAINER,SPRING-CLU.ONE W

Part Number	Qty.	Specifications	Price
BV1119520	1

» 19545

BEARING,NEEDLE

Part Number	Qty.	Specifications	Price
BV5619545	1

» 19587

PLATE

Part Number	Qty.	Specifications	Price
BV1119587	3		€ 23,36

» 19595A

CLUTCH,ONE WAY

Part Number	Qty.	Specifications	Price
BV1119595	1		€ 156,57

» 195J0

PLATE,DRIVE

Part Number	Qty.	Specifications	Price
BV11195J0	6	- 950118 LV52 -711883**	€ 15,20
BV56195J0	6	950118 - LV52711883-**	€ 15,45

» 195K2

PLATE,RETAINING

Part Number	Qty.	Specifications	Price
BV11195K2	1	T=4MM - 950118 LV52 -711883**
BV11195K3	1	T=4.2MM - 950118 LV52 -711883**	€ 19,92
BV11195K4	1	T=4.4MM - 950118 LV52 -711883**
BV11195K5	1	T=4.6MM - 950118 LV52 -711883**
BV11195K6	1	T=4.8MM - 950118 LV52 -711883**
BV11195K7	1	T=5MM - 950118 LV52 -711883**
BV11195K8	1	T=5.2MM - 950118 LV52 -711883**
BV35195K2	1	T=8.0MM 950118 - LV52711883-**
BV35195K3	1	T=8.2MM 950118 - LV52711883-**
BV35195K4	1	T=8.4MM 950118 - LV52711883-**	€ 34,75
BV35195K5	1	T=8.6MM 950118 - LV52711883-**
BV35195K6	1	T=8.8MM 950118 - LV52711883-**
BV35195K7	1	T=9.0MM 950118 - LV52711883-**
BV35195K8	1	T=9.2MM 950118 - LV52711883-**

» 19603

SEAL,PISTON

Part Number	Qty.	Specifications	Price
BV1119603	1		€ 22,66

» 19605B

HUB

Part Number	Qty.	Specifications	Price
BV1119605	1

» 19624

BEARING,NEEDLE

Part Number	Qty.	Specifications	Price
BV5519304	1		€ 11,94

Clutches & Planetary Gears(automatic ; Electronic Control)
