Mazda MPV LV 1989-06 Mazda Engine Switches & Relays

Mazda parts catalog

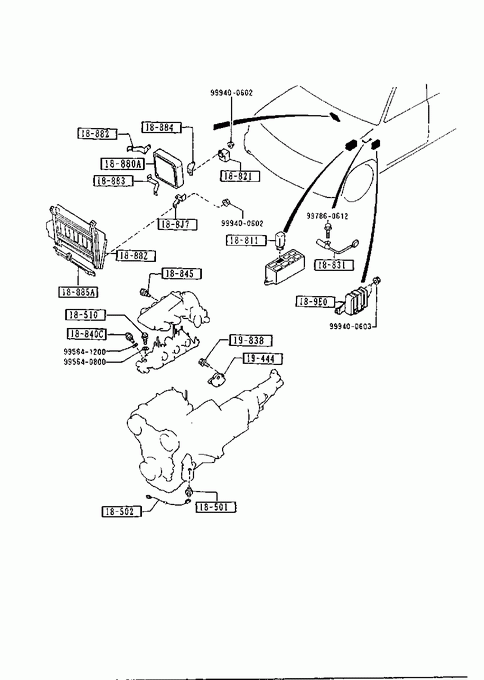

Parts > Mazda MPV > 1989-06 > Body Electronics > Engine Switches & Relays

Search by part number:

Engine Switches & Relays

SWITCH,OIL PRESSURE

Part Number	Qty.	Specifications	Price
JF0118501	1	A (JF01-18-501A) - 910425 LV10E2 -100380	€ 15,05
JF0118501A	1	910425 - LV10E2100380-	€ 15,66

» 18502

CORD,PRESSURE SWITCH

Part Number	Qty.	Specifications	Price
JE1518502A	1		€ 10,79

» 18510

UNIT,HEAT GAUGE

Part Number	Qty.	Specifications	Price
JE151851X	1	PANASONIC	€ 29,08

» 18811

RELAY,MAIN

Part Number	Qty.	Specifications	Price
JE1618811	1	DENSO	€ 55,78

» 18821

RELAY,FUEL PUMP

Part Number	Qty.	Specifications	Price
N23618821	1		€ 97,40

» 18831

RESISTOR

Part Number	Qty.	Specifications	Price
JE1618831	1

» 18840C

SENSOR,TEMP.-ENG.COOLANT

Part Number	Qty.	Specifications	Price
857418840	1	DENSO - 910701 LV10E3 -100001	€ 48,61
B3C818840	1	DENSO 910701 - LV10E3100001-	€ 38,73

» 18845

SENSOR,IN.AIR TEMP

Part Number	Qty.	Specifications	Price
N32618845	1		€ 49,68

» 18880A

MODULE,POWERTRAIN CONTROL

Part Number	Qty.	Specifications	Price
JE3118881A	1	A (JET2-18-881)

» 18882

BRACKET,CONTROL UNIT

Part Number	Qty.	Specifications	Price
JE1518882	1

» 18883

BRACKET,CONTROL UNIT

Part Number	Qty.	Specifications	Price
JE1518883	1

» 18884

BRACKET,CONTROL UNIT

Part Number	Qty.	Specifications	Price
JE15188J9A	1

» 18885A

BRACKET,CONTROL UNIT

Part Number	Qty.	Specifications	Price
JE1518885	1

» 1888Z

COVER,CONTROL UNIT

Part Number	Qty.	Specifications	Price
JE151888Z	1

» 188J7

BRACKET,CONTROL UNIT

Part Number	Qty.	Specifications	Price
JE1518884	1

» 189E0

MODULE,PWT.CONT.-A/T

Part Number	Qty.	Specifications	Price
JE46189E1	1	A (JE46-18-9E1A) - 891101 LV10E1 -100054
JE46189E1A	1	A (JE46-18-9E1B) 891101 - 900130 LV10E1100054-100089
JE46189E1B	1	900130 - LV10E1100089-

» 19444

SWITCH,INHIBITOR

Part Number	Qty.	Specifications	Price
BV1119444	1		€ 65,17

» 19838

BOLT-HEX,HD WASHER

Part Number	Qty.	Specifications	Price
BV1119429	3		€ 0,91

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400602	1		€ 1,28

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400603	1		€ 2,05

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860612	1		€ 1,58

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995640800	1		€ 0,62

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995641200	1		€ 0,73
