Clutches & Planetary Gears 01/02 02/02

Clutches & Planetary Gears |

Mazda parts catalog

Parts > Mazda MPV > 1989-06 > Gasoline-engine V6-cylinder Transmission > Clutches & Planetary Gears

Search by part number:

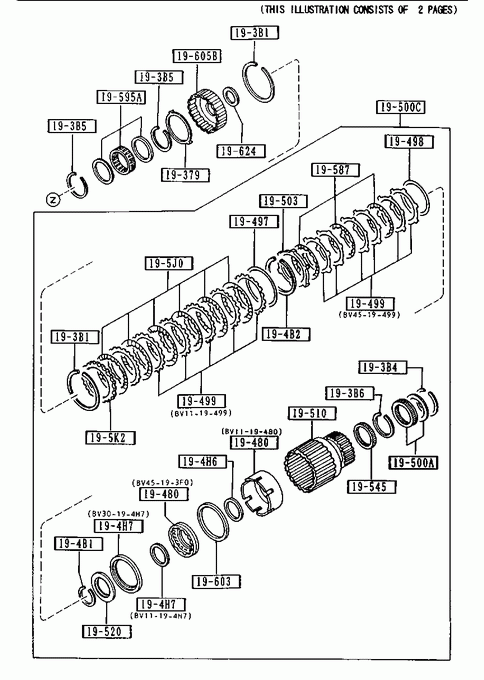

Clutches & Planetary Gears(automatic ; Electronic Control)

01/02
02/02

» 19379

WASHER,TRUST

Part Number	Qty.	Specifications	Price
BV1119379	2		€ 3,25

» 193B1

RING,SNAP

Part Number	Qty.	Specifications	Price
BV11193B1	2

» 193B4

RING,SNAP

Part Number	Qty.	Specifications	Price
BV11193B4	1

» 193B5

RING,SNAP

Part Number	Qty.	Specifications	Price
BV11193B5	2	AN (BV11-19-3B5A) - 901201 LV10E2 -100180
BV11193B5A	2	901201 - LV10E2100180-	€ 4,32

» 193B6

RING,SNAP

Part Number	Qty.	Specifications	Price
BV11193B6	1

» 19480

PISTON,CLUTCH

Part Number	Qty.	Specifications	Price
BV1119480	1
BV45193F0	1

» 19497

PLATE,DISHED

Part Number	Qty.	Specifications	Price
BV1119497	1

» 19498

PLATE,DISHED

Part Number	Qty.	Specifications	Price
BV1119498	1		€ 12,12

» 19499

PLATE,DRIVEN

Part Number	Qty.	Specifications	Price
BV1119499	5		€ 10,01
BV4519499	6		€ 9,28

» 194B1

RING,SNAP

Part Number	Qty.	Specifications	Price
BV11194B1	1

» 194B2

RING,SNAP

Part Number	Qty.	Specifications	Price
BV11194B2	1

» 194H6

SEAL,LATHE CUT

Part Number	Qty.	Specifications	Price
BV11194H6	1		€ 6,05

» 194H7

SEAL,PISTON

Part Number	Qty.	Specifications	Price
BV11194H7	1		€ 6,92
BV30194H7	1		€ 7,84

» 19500A

CLUTCH & ONE WAY

Part Number	Qty.	Specifications	Price
BV1119651	1		€ 97,83

» 19500C

CLUTCH

Part Number	Qty.	Specifications	Price
BV1119500	1	AN (BV11-19-500A)

» 19503

PLATE,RETAINING

Part Number	Qty.	Specifications	Price
BV1119503	1	T=4.0MM
BV1119504	1	T=4.2MM
BV1119505	1	T=4.4MM
BV1119506	1	T=4.6MM	€ 44,67
BV1119507	1	T=4.8MM
BV1119508	1	T=5.0MM
BV11195K9	1	T=5.2MM

» 19510

CLUTCH,REAR

Part Number	Qty.	Specifications	Price
BV1119510	1	C (BV11-19-510A)

» 19520

RETAINER,SPRING-CLU.ONE W

Part Number	Qty.	Specifications	Price
BV1119520	1

» 19545

BEARING,NEEDLE

Part Number	Qty.	Specifications	Price
BV1119545	1	AN (BV56-19-545)

» 19587

PLATE

Part Number	Qty.	Specifications	Price
BV1119587	3		€ 23,36

» 19595A

CLUTCH,ONE WAY

Part Number	Qty.	Specifications	Price
BV1119595	1		€ 156,57

» 195J0

PLATE,DRIVE

Part Number	Qty.	Specifications	Price
BV11195J0	6		€ 15,20

» 195K2

PLATE,RETAINING

Part Number	Qty.	Specifications	Price
BV11195K2	1	T=4MM
BV11195K3	1	T=4.2MM	€ 19,92
BV11195K4	1	T=4.4MM
BV11195K5	1	T=4.6MM
BV11195K6	1	T=4.8MM
BV11195K7	1	T=5MM
BV11195K8	1	T=5.2MM

» 19603

SEAL,PISTON

Part Number	Qty.	Specifications	Price
BV1119603	1		€ 22,66

» 19605B

HUB

Part Number	Qty.	Specifications	Price
BV1119605	1	- 901201 LV10E2 -100180
BV3519605	1	901201 - LV10E2100180-

» 19624

BEARING,NEEDLE

Part Number	Qty.	Specifications	Price
BV1119304	1

Clutches & Planetary Gears(automatic ; Electronic Control)
