Mazda MPV LW 2003-09 Mazda Valve System

Mazda parts catalog

Parts > Mazda MPV > 2003-09 > Gasoline-engine 4-cylinder Transmission > Valve System(gasoline)(2300cc)

Search by part number:

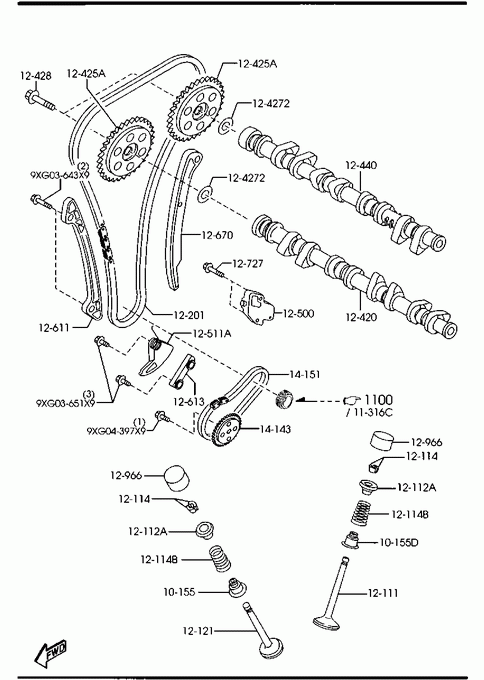

Valve System(gasoline)(2300cc)

SEAL,VALVE

Part Number	Qty.	Specifications	Price
L80710155	8		€ 4,22

» 10155D

SEAL,EXHAUST VALVE

Part Number	Qty.	Specifications	Price
LF01101F5	8		€ 4,85

» 12111

VALVE,INLET

Part Number	Qty.	Specifications	Price
LF0112111	8		€ 13,70

» 12112A

SEAT,VALVE SPG-UP.

Part Number	Qty.	Specifications	Price
LF0112113	16		€ 2,59

» 12114

COTTER,VALVE

Part Number	Qty.	Specifications	Price
LF0112114	32		€ 1,13

» 12114B

SPRING,VALVE

Part Number	Qty.	Specifications	Price
LF5012125	16	A (LF50-12-125A) - 050301 LW19 -309414**	€ 4,94
LF5012125A	16	050301 - LW19309414-**	€ 4,94

» 12121

VALVE,EXHAUST

Part Number	Qty.	Specifications	Price
LF0212121	8	A (LF02-12-121A) - 050201 LW19 -309414**	€ 15,63
LF0212121A	8	AN (LF02-12-121B) 050201 - LW19309414-**	€ 15,63

» 12201

CHAIN,TIMING

Part Number	Qty.	Specifications	Price
L30512201	1		€ 142,15

» 12420

CAMSHAFT

Part Number	Qty.	Specifications	Price
LF1712421	1		€ 358,68

» 12425A

PULLEY,CAMSHAFT

Part Number	Qty.	Specifications	Price
L30512425	2	041101 - LW19308653-**	€ 69,74
L32712425	2	AN (L305-12-425) - 041101 LW19 -308653**	€ 101,33

» 124272

WASHER

Part Number	Qty.	Specifications	Price
L3K912429	2	041201 - LW19309153-**	€ 7,03

» 12428

BOLT,LOCK CAMSHAFT PULLEY

Part Number	Qty.	Specifications	Price
LF1712428	2		€ 3,65

» 12440

CAMSHAFT,EXHAUST

Part Number	Qty.	Specifications	Price
LF1712441	1		€ 358,68

» 12500

ADJUSTER,CHAIN

Part Number	Qty.	Specifications	Price
LF0112500A	1		€ 145,64

» 12511A

ARM,CHAIN ADJUSTER

Part Number	Qty.	Specifications	Price
L30514500A	1	- 041201 LW19 -309153**	€ 13,83
L31J14500	1	041201 - LW19309153-**

» 12611

GUIDE,CHAIN

Part Number	Qty.	Specifications	Price
L30512614	1		€ 31,57

» 12613

GUIDE,CHAIN

Part Number	Qty.	Specifications	Price
L30514614	1	- 041201 LW19 -309153**
L31J14614	1	041201 - LW19309153-**

» 12670

LEVER,CHAIN

Part Number	Qty.	Specifications	Price
L30512671	1		€ 50,41

» 12727

BOLT,TENSIONER

Part Number	Qty.	Specifications	Price
LF1712717	2	AN (LF17-12-717A) - 041201 LW19 -309153**
LF1712717A	2	041201 - LW19309153-**

» 12966

DISC,ADJUSTING

Part Number	Qty.	Specifications	Price
LF0112541	16	T=3.000MM	€ 9,48
LF0112542	16	T=3.025MM	€ 9,48
LF0112543	16	T=3.050MM	€ 9,68
LF0112544	16	T=3.075MM	€ 9,68
LF0112545	16	T=3.100MM	€ 9,68
LF0112546	16	T=3.122MM	€ 9,48
LF0112547	16	T=3.142MM	€ 9,68
LF0112548	16	T=3.162MM	€ 9,68
LF0112549	16	T=3.182MM	€ 9,68
LF0112551	16	T=3.202MM	€ 9,68
LF0112552	16	T=3.222MM	€ 9,48
LF0112553	16	T=3.242MM	€ 9,48
LF0112554	16	T=3.262MM	€ 9,48
LF0112555	16	T=3.282MM	€ 9,68
LF0112556	16	T=3.302MM	€ 9,48
LF0112557	16	T=3.322MM	€ 9,68
LF0112558	16	T=3.342MM	€ 9,48
LF0112559	16	T=3.362MM	€ 9,48
LF0112561	16	T=3.382MM	€ 9,48
LF0112562	16	T=3.402MM	€ 9,48
LF0112563	16	T=3.422MM	€ 9,48
LF0112564	16	T=3.442MM	€ 9,48
LF0112565	16	T=3.462MM	€ 9,48
LF0112566	16	T=3.482MM	€ 9,68
LF0112567	16	T=3.502MM	€ 9,68
LF0112568	16	T=3.522MM	€ 9,68
LF0112569	16	T=3.542MM	€ 9,68
LF0112571	16	T=3.562MM	€ 9,68
LF0112572	16	T=3.582MM	€ 9,68
LF0112573	16	T=3.602MM	€ 9,68
LF0112574	16	T=3.625MM	€ 9,68
LF0112575	16	T=3.650MM	€ 9,68
LF0112576	16	T=3.675MM	€ 9,68
LF0112577	16	T=3.700MM	€ 9,68
LF0112578	16	T=3.725MM	€ 9,68

» 14143

SPROCKET,DRIVEN

Part Number	Qty.	Specifications	Price
L30514143	1	- 041201 LW19 -309153**
L31J14143	1	041201 - LW19309153-**

» 14151

CHAIN,OIL PUMP

Part Number	Qty.	Specifications	Price
L30514151	1	- 041201 LW19 -309153**	€ 54,90
L31J14151	1	041201 - LW19309153-**

» 99601

BOLT

Part Number	Qty.	Specifications	Price
9XG03643X9	1		€ 1,15

» 99601

BOLT

Part Number	Qty.	Specifications	Price
9XG03651X9	1

» 99601

BOLT

Part Number	Qty.	Specifications	Price
9XG04397X9	1

Valve System(gasoline)(2300cc)
