Mazda MPV LW 1999-06 Mazda Automatic Transmission Torque Converter, Oil Pump & Pipings

Mazda parts catalog

Parts > Mazda MPV > 1999-06 > Gasoline-engine V6-cylinder Transmission > Automatic Transmission Torque Converter, Oil Pump & Pipings

Search by part number:

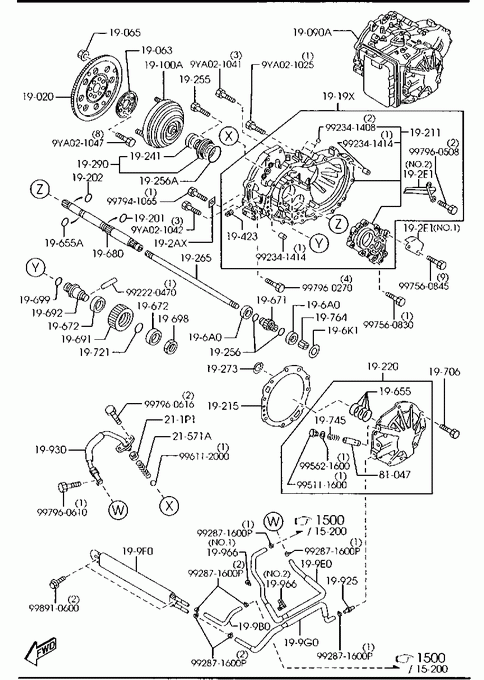

Automatic Transmission Torque Converter, Oil Pump & Pipings

» 19020

PLATE,DRIVE

Part Number	Qty.	Specifications	Price
GY0119020B	1

» 19063

PLATE,BACKING

Part Number	Qty.	Specifications	Price
GY0119063	1

» 19065

NUT

Part Number	Qty.	Specifications	Price
FU5119065	4		€ 1,35

» 19090A

AUTOMATIC T/MISSION CPT.

Part Number	Qty.	Specifications	Price
GF3A19090A	1	A (GF3A-19-090B) - 990801 LW19 -100569**
GF3A19090B	1	A (GF3A-19-090C) 990801 - 990830 LW19100569-101131**
GF3A19090D	1	990830 - 991025 LW19101131-102857**
GF3A19090H	1	A (GF3A-19-090J) 991025 - 991203 LW19102857-103970**
GF3A19090J	1	AN (GF3A-19-090K) 991203 - 000701 LW19103970-107534**
GF3A19090K	1	A (GF3A-19-090L) 000701 - 000901 LW19107534-108071**
GF3A19090L	1	A (GF3A-19-090M) 000901 - 010313 LW19108071-110393**	€ 6182,00
GF3A19090M	1	A (GF3A-19-090N) 010313 - 011001 LW19110393-112350**
GF3A19090P	1	AN (GF3A-19-090R) 011001 - LW19112350-**

» 19100A

CONVERTER,TORQUE

Part Number	Qty.	Specifications	Price
GF3219100A	1	A (GF32-19-100B) - 991025 LW19 -102857**
GF3219100B	1	A (GF32-19-100C) 991025 - LW19102857-**

» 1919X

HSG.SET,CONV. & COVER

Part Number	Qty.	Specifications	Price
GF301919XE	1	A (GF30-19-19XF) - 990801 LW19 -100569**
GF301919XF	1	990801 - LW19100569-**

» 19201

RING,'O'

Part Number	Qty.	Specifications	Price
FU0119201A	1		€ 2,35

» 19202

SEAL,'O'RING

Part Number	Qty.	Specifications	Price
FU5019202A	1		€ 2,21

» 19211

HOUSING,CONVERTER

Part Number	Qty.	Specifications	Price
GF3019190D	1	A (GF30-19-190E) - 990801 LW19 -100569**
GF3019190E	1	990801 - LW19100569-**

» 19215

GASKET,OIL PUMP

Part Number	Qty.	Specifications	Price
BN9719705	1	NON ASBESTOS	€ 7,48

» 19220

PUMP,OIL

Part Number	Qty.	Specifications	Price
FU9B19700A	1	AN (FU9B-19-700B)	€ 680,35

» 19241

SEAL,OIL

Part Number	Qty.	Specifications	Price
FU0119241A	1		€ 9,84

» 19255

BOLT

Part Number	Qty.	Specifications	Price
FU9A19255A	8		€ 0,53

» 19256

RING,SEAL

Part Number	Qty.	Specifications	Price
FU0119212B	2		€ 3,34

» 19256A

RING,SEAL

Part Number	Qty.	Specifications	Price
FU0119242A	1		€ 5,92

» 19265

SHAFT,OIL PUMP

Part Number	Qty.	Specifications	Price
FU9A19761	1	A (FU9A-19-761A)	€ 23,82

» 19273

RING,SNAP

Part Number	Qty.	Specifications	Price
FU5019755A	1		€ 1,00

» 19290

COVER,BEARING

Part Number	Qty.	Specifications	Price
FU9B192A0A	1	AN (FU9B-19-2A0B)	€ 70,14

» 192AX

NUT,LOCK

Part Number	Qty.	Specifications	Price
GF30192AX	1

» 192E1

PLATE,BAFFLE

Part Number	Qty.	Specifications	Price
FU32192E1A	1	ILLUST. NO.2	€ 0,58
GF30192E0	1	ILLUST. NO.1 - 990801 LW19 -100569**
GF32192E0	1	ILLUST. NO.1 990801 - LW19100569-**

» 19423

PLUG

Part Number	Qty.	Specifications	Price
FU3119423	4	991001 - LW19101686-**	€ 1,19
FU6019423A	4	- 991001 LW19 -101686**	€ 1,16

» 19655

RING,SEAL

Part Number	Qty.	Specifications	Price
FU0119701C	4	A (FU01-19-701D) - 991220 LW19 -104320**	€ 6,88
FU0119701D	4	991220 - LW19104320-**	€ 7,16

» 19655A

RING,SEAL

Part Number	Qty.	Specifications	Price
FU5019762A	1		€ 3,37

» 19671

GEAR,OUTPUT

Part Number	Qty.	Specifications	Price
GF3019671	1	- 991001 LW19 -101686**
GF3219671	1	991001 - LW19101686-**

» 19672

BEARING,ROLLER

Part Number	Qty.	Specifications	Price
FU31196B0A	2		€ 18,93

» 19680

SHAFT,TURBINE

Part Number	Qty.	Specifications	Price
FU9A19270	1	AN (FU9A-19-270A)	€ 122,80

» 19691

GEAR,IDLE

Part Number	Qty.	Specifications	Price
GF3019261	1	- 990801 LW19 -100569**
GF3219261	1	990801 - LW19100569-**

» 19692

SHAFT,IDLE GEAR

Part Number	Qty.	Specifications	Price
FU7B19262A	1	AN (GF32-19-262) - 990801 LW19 -100569**
GF3219262	1	990801 - 000701 LW19100569-107534**
GF3319262A	1	000701 - LW19107534-**

» 19698

NUT,IDLE GEAR

Part Number	Qty.	Specifications	Price
GF0119264	1		€ 5,48

» 19699

RING,'O'

Part Number	Qty.	Specifications	Price
FU7B19266	1		€ 1,75

» 196A0

BEARING,ROLLER

Part Number	Qty.	Specifications	Price
FU9A196A0	2		€ 19,82

» 196K1

SHIM,OUTPUT GEAR

Part Number	Qty.	Specifications	Price
FU31196M1	1	T=0.35MM	€ 5,33
FU31196M2	1	T=0.4MM	€ 5,33
FU31196M3	1	T=0.45MM	€ 5,33
FU9A196J8	1	T=0.5MM	€ 3,14
FU9A196J9	1	T=0.55MM	€ 3,76
FU9A196K1	1	T=0.6MM	€ 3,76
FU9A196K2	1	T=0.65MM	€ 3,76
FU9A196K3	1	T=0.7MM	€ 3,84
FU9A196K4	1	T=0.75MM	€ 3,76
FU9A196K5	1	T=0.8MM	€ 3,76
FU9A196K6	1	T=0.85MM	€ 3,76
FU9A196K7	1	T=0.9MM	€ 3,76
FU9A196K8	1	T=0.95MM	€ 3,92
FU9A196K9	1	T=1.0MM	€ 3,76
FU9A196L1	1	T=1.05MM	€ 3,76
FU9A196L2	1	T=1.1MM	€ 3,92
FU9A196L3	1	T=1.15MM	€ 3,76
FU9A196L4	1	T=1.2MM	€ 3,76
FU9A196L5	1	T=1.25MM	€ 3,76
FU9A196L6	1	T=1.3MM	€ 3,76
FU9A196L7	1	T=1.35MM	€ 3,84
FU9A196L8	1	T=1.4MM	€ 3,76
FU9A196M4	1	T=0.375MM	€ 3,98
FU9A196M5	1	T=0.425MM	€ 3,90
FU9A196M6	1	T=0.475MM	€ 3,90
FU9A196M7	1	T=0.525MM	€ 4,06
FU9A196M8	1	T=0.575MM	€ 3,90
FU9A196M9	1	T=0.625MM	€ 3,90
FU9A196N1	1	T=0.675MM	€ 3,90
FU9A196N2	1	T=0.725MM	€ 3,98
FU9A196N3	1	T=0.775MM	€ 3,90
FU9A196N4	1	T=0.825MM	€ 3,90
FU9A196N5	1	T=0.875MM	€ 4,06
FU9A196N6	1	T=0.925MM	€ 3,90
FU9A196N7	1	T=0.975MM	€ 3,90
FU9A196N8	1	T=1.025MM	€ 3,90
FU9A196N9	1	T=1.075MM	€ 3,90
FU9A196P1	1	T=1.125MM	€ 3,90
FU9A196P2	1	T=1.175MM	€ 3,90
FU9A196P3	1	T=1.225MM	€ 3,90
FU9A196P4	1	T=1.275MM	€ 3,90
FU9A196P5	1	T=1.325MM	€ 3,90
FU9A196P6	1	T=1.375MM	€ 3,90

» 19706

BOLT

Part Number	Qty.	Specifications	Price
FU0119706B	10		€ 0,92

» 19721

SHIM

Part Number	Qty.	Specifications	Price
FU9A192F5	1	T=4.540MM	€ 3,84
FU9A192F6	1	T=4.575MM	€ 3,76
FU9A192F7	1	T=4.610MM	€ 3,76
FU9A192F8	1	T=4.645MM	€ 3,84
FU9A192F9	1	T=4.680MM	€ 3,84
FU9A192G1	1	T=4.715MM	€ 3,92
FU9A192G2	1	T=4.750MM	€ 3,92
FU9A192G3	1	T=4.785MM	€ 3,84
FU9A192G4	1	T=4.820MM	€ 3,84
FU9A192G5	1	T=4.855MM	€ 3,84
FU9A192G6	1	T=4.890MM	€ 3,92
FU9A192G7	1	T=4.925MM	€ 3,92
FU9A192G8	1	T=4.960MM	€ 3,76
FU9A192G9	1	T=4.995MM	€ 3,92
FU9A192H1	1	T=5.030MM	€ 3,92
FU9A192H2	1	T=5.065MM	€ 3,92
FU9A192H3	1	T=5.100MM	€ 3,92
FU9A192H4	1	T=5.135MM	€ 3,84
FU9A192H5	1	T=5.170MM	€ 3,84
FU9A192H6	1	T=5.205MM	€ 3,84
FU9A192H7	1	T=5.240MM	€ 3,84
FU9A192H8	1	T=5.275MM	€ 3,84
FU9A192H9	1	T=5.310MM	€ 3,84

» 19745

SPRING

Part Number	Qty.	Specifications	Price
FU6119736A	1		€ 1,48

» 19764

SUPPORTER,BEARING-OUTPUT

Part Number	Qty.	Specifications	Price
FU3219764A	1		€ 6,71

» 19925

BOLT,CONNECTOR

Part Number	Qty.	Specifications	Price
GF2019925	1		€ 4,87

» 19930

PIPE,OIL

Part Number	Qty.	Specifications	Price
GF3019930E	1		€ 29,07

» 19966

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
EA01199B5	1	ILLUST. NO.1	€ 2,10
GF30199B5	1	ILLUST. NO.2

» 199B0

HOSE,OIL-OIL PUMP

Part Number	Qty.	Specifications	Price
FP01199B1	1	011123 - LW19112599-**	€ 5,44
GF30199B0	1	A (FP01-19-9B1) - 011123 LW19 -112599**

» 199E0

HOSE,OIL

Part Number	Qty.	Specifications	Price
GF30199E0A	1		€ 19,92

» 199F0

COOLER,OIL

Part Number	Qty.	Specifications	Price
GF30199F0A	1	A (GF31-19-9F0)

» 199G0

HOSE,OIL

Part Number	Qty.	Specifications	Price
GF30199G0	1		€ 22,84

» 211P1

GASKET

Part Number	Qty.	Specifications	Price
GF30211P1A	1

» 21571A

SPRING,PRESSURE HOLD

Part Number	Qty.	Specifications	Price
GF3021571B	1

» 81047

SPOOL

Part Number	Qty.	Specifications	Price
FU6119716D	1		€ 13,58

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997560845	1		€ 2,89

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997941065	1

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YA021025	1

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YA021041	1		€ 2,05

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YA021042	1		€ 1,40

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YA021047	1

» 90901

NUT

Part Number	Qty.	Specifications	Price
998910600	1		€ 1,79

» 99222

PIN,SPRING

Part Number	Qty.	Specifications	Price
992220470	1		€ 1,50

» 99234

PIN,TUBULAR

Part Number	Qty.	Specifications	Price
992341408	1		€ 1,94

» 99234

PIN,TUBULAR

Part Number	Qty.	Specifications	Price
992341414	1		€ 1,92

» 99274

CLIP

Part Number	Qty.	Specifications	Price
992871600P	1		€ 2,93

» 99305

PLUG

Part Number	Qty.	Specifications	Price
995111600	1		€ 0,86

» 99520

BALL

Part Number	Qty.	Specifications	Price
996112000	1		€ 1,85

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995621600	1		€ 1,65

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997560830	1		€ 2,87

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960270	1		€ 1,92

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960508	1		€ 0,28

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960610	1		€ 0,69

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960616	1		€ 0,81
