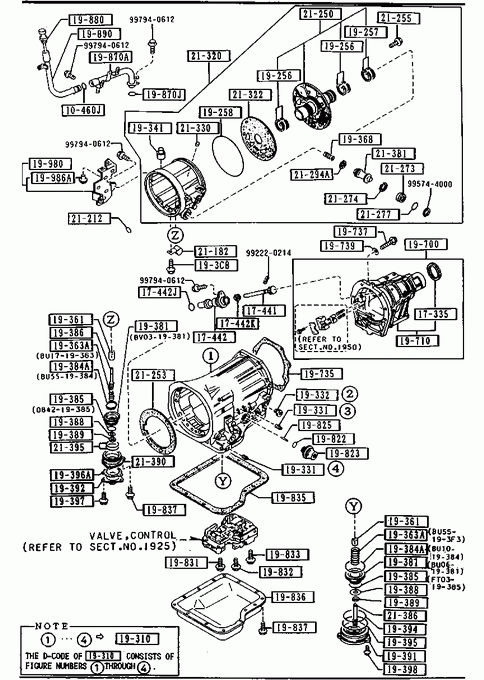

Automatic Transmission Case & Main Control System
-
» 10460J RING,'O' Part Number Qty. Specifications Price 9954101201 1 € 2,06 » 17335 SEAL,OIL Part Number Qty. Specifications Price M50717335 1 A (M507-17-335A) € 17,71 » 17441 GEAR,DRIVEN Part Number Qty. Specifications Price BU5517441 1 » 17442 SLEEVE,SPEEDOMETER Part Number Qty. Specifications Price BU5517442 1 » 17442J RING,'O' Part Number Qty. Specifications Price 101117443 1 € 3,00 » 17442K SEAL,OIL Part Number Qty. Specifications Price 9958608166 1 € 2,78 » 19256 RING,SEAL Part Number Qty. Specifications Price BU0119256 4 € 6,32 » 19257 RING,SEAL Part Number Qty. Specifications Price BU0119257 2 € 6,32 » 19258 SEAL,CUT RING Part Number Qty. Specifications Price 033819258 1 € 9,14 » 19310 CASE,T/MISSION Part Number Qty. Specifications Price BU5519310A 1 » 19331 PLUG,SQUARE HEAD Part Number Qty. Specifications Price BV11193C4 2 AN (EA01-19-331) € 1,45 » 19332 CONNECTOR Part Number Qty. Specifications Price BU0119332A 1 » 19341 BOLT,ANCHOR END Part Number Qty. Specifications Price 033819341 1 » 19361 STRUT,BAND Part Number Qty. Specifications Price 033819361B 2 € 4,13 » 19363A SPRING,PISTON RETURN Part Number Qty. Specifications Price BU1719363 1 BU55193F3 1 » 19368 SPRING,CUSHION-PSTN.STEM Part Number Qty. Specifications Price BU2019368 1 » 19381 PISTON,BAND SERVO Part Number Qty. Specifications Price BU0619381 1 BV0319381 1 » 19384A SEAL,PISTON Part Number Qty. Specifications Price BU1019384 1 BU5519384 1 » 19385 SEAL,PISTON Part Number Qty. Specifications Price 084219385 1 OD=35.9MM ID=25.5MM FT0319385 1 D=44MM » 19386 STEM,PISTON Part Number Qty. Specifications Price 033819386A 1 » 19388 WASHER,PLAIN Part Number Qty. Specifications Price 033819388A 2 » 19389 NUT Part Number Qty. Specifications Price 033819389 2 » 19391 RETAINER,SERVO Part Number Qty. Specifications Price BU0619391 1 » 19392 COVER,SERVO Part Number Qty. Specifications Price 175819392A 1 » 19394 SEAL,LATHE CUT Part Number Qty. Specifications Price 084219394 1 € 2,80 » 19395 RING,'O' Part Number Qty. Specifications Price 033819395 1 € 3,96 » 19396A GASKET Part Number Qty. Specifications Price 175819394A 1 ASBESTOS € 1,78 » 19397 BOLT Part Number Qty. Specifications Price 175819397 3 » 19398 BOLT Part Number Qty. Specifications Price 033819398 3 » 193C8 BOLT,BAFFLE PLATE Part Number Qty. Specifications Price BU55193C8 1 L=12MM » 19700 HOUSING,EXTENSION Part Number Qty. Specifications Price BUY2197A0 1 » 19710 HOUSING,EXTENSION Part Number Qty. Specifications Price BU5519710 1 » 19735 GASKET,EXTENSION Part Number Qty. Specifications Price 033819735 1 ASBESTOS € 3,51 » 19737 BOLT Part Number Qty. Specifications Price 033819737 8 » 19739 WASHER,PLAIN Part Number Qty. Specifications Price 033819739 8 » 19822 SEAL,'O'RING Part Number Qty. Specifications Price 033819822 2 € 2,35 » 19823 DIAPHRAGM,VACUUM Part Number Qty. Specifications Price BU5519823 1 » 19825 ROD,DIAPHRAGM Part Number Qty. Specifications Price 033819825 1 L=30.0MM 033819826 1 L=31.0MM € 1,82 033819827 1 L=30.5MM € 1,16 033819828 1 L=29.0MM € 1,88 033819829 1 L=29.5MM € 1,88 BU5519825 1 L=29.75MM » 19831 BOLT,CONTROL VALVE Part Number Qty. Specifications Price 033819831 2 » 19832 BOLT,CONTROL VALVE Part Number Qty. Specifications Price 033819832 2 » 19833 BOLT,CONTROL VALVE Part Number Qty. Specifications Price 033819833 3 » 19835 GASKET,OIL PAN Part Number Qty. Specifications Price 033819835B 1 ASBESTOS € 5,47 » 19836 PAN,OIL Part Number Qty. Specifications Price 033819836A 1 € 9,78 » 19837 BOLT,OIL PAN Part Number Qty. Specifications Price 033819837 17 € 0,93 » 19870A TUBE,FILLER Part Number Qty. Specifications Price BU5519870 1 » 19870J RING,'O' Part Number Qty. Specifications Price 9954101601 1 € 2,71 » 19880 GAUGE,OIL LEVEL Part Number Qty. Specifications Price BU1719880B 1 » 19890 TUBE,OIL FILTER-UPPER Part Number Qty. Specifications Price BU5519890 1 » 19980 BRACKET Part Number Qty. Specifications Price BU5519980A 1 » 19986A BUSH,RUBBER Part Number Qty. Specifications Price BV0119986 1 » 21182 BRACKET Part Number Qty. Specifications Price BU5521182 1 » 21212 RING,'O' Part Number Qty. Specifications Price BU0121212 2 » 21250 SUPPORT,DRUM Part Number Qty. Specifications Price BU5521250 1 » 21253 GASKET,DRUM SUPPORT Part Number Qty. Specifications Price BU0121253 1 ASBESTOS € 3,83 » 21255 BOLT Part Number Qty. Specifications Price BU0121255 5 » 21273 PLUG,ACCUMULATOR Part Number Qty. Specifications Price BU0121273 1 » 21274 SEAL,'O'RING Part Number Qty. Specifications Price BU0121274 1 € 3,53 » 21277 RING,'O' Part Number Qty. Specifications Price BU0121277 1 » 21294A RING,SEAL Part Number Qty. Specifications Price BU5521293 1 » 21320 CASE,OVER DRIVE Part Number Qty. Specifications Price BU5521320 1 A (BU55-21-320A) » 21322 GASKET,O/DRIVE CASE Part Number Qty. Specifications Price BU0121322 1 € 3,35 » 21330 VALVE,ONE WAY Part Number Qty. Specifications Price BV0121330 1 » 21386 STEM,PISTON BAND Part Number Qty. Specifications Price BU0121386 1 » 21390 SERVO,OVER DRIVE Part Number Qty. Specifications Price BU2021390 1 » 21395 RING,'O' Part Number Qty. Specifications Price BU0121395 2 € 2,14 » 213B1 PISTON,ACCUMULATOR Part Number Qty. Specifications Price BU55213B1 1 » 99222 PIN,SPRING Part Number Qty. Specifications Price 992220214 1 € 0,72 » 99571 RING,SNAP Part Number Qty. Specifications Price 995744000 1 € 1,15 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940612 1 € 0,87
