Inter Cooler 01/02 (-6701) 02/02 (6701-)

Inter Cooler |

Mazda parts catalog

Parts > MAZDA6 MPS > 2005-07 > Gasoline-engine 4-cylinder Supplement > Inter Cooler

Search by part number:

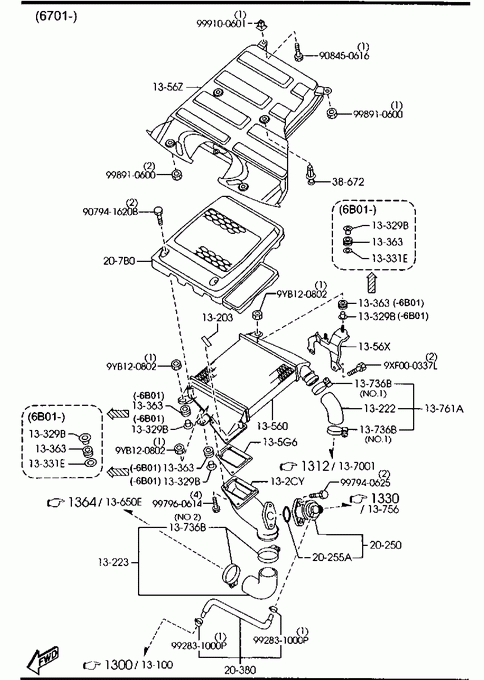

Inter Cooler

01/02 (-6701)
02/02 (6701-)

SEAL,RUBBER

Part Number	Qty.	Specifications	Price
RF5D13203	1		€ 2,16

» 13222

HOSE,AIR INTAKE

Part Number	Qty.	Specifications	Price
L33E13222A	1	AN (L33E-13-222B) 060701 - 060801 GG1671946-676277*
L33E13222B	1	060801 - GG1676277-*

» 13223

HOSE,AIR INTAKE-I/COOLER

Part Number	Qty.	Specifications	Price
L33X13770A	1	060701 - GG1671946-*
L3K913770C	1	- 060701 GG1* -671946**	€ 40,49

» 132CY

PIPE,AIR INTAKE

Part Number	Qty.	Specifications	Price
L3K913241A	1	- 060701 GG1* -671946**	€ 113,69
L3K913241B	1	060701 - GG1671946-*

» 13329B

SPACER

Part Number	Qty.	Specifications	Price
L3K913329	3		€ 4,89

» 13331E

SPACER

Part Number	Qty.	Specifications	Price
L33L13329	3	061101 - GG1688820-*

» 13363

RUBBER,INSULATION

Part Number	Qty.	Specifications	Price
L3K913363	3		€ 4,58

» 13560

COOLER,INTER

Part Number	Qty.	Specifications	Price
L33X13565A	1	060701 - GG1671946-*
L3K913565A	1	A (L3K9-13-565B) - 060207 GG1* -650816**	€ 463,56
L3K913565B	1	A (L3K9-13-565C) 060207 - 060213 GG1650816-651785*	€ 409,27
L3K913565C	1	060213 - 060701 GG1651785-671946*	€ 463,56

» 1356X

BRACKET,INTER COOLER

Part Number	Qty.	Specifications	Price
L33E1356XA	1	060701 - GG1671946-*
L3K91356XA	1	AN (L3K9-13-56XB) - 060401 GG1* -660107**	€ 21,22
L3K91356XB	1	060401 - 060701 GG1660107-671946*	€ 21,64

» 1356Z

DUCT,AIR-INTER COOLER

Part Number	Qty.	Specifications	Price
L3K91356ZD	1		€ 842,52

» 135G6

GASKET,INTAKE JOINT PIPE

Part Number	Qty.	Specifications	Price
L3K9135G6	1		€ 5,33

» 13736B

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
L33E13736	2	ILLUST. NO.1 060701 - GG1671946-*
L33G13736	2	ILLUST. NO.2 060701 - GG1671946-*

» 13761A

HOSE,AIR

Part Number	Qty.	Specifications	Price
L33L13760A	1	AN (L33L-13-760B) 060701 - 060801 GG1671946-676277*
L33L13760B	1	060801 - GG1676277-*
L3K913760C	1	- 060701 GG1* -671946**	€ 48,32

» 20250

VALVE,AIR BYPASS

Part Number	Qty.	Specifications	Price
L3K920250A	1		€ 143,72

» 20255A

GASKET,AIR BYPASS VALVE

Part Number	Qty.	Specifications	Price
L3K920255	1

» 20380

TUBE,VACUUM

Part Number	Qty.	Specifications	Price
L3K920380A	1	- 060701 GG1* -671946**	€ 9,25
L3M620380	1	060701 - GG1671946-*

» 207B0

COVER,AIR CASE

Part Number	Qty.	Specifications	Price
L3K9207B0C	1	AN (L3K9-20-7B0D) - 060401 GG1* -660107**	€ 192,61
L3K9207B0F	1	060401 - GG1660107-*

» 38672

FASTENER,UNDER COVER-SIDE

Part Number	Qty.	Specifications	Price
UB3938672	2

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
908450616	1		€ 1,29

» 90794

BOLT & WASHER,FLANGE

Part Number	Qty.	Specifications	Price
907941620B	1		€ 2,58

» 90901

NUT

Part Number	Qty.	Specifications	Price
998910600	1		€ 1,79

» 90901

NUT

Part Number	Qty.	Specifications	Price
9YB120802	1

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831000P	1

» 99601

BOLT

Part Number	Qty.	Specifications	Price
9XF000337L	1

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940625	1		€ 1,03

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960614	1		€ 0,48

» 99910

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
999100601	1		€ 1,12
