Mazda MAZDA 6 GH 2007-08 Mazda Rear Combination Lamps

Mazda parts catalog

Parts > MAZDA 6 > 2007-08 > Body Electronics > Rear Combination Lamps(4-door)

Search by part number:

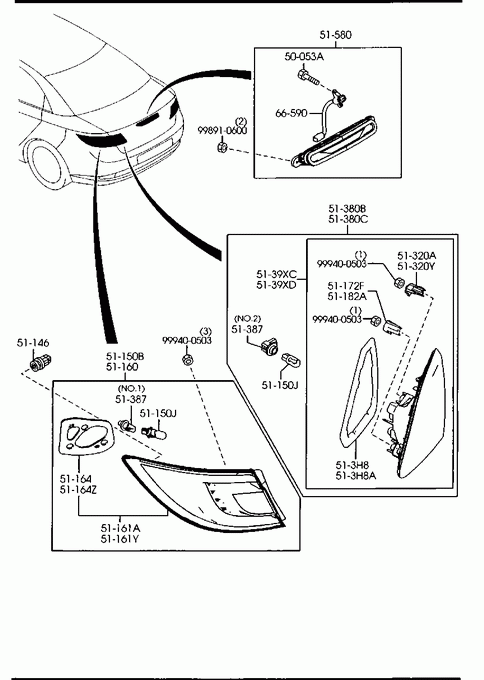

Rear Combination Lamps(4-door)

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
BC1M50713	2		€ 1,73

» 51146

GROMMET,SCREW-R.COMB

Part Number	Qty.	Specifications	Price
GS1F5114Y	2

» 51150B

LAMP(R),RR COMB.

Part Number	Qty.	Specifications	Price
GS1F51150D	1	A (GS1F-51-150E) RR COMBINATION LAMP BEZEL-RED LENS - 070829 GH1* -100246**
GS1F51150E	1	AN (GS1F-51-150F) RR COMBINATION LAMP BEZEL-RED LENS 070829 - 071005 GH1100246-103122*
GS1F51150G	1	AN (GS1F-51-150H) RR COMBINATION LAMP BEZEL-RED LENS 071005 - GH1103122-*
GS1G51150D	1	A (GS1G-51-150E) RR COMBINATION LAMP BEZEL-CLEAR LENS - 070829 GH1* -100246**
GS1G51150E	1	AN (GS1G-51-150F) RR COMBINATION LAMP BEZEL-CLEAR LENS 070829 - 071005 GH1100246-103122*
GS1G51150G	1	AN (GS1G-51-150H) RR COMBINATION LAMP BEZEL-CLEAR LENS 071005 - GH1103122-*

» 51150J

BULB

Part Number	Qty.	Specifications	Price
997006210	4	12V 21W	€ 2,85

» 51160

LAMP(L),RR COMB.

Part Number	Qty.	Specifications	Price
GS1F51160D	1	A (GS1F-51-160E) RR COMBINATION LAMP BEZEL-RED LENS - 070829 GH1* -100246**
GS1F51160E	1	AN (GS1F-51-160F) RR COMBINATION LAMP BEZEL-RED LENS 070829 - 071005 GH1100246-103122*
GS1F51160G	1	AN (GS1F-51-160H) RR COMBINATION LAMP BEZEL-RED LENS 071005 - GH1103122-*
GS1G51160D	1	A (GS1G-51-160E) RR COMBINATION LAMP BEZEL-CLEAR LENS - 070829 GH1* -100246**
GS1G51160E	1	AN (GS1G-51-160F) RR COMBINATION LAMP BEZEL-CLEAR LENS 070829 - 071005 GH1100246-103122*
GS1G51160G	1	AN (GS1G-51-160H) RR COMBINATION LAMP BEZEL-CLEAR LENS 071005 - GH1103122-*

» 51161A

LENS & BODY(R),RR COMB.

Part Number	Qty.	Specifications	Price
GS1F51170D	1	A (GS1F-51-170E) RR COMBINATION LAMP BEZEL-RED LENS - 070829 GH1* -100246**
GS1F51170E	1	AN (GS1F-51-170F) RR COMBINATION LAMP BEZEL-RED LENS 070829 - 071005 GH1100246-103122*
GS1F51170G	1	AN (GS1F-51-170H) RR COMBINATION LAMP BEZEL-RED LENS 071005 - GH1103122-*
GS1G51170D	1	A (GS1G-51-170E) RR COMBINATION LAMP BEZEL-CLEAR LENS - 070829 GH1* -100246**
GS1G51170E	1	AN (GS1G-51-170F) RR COMBINATION LAMP BEZEL-CLEAR LENS 070829 - 071005 GH1100246-103122*
GS1G51170G	1	AN (GS1G-51-170H) RR COMBINATION LAMP BEZEL-CLEAR LENS 071005 - GH1103122-*

» 51161Y

LENS & BODY(L),RR COMB.

Part Number	Qty.	Specifications	Price
GS1F51180D	1	A (GS1F-51-180E) RR COMBINATION LAMP BEZEL-RED LENS - 070829 GH1* -100246**
GS1F51180E	1	AN (GS1F-51-180F) RR COMBINATION LAMP BEZEL-RED LENS 070829 - 071005 GH1100246-103122*
GS1F51180G	1	AN (GS1F-51-180H) RR COMBINATION LAMP BEZEL-RED LENS 071005 - GH1103122-*
GS1G51180D	1	A (GS1G-51-180E) RR COMBINATION LAMP BEZEL-CLEAR LENS - 070829 GH1* -100246**
GS1G51180E	1	AN (GS1G-51-180F) RR COMBINATION LAMP BEZEL-CLEAR LENS 070829 - 071005 GH1100246-103122*
GS1G51180G	1	AN (GS1G-51-180H) RR COMBINATION LAMP BEZEL-CLEAR LENS 071005 - GH1103122-*

» 51164

GASKET(R),RR.COMB.

Part Number	Qty.	Specifications	Price
GS1F51153	1	A (GS1F-51-153A) - 070829 GH1* -100246**
GS1F51153A	1	070829 - GH1100246-*

» 51164Z

GASKET(L),RR.COMB.

Part Number	Qty.	Specifications	Price
GS1F51163	1	A (GS1F-51-163A) - 070829 GH1* -100246**
GS1F51163A	1	070829 - GH1100246-*

» 51172F

BRACKET(R),REAR COMB.

Part Number	Qty.	Specifications	Price
GS1D51172	1

» 51182A

BRACKET(L),REAR COMB.

Part Number	Qty.	Specifications	Price
GS1D51182	1

» 51320A

BRACKET(R),RR.COMB.

Part Number	Qty.	Specifications	Price
GS1F51172	1

» 51320Y

BRACKET(L),RR.COMB.

Part Number	Qty.	Specifications	Price
GS1F51182	1

» 51380B

LAMP(R),TRUNK LID

Part Number	Qty.	Specifications	Price
GS1F513F0B	1	AN (GS1F-51-3F0C) RR COMBINATION LAMP BEZEL-RED LENS - 070830 GH1* -100250**
GS1F513F0C	1	A (GS1F-51-3F0D) RR COMBINATION LAMP BEZEL-RED LENS 070830 - 070910 GH1100250-100401*
GS1F513F0D	1	A (GS1F-51-3F0E) RR COMBINATION LAMP BEZEL-RED LENS 070910 - 070919 GH1100401-101019*
GS1F513F0E	1	A (GS1F-51-3F0F) RR COMBINATION LAMP BEZEL-RED LENS 070919 - 071005 GH1101019-103122*
GS1F513F0G	1	A (GS1F-51-3F0H) RR COMBINATION LAMP BEZEL-RED LENS 071005 - GH1103122-*
GS1G513F0C	1	AN (GS1G-51-3F0D) RR COMBINATION LAMP BEZEL-CLEAR LENS - 070830 GH1* -100250**
GS1G513F0D	1	A (GS1G-51-3F0E) RR COMBINATION LAMP BEZEL-CLEAR LENS 070830 - 070910 GH1100250-100401*
GS1G513F0E	1	A (GS1G-51-3F0F) RR COMBINATION LAMP BEZEL-CLEAR LENS 070910 - 070919 GH1100401-101019*
GS1G513F0F	1	A (GS1G-51-3F0G) RR COMBINATION LAMP BEZEL-CLEAR LENS 070919 - 071005 GH1101019-103122*
GS1G513F0H	1	A (GS1G-51-3F0J) RR COMBINATION LAMP BEZEL-CLEAR LENS 071005 - GH1103122-*

» 51380C

LAMP(L),TRUNK LID

Part Number	Qty.	Specifications	Price
GS1D513G0B	1	AN (GS1D-51-3G0C) RR COMBINATION LAMP BEZEL-RED LENS - 070830 GH1* -100250**
GS1D513G0C	1	A (GS1D-51-3G0D) RR COMBINATION LAMP BEZEL-RED LENS 070830 - 070910 GH1100250-100401*
GS1D513G0D	1	A (GS1D-51-3G0E) RR COMBINATION LAMP BEZEL-RED LENS 070910 - 070919 GH1100401-101019*
GS1D513G0E	1	A (GS1D-51-3G0F) RR COMBINATION LAMP BEZEL-RED LENS 070919 - 071005 GH1101019-103122*
GS1D513G0G	1	A (GS1D-51-3G0H) RR COMBINATION LAMP BEZEL-RED LENS 071005 - GH1103122-*
GS7T513G0C	1	AN (GS7T-51-3G0D) RR COMBINATION LAMP BEZEL-CLEAR LENS - 070830 GH1* -100250**
GS7T513G0D	1	A (GS7T-51-3G0E) RR COMBINATION LAMP BEZEL-CLEAR LENS 070830 - 070910 GH1100250-100401*
GS7T513G0E	1	A (GS7T-51-3G0F) RR COMBINATION LAMP BEZEL-CLEAR LENS 070910 - 070919 GH1100401-101019*
GS7T513G0F	1	A (GS7T-51-3G0G) RR COMBINATION LAMP BEZEL-CLEAR LENS 070919 - 071005 GH1101019-103122*
GS7T513G0H	1	A (GS7T-51-3G0J) RR COMBINATION LAMP BEZEL-CLEAR LENS 071005 - GH1103122-*

» 51387

SOCKET,TRUNK LID LAMP

Part Number	Qty.	Specifications	Price
GG2M513G7	2	ILLUST. NO.1	€ 21,54
GJ6A51584	2	ILLUST. NO.2	€ 18,18

» 5139XC

LENS & HOUSING(R),T/LID

Part Number	Qty.	Specifications	Price
GS1F513H0B	1	AN (GS1F-51-3H0C) RR COMBINATION LAMP BEZEL-RED LENS - 070830 GH1* -100250**
GS1F513H0C	1	A (GS1F-51-3H0D) RR COMBINATION LAMP BEZEL-RED LENS 070830 - 070910 GH1100250-100401*
GS1F513H0D	1	A (GS1F-51-3H0E) RR COMBINATION LAMP BEZEL-RED LENS 070910 - 070919 GH1100401-101019*
GS1F513H0E	1	A (GS1F-51-3H0F) RR COMBINATION LAMP BEZEL-RED LENS 070919 - 071005 GH1101019-103122*
GS1F513H0G	1	A (GS1F-51-3H0H) RR COMBINATION LAMP BEZEL-RED LENS 071005 - GH1103122-*
GS1G513H0C	1	AN (GS1G-51-3H0D) RR COMBINATION LAMP BEZEL-CLEAR LENS - 070830 GH1* -100250**
GS1G513H0D	1	A (GS1G-51-3H0E) RR COMBINATION LAMP BEZEL-CLEAR LENS 070830 - 070910 GH1100250-100401*
GS1G513H0E	1	A (GS1G-51-3H0F) RR COMBINATION LAMP BEZEL-CLEAR LENS 070910 - 070919 GH1100401-101019*
GS1G513H0F	1	A (GS1G-51-3H0G) RR COMBINATION LAMP BEZEL-CLEAR LENS 070919 - 071005 GH1101019-103122*
GS1G513H0H	1	A (GS1G-51-3H0J) RR COMBINATION LAMP BEZEL-CLEAR LENS 071005 - GH1103122-*

» 5139XD

LENS & HOUSING(L),T/LID

Part Number	Qty.	Specifications	Price
GS1D513J0B	1	AN (GS1D-51-3J0C) RR COMBINATION LAMP BEZEL-RED LENS - 070830 GH1* -100250**
GS1D513J0C	1	A (GS1D-51-3J0D) RR COMBINATION LAMP BEZEL-RED LENS 070830 - 070910 GH1100250-100401*
GS1D513J0D	1	A (GS1D-51-3J0E) RR COMBINATION LAMP BEZEL-RED LENS 070910 - 070919 GH1100401-101019*
GS1D513J0E	1	A (GS1D-51-3J0F) RR COMBINATION LAMP BEZEL-RED LENS 070919 - 071005 GH1101019-103122*
GS1D513J0G	1	A (GS1D-51-3J0H) RR COMBINATION LAMP BEZEL-RED LENS 071005 - GH1103122-*
GS7T513J0C	1	AN (GS7T-51-3J0D) RR COMBINATION LAMP BEZEL-CLEAR LENS - 070830 GH1* -100250**
GS7T513J0D	1	A (GS7T-51-3J0E) RR COMBINATION LAMP BEZEL-CLEAR LENS 070830 - 070910 GH1100250-100401*
GS7T513J0E	1	A (GS7T-51-3J0F) RR COMBINATION LAMP BEZEL-CLEAR LENS 070910 - 070919 GH1100401-101019*
GS7T513J0F	1	A (GS7T-51-3J0G) RR COMBINATION LAMP BEZEL-CLEAR LENS 070919 - 071005 GH1101019-103122*
GS7T513J0H	1	A (GS7T-51-3J0J) RR COMBINATION LAMP BEZEL-CLEAR LENS 071005 - GH1103122-*

» 513H8

GASKET(R),LAMP-TRUNK LID

Part Number	Qty.	Specifications	Price
GS1F513H8	1

» 513H8A

GASKET(L),LAMP-TRUNK LID

Part Number	Qty.	Specifications	Price
GS1F513J8	1

» 51580

LAMP,STOP-HI.MOUNT.

Part Number	Qty.	Specifications	Price
GS1F51580D	1	AN (GS1F-51-580E) - 071003 GH1* -102612**
GS1F51580E	1	AN (GS1F-51-580F) 071003 - GH1102612-*

» 66590

SWITCH & LAMP

Part Number	Qty.	Specifications	Price
GS1D568DXA	1

» 90901

NUT

Part Number	Qty.	Specifications	Price
998910600	1		€ 1,79

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400503	1		€ 0,73

Rear Combination Lamps(4-door)
