Mazda MAZDA 6 GH 2007-08 Mazda Automatic Transmission Torque Converter, Oil Pump & Pipings 01/02 02/02

Mazda parts catalog

Parts > MAZDA 6 > 2007-08 > Gasoline-engine 4-cylinder Transmission > Automatic Transmission Torque Converter, Oil Pump & Pipings

Search by part number:

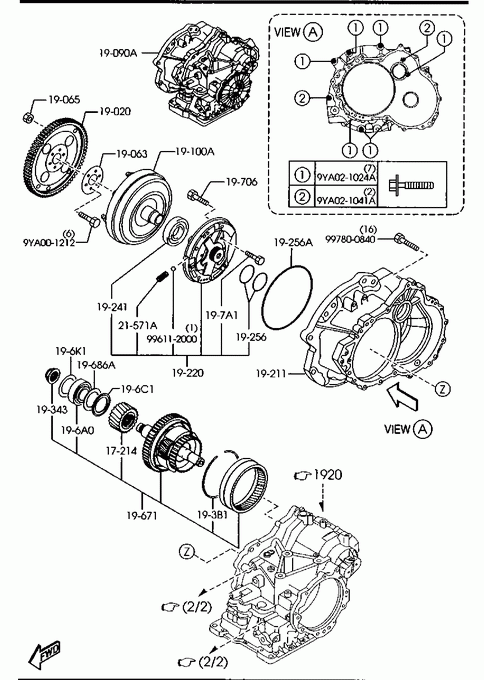

Automatic Transmission Torque Converter, Oil Pump & Pipings

01/02
02/02

GEAR,OUTPUT

Part Number	Qty.	Specifications	Price
FS5019671A	1

» 19020

PLATE,DRIVE

Part Number	Qty.	Specifications	Price
FNE219020B	1		€ 84,45

» 19063

PLATE,BACKING

Part Number	Qty.	Specifications	Price
FNE119063	1		€ 1,29

» 19065

NUT

Part Number	Qty.	Specifications	Price
FU5119065	4		€ 1,35

» 19090A

AUTOMATIC T/MISSION CPT.

Part Number	Qty.	Specifications	Price
FSE219090	1	A (FSE2-19-090A) 2000 - 070917 GH1* -100761**
FSE219090A	1	A (FSE2-19-090B) 2000 070917 - GH1100761-*
FSE319090A	1	A (FSE3-19-090B) 2500

» 19100A

CONVERTER,TORQUE

Part Number	Qty.	Specifications	Price
FNS419100A	1	2500
FNS519100A	1	2000

» 19211

HOUSING,CONVERTER

Part Number	Qty.	Specifications	Price
FSE019231B	1

» 19220

PUMP,OIL

Part Number	Qty.	Specifications	Price
FS501970X	1	A (FS50-19-70XA)	€ 374,83

» 19241

SEAL,OIL

Part Number	Qty.	Specifications	Price
FN1119241	1		€ 8,68

» 19256

RING,SEAL

Part Number	Qty.	Specifications	Price
FN0119212	4		€ 3,44

» 19256A

RING,SEAL

Part Number	Qty.	Specifications	Price
FN0119242	1		€ 8,36

» 19343

NUT

Part Number	Qty.	Specifications	Price
FS5019207	1

» 193B1

RING,SNAP

Part Number	Qty.	Specifications	Price
FS51193B3	1

» 19671

GEAR,OUTPUT

Part Number	Qty.	Specifications	Price
FS501967YB	1		€ 674,45

» 19686A

BEARING,NEEDLE THRUST

Part Number	Qty.	Specifications	Price
FS5019686	1

» 196A0

BEARING,ROLLER

Part Number	Qty.	Specifications	Price
FS5019HA0	1

» 196C1

RACE,BEARING

Part Number	Qty.	Specifications	Price
FS50196C2	1

» 196K1

SHIM,OUTPUT GEAR

Part Number	Qty.	Specifications	Price
FN11196K1A	1	T=0.5MM
FN11196K2A	1	T=0.55MM
FN11196K3A	1	T=0.6MM
FN11196K4A	1	T=0.65MM
FN11196K5A	1	T=0.7MM
FN11196K6A	1	T=0.75MM
FN11196K7A	1	T=0.8MM
FN11196K8A	1	T=0.85MM
FN11196K9A	1	T=0.9MM
FN11196L1A	1	T=0.95MM
FN11196L2A	1	T=1MM
FN11196L3A	1	T=1.05MM
FN11196L4A	1	T=1.1MM
FN11196L5A	1	T=1.15MM
FN11196L6A	1	T=1.2MM
FN11196L7A	1	T=1.25MM
FN11196L9A	1	T=0.45MM

» 19706

BOLT

Part Number	Qty.	Specifications	Price
FU0119706B	7		€ 0,92

» 197A1

BOLT

Part Number	Qty.	Specifications	Price
FN11197A1	6		€ 0,71

» 21571A

SPRING,PRESSURE HOLD

Part Number	Qty.	Specifications	Price
FS5021571	1

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YA001212	1		€ 2,90

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YA021024A	1

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YA021041A	1

» 99520

BALL

Part Number	Qty.	Specifications	Price
996112000	1		€ 1,85

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997800840	1		€ 1,66
