- Parts > MAZDA 6 > 2002-02 > Gasoline-engine 4-cylinder Transmission > Oil Pan & Timing Cover(gasoline)(2300cc)
- Search by part number:
-

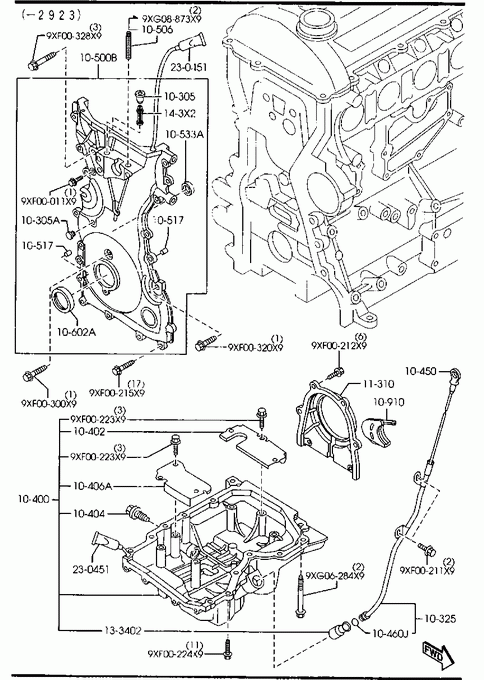

Oil Pan & Timing Cover(gasoline)(2300cc)
-
» 10305 ORIFICE Part Number Qty. Specifications Price 9XG082647L 1 050101 -
GG1***286736-9XG08264X9 1 AN (9XG08-2647L)
- 050101
GG1*** -286736€ 6,30 » 10305A PLUG Part Number Qty. Specifications Price 9XG07570X9 1 A (9XG09-966X9)
- 050101
GG1*** -286736€ 4,09 » 10325 PIPE,OIL LEVEL GAUGE Part Number Qty. Specifications Price L30910440 1 A (L309-10-440A)
- 040322
GG1*** -239930€ 31,53 L30910440A 1 AN (L309-10-440B)
040322 -
GG1***239930-€ 31,53 » 10400 PAN,OIL Part Number Qty. Specifications Price L32510400A 1 AN (L325-10-400B)
- 020923
GG1*** -105410€ 462,41 L32510400B 1 AN (L325-10-400C)
020923 - 030613
GG1***105410-193108L32510400E 1 AN (L325-10-400F)
030613 - 031001
GG1***193108-212783€ 421,76 L32510400F 1 AN (L325-10-400G)
031001 - 040701
GG1***212783-256815€ 421,76 L32510400G 1 AN (L325-10-400H)
040701 - 050110
GG1***256815-287469L32510400H 1 AN (L325-10-400J)
050110 -
GG1***287469-€ 419,65 » 10402 PLATE,OIL BAFFLE-OIL PAN Part Number Qty. Specifications Price L30910402 1 AN (L309-10-402A)
030613 - 040801
GG1***193108-261425L30910402A 1 040801 -
GG1***261425-» 10404 PLUG,DRAIN Part Number Qty. Specifications Price LF0110404 1 - 030613
GG1*** -193108€ 3,79 LF1710404 1 AN (LFE5-10-404)
030613 - 050110
GG1***193108-287469€ 5,67 LFE510404 1 050110 -
GG1***287469-€ 5,90 » 10406A PLATE,OIL BAFFLE Part Number Qty. Specifications Price L32510406 1 AN (L325-10-406A)
030613 - 040801
GG1***193108-261425L32510406A 1 040801 -
GG1***261425-» 10450 GAUGE,OIL LEVEL Part Number Qty. Specifications Price L32510450 1 - 030501
GG1*** -183210€ 11,57 L32510450A 1 AN (L325-10-450B)
030501 -
GG1***183210-€ 11,57 » 10460J RING,'O' Part Number Qty. Specifications Price 9XG012610 1 € 4,11 » 10500B COVER,TIMING BELT-LOWER Part Number Qty. Specifications Price L32310500C 1 AN (L323-10-500D)
- 031113
GG1*** -221237L32310500D 1 AN (L323-10-500E)
031113 - 050101
GG1***221237-286736€ 370,04 L32310500E 1 050101 - 050314
GG1***286736-297644€ 430,50 L32310500F 1 AN (L323-10-500G)
050314 -
GG1***297644-» 10506 STUD,FRONT COVER Part Number Qty. Specifications Price L32310506 2 A (9XG08-873X9)
- 020301
GG1*** -100225» 10517 INSERT Part Number Qty. Specifications Price 9XG06434X9 2 - 050101
GG1*** -286736» 10533A RUBBER,SEAL Part Number Qty. Specifications Price L30910533A 1 € 10,53 » 10602A SEAL,OIL Part Number Qty. Specifications Price LF0110602 1 € 11,63 » 10910 COVER,END PLATE Part Number Qty. Specifications Price LF1710903 1 € 5,06 » 11310 COVER,REAR Part Number Qty. Specifications Price LF0111310 1 € 66,37 » 133402 TUBE,CONNECTING Part Number Qty. Specifications Price LF0110407 1 AN (LF01-10-407A)
- 050110
GG1*** -287469LF0110407A 1 050110 -
GG1***287469-» 143X2 FILTER,OIL Part Number Qty. Specifications Price L323143X2 1 - 050314
GG1*** -297644» 230451 TUBE,SILICON Part Number Qty. Specifications Price 852777739 1 € 39,13 » 90720 SCREW Part Number Qty. Specifications Price 9XF00223X9 1 € 1,20 » 90857 STUD Part Number Qty. Specifications Price 9XG08873X9 1 € 4,02 » 99601 BOLT Part Number Qty. Specifications Price 9XF00011X9 1 € 0,40 » 99601 BOLT Part Number Qty. Specifications Price 9XF00212X9 1 » 99601 BOLT Part Number Qty. Specifications Price 9XF00215X9 1 € 1,40 » 99601 BOLT Part Number Qty. Specifications Price 9XF00224X9 1 € 0,48 » 99601 BOLT Part Number Qty. Specifications Price 9XF00300X9 1 € 0,32 » 99601 BOLT Part Number Qty. Specifications Price 9XF00320X9 1 » 99601 BOLT Part Number Qty. Specifications Price 9XF00328X9 1 € 2,63 » 99601 BOLT Part Number Qty. Specifications Price 9XG06284X9 1 € 2,38 » 99720 SCREW Part Number Qty. Specifications Price 9XF00211X9 1 € 0,71
