Mazda MAZDA 6 WAGON GY 2005-03 Mazda Automatic Transmission Case & Main Control System

Mazda parts catalog

Parts > MAZDA 6 WAGON > 2005-03 > Gasoline-engine 4-cylinder Transmission > Automatic Transmission Case & Main Control System(4wd)

Search by part number:

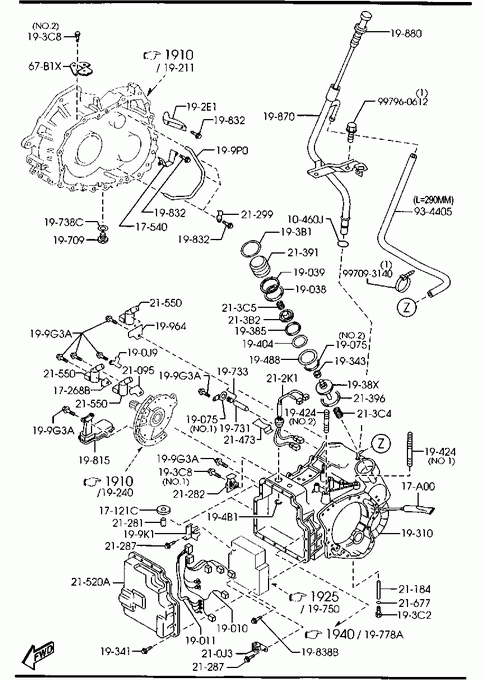

Automatic Transmission Case & Main Control System(4wd)
» 10460J RING,'O'

Part Number Qty. Specifications Price
9954101201 1
€ 2,06

» 17121C PLUG,MAGNET

Part Number Qty. Specifications Price
BU8017121 1

» 17268B BRACKET

Part Number Qty. Specifications Price
FP0121792 1

» 17540 PASS,OIL

Part Number Qty. Specifications Price
FP01192E2 1

» 17A00 SEALANT,FLUID

Part Number Qty. Specifications Price
FP0119002 1
€ 56,63

» 19010 HARNNESS,SOLENOID

Part Number Qty. Specifications Price
FP0119010 1
€ 15,31

» 19011 CORD

Part Number Qty. Specifications Price
FP011901X 1
€ 82,38

» 19038 RING,'O'

Part Number Qty. Specifications Price
FP0119038 1
€ 5,62

» 19039 RING,'O'

Part Number Qty. Specifications Price
FP0119039 1

» 19075 SPACER

Part Number Qty. Specifications Price
FP0119GP2A 1 ILLUST. NO.1
- 070723

FP0119GP2B 1 ILLUST. NO.1
070723 -

FP0119GP3 1 ILLUST. NO.2

» 190J9 BRACKET

Part Number Qty. Specifications Price
FP01190J9 1

» 192E1 PLATE,BAFFLE

Part Number Qty. Specifications Price
FP01192E1 1

» 19310 CASE,T/MISSION

Part Number Qty. Specifications Price
FP0119420 1

» 19341 BOLT,ANCHOR END

Part Number Qty. Specifications Price
FP0119341 20

» 19343 NUT

Part Number Qty. Specifications Price
BV7119343 1

» 19385 SEAL,PISTON

Part Number Qty. Specifications Price
BV1119385 1
€ 4,21

» 1938X PISTON,SERVO

Part Number Qty. Specifications Price
FP011938X 1

» 193B1 RING,SNAP

Part Number Qty. Specifications Price
FP01193B3 1
€ 1,77

» 193C2 PLUG

Part Number Qty. Specifications Price
FP01195A2 1

» 193C8 BOLT,BAFFLE PLATE

Part Number Qty. Specifications Price
FP01193C8 1 ILLUST. NO.1

FP20193C8B 2 ILLUST. NO.2

» 19404 RING,SNAP-PISTON STEM UP

Part Number Qty. Specifications Price
FP0119404 1

» 19424 BOLT,STUD

Part Number Qty. Specifications Price
FP0119424 1 ILLUST. NO.1

FP0319424 1 ILLUST. NO.2

» 19488 RING,SNAP

Part Number Qty. Specifications Price
FP0119309 1

» 194B1 RING,SNAP

Part Number Qty. Specifications Price
FX01194B3 1
€ 0,86

» 19709 PLUG,MAGNET

Part Number Qty. Specifications Price
FP0119709 1

» 19731 SHAFT,PARKING PAWL

Part Number Qty. Specifications Price
FP0121472A 1 - 070723

FP0121472B 1 070723 -

» 19733 SPRING,PAWL RETURN

Part Number Qty. Specifications Price
FP0121474 1

» 19738C GASKET,TUBE-EXT.

Part Number Qty. Specifications Price
FP0119738 1

» 19815 STRAINER,OIL

Part Number Qty. Specifications Price
FP0121500 1
€ 60,30

» 19832 BOLT,CONTROL VALVE

Part Number Qty. Specifications Price
FP0119832 7

» 19838B BOLT

Part Number Qty. Specifications Price
FP0121475 1

» 19870 TUBE,OIL LEVEL

Part Number Qty. Specifications Price
FP2019870A 1

» 19880 GAUGE,OIL LEVEL

Part Number Qty. Specifications Price
FP2019880A 1
€ 17,28

» 19964 BRACKET

Part Number Qty. Specifications Price
FP0119199 1

» 199G3A BOLT,HEX.FLANGE-C/V BODY

Part Number Qty. Specifications Price
FP01199G3 7

» 199K1 BRACKET

Part Number Qty. Specifications Price
FP01192E3 1

» 199P0 PIPE,OIL

Part Number Qty. Specifications Price
FP01199W1 1

» 21095 BRACKET

Part Number Qty. Specifications Price
FP0121095 1

» 210J3 CLIP,HARNESS

Part Number Qty. Specifications Price
FP01210J3 1

» 21184 PIPE,OIL

Part Number Qty. Specifications Price
FP0121181 1

» 21281 CLIP

Part Number Qty. Specifications Price
FP0121281 1

» 21282 CLIP

Part Number Qty. Specifications Price
FP0121282 1

» 21287 BOLT,CONTROL VALVE CASE

Part Number Qty. Specifications Price
FP0121287 10

» 21299 CLIP

Part Number Qty. Specifications Price
FP0121299 3

» 212K1 CONNECTOR,SOLENOID VALVE

Part Number Qty. Specifications Price
FP10212K1B 1
€ 79,14

» 21391 RETAINER,SERVO

Part Number Qty. Specifications Price
FP0121391 1

» 21396 SEAL,LATHE CUT

Part Number Qty. Specifications Price
FP0321396 1
€ 4,55

» 213B2 PISTON,ACCUMULATOR

Part Number Qty. Specifications Price
FP01213B2 1

» 213C4 SPRING,SERVO

Part Number Qty. Specifications Price
FP01213C4 1

» 213C5 SPRING,SERVO

Part Number Qty. Specifications Price
FP01213C5 1

» 21473 POLE,PARKING

Part Number Qty. Specifications Price
FP0121473 1

» 21520A COVER,CONTROL-VALVE BODY

Part Number Qty. Specifications Price
FP0121520 1 050401 -
GY1***400099-

» 21550 GENERATOR,PULSE

Part Number Qty. Specifications Price
FP0121550 3
€ 50,98

» 21677 RING,'O'

Part Number Qty. Specifications Price
FP0121677 1

» 67B1X BRACKET,HARNESS

Part Number Qty. Specifications Price
GR4H67B1X 1

» 934405 HOSE

Part Number Qty. Specifications Price
9934405150 1 L=1.5M CUT IT TO USE
€ 113,89

» 99709 BAND

Part Number Qty. Specifications Price
997093140 1
€ 3,57

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960612 1
€ 0,69

Part Number	Qty.	Specifications	Price
FP0119GP2A	1	ILLUST. NO.1 - 070723
FP0119GP2B	1	ILLUST. NO.1 070723 -
FP0119GP3	1	ILLUST. NO.2

Automatic Transmission Case & Main Control System(4wd)
