Rear Doors 01/02 02/02

Rear Doors |

Mazda parts catalog

Parts > MAZDA 6 WAGON > 2002-06 > Body Interior Trim > Rear Doors

Search by part number:

Rear Doors

01/02
02/02

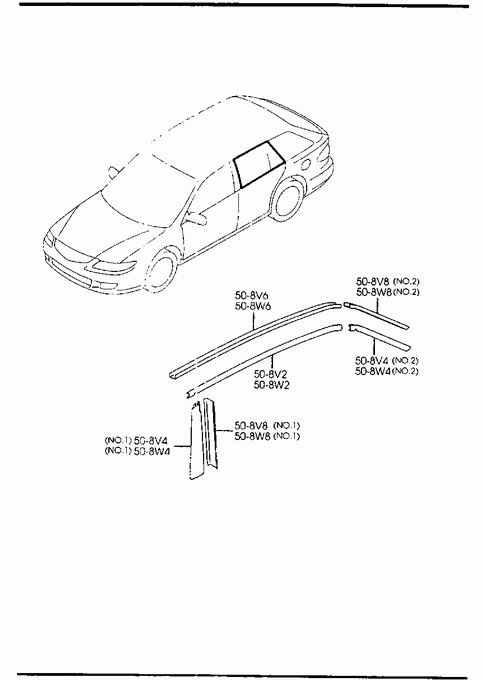

STRIPE NO.2(R),BODY SIDE

Part Number	Qty.	Specifications	Price
G21B508V2	1	AN (G21B-50-8V2A) - 030825 GY1* -148444**	€ 10,29
G21B508V2A	1	030825 - GY1148444-*	€ 10,71

STRIPE NO.4(R),BODY SIDE

Part Number	Qty.	Specifications	Price
G21B508V4	1	ILLUST. NO.2	€ 6,73
GJ6A508V4A	1	AN (GJ6A-50-8V4B) ILLUST. NO.1 - 030101 GY1* -121232**	€ 8,17
GJ6A508V4D	1	AN (GJ6A-50-8V4E) ILLUST. NO.1 030101 - GY1121232-*	€ 8,17

STRIPE NO.6(R),BODY SIDE

Part Number	Qty.	Specifications	Price
G21B508V6	1	L=641.6MM W=24.1MM - 020803 GY1* -106698**	€ 6,54
G21B508V6A	1	L=641.6MM W=24.1MM 020803 - 030217 GY1106698-126005*	€ 6,54
G21B508V6B	1	L=641.6MM W=24.1MM 030217 - 030825 GY1126005-148444*	€ 6,54
G21B508V6C	1	L=641.6MM W=24.1MM 030825 - GY1148444-*

STRIPE NO.8 (R) BODY

Part Number	Qty.	Specifications	Price
G21B508V8	1	AN (G21B-50-8V8A) ILLUST. NO.2 - 020803 GY1* -106698**	€ 6,41
G21B508V8A	1	AN (G21B-50-8V8B) ILLUST. NO.2 020803 - 030217 GY1106698-126005*	€ 6,41
G21B508V8B	1	ILLUST. NO.2 030217 - 030825 GY1126005-148444*	€ 6,41
G21B508V8C	1	ILLUST. NO.2 030825 - GY1148444-*
GJ6A508V8A	1	AN (GJ6A-50-8V8B) ILLUST. NO.1 - 020803 GY1* -106698**	€ 6,17
GJ6A508V8B	1	AN (GJ6A-50-8V8C) ILLUST. NO.1 020803 - 030217 GY1106698-126005*	€ 6,17
GJ6A508V8C	1	AN (GJ6A-50-8V8D) ILLUST. NO.1 030217 - 030825 GY1126005-148444*	€ 6,17
GJ6A508V8D	1	ILLUST. NO.1 030825 - GY1148444-*	€ 6,42

STRIPE NO.2(L),BODY SIDE

Part Number	Qty.	Specifications	Price
G21B508W2	1	AN (G21B-50-8W2A) - 030825 GY1* -148444**	€ 10,29
G21B508W2A	1	030825 - GY1148444-*	€ 10,71

STRIPE NO.4(L),BODY SIDE

Part Number	Qty.	Specifications	Price
G21B508W4	1	ILLUST. NO.2	€ 6,73
GJ6A508W4A	1	AN (GJ6A-50-8W4B) ILLUST. NO.1 - 030101 GY1* -121232**	€ 8,17
GJ6A508W4D	1	AN (GJ6A-50-8W4E) ILLUST. NO.1 030101 - GY1121232-*	€ 8,17

STRIPE NO.6(L),BODY SIDE

Part Number	Qty.	Specifications	Price
G21B508W6	1	L=642.1MM W=24.1MM - 020803 GY1* -106698**	€ 6,54
G21B508W6A	1	L=642.1MM W=24.1MM 020803 - 030217 GY1106698-126005*	€ 6,54
G21B508W6B	1	L=642.1MM W=24.1MM 030217 - 030825 GY1126005-148444*	€ 6,54
G21B508W6C	1	L=642.1MM W=24.1MM 030825 - GY1148444-*

STRIPE NO.8 (L) BODY

Part Number	Qty.	Specifications	Price
G21B508W8	1	AN (G21B-50-8W8A) ILLUST. NO.2 - 020803 GY1* -106698**	€ 6,41
G21B508W8A	1	AN (G21B-50-8W8B) ILLUST. NO.2 020803 - 030217 GY1106698-126005*	€ 6,41
G21B508W8B	1	ILLUST. NO.2 030217 - 030825 GY1126005-148444*	€ 6,41
G21B508W8C	1	ILLUST. NO.2 030825 - GY1148444-*
GJ6A508W8A	1	AN (GJ6A-50-8W8B) ILLUST. NO.1 - 020803 GY1* -106698**	€ 6,17
GJ6A508W8B	1	AN (GJ6A-50-8W8C) ILLUST. NO.1 020803 - 030217 GY1106698-126005*	€ 6,29
GJ6A508W8C	1	AN (GJ6A-50-8W8D) ILLUST. NO.1 030217 - 030825 GY1126005-148444*	€ 6,29
GJ6A508W8D	1	ILLUST. NO.1 030825 - GY1148444-*	€ 6,55
