Mazda MAZDA 6 WAGON GY 2002-06 Mazda Front Seats 01/05 (DRIVER SIDE)(STA,STB,STC,STE,STH TYPE) 02/05 (DRIVER SIDE)(STF,STJ TYPE) 03/05 (DRIVER SIDE)(STF,STJ TYPE) 04/05 (PASSENGER SIDE)(STA TYPE+W/O SIDE AIR BAG,W/O CUT SYS.)(STA & STB & STE & STF TYPE+W/CURTAIN & SIDE AIR BAG,W/O CUT SYS.) 05/05 (PASSENGER SIDE)(STA,STB,STC,STE,STF,STH TYPE+W/AIR BAG CUT SYS.)(STJ TYPE)

Mazda parts catalog

Parts > MAZDA 6 WAGON > 2002-06 > Body Interior Trim > Front Seats(gasoline)(diesel)(w/o On-board Diagnosis)

Search by part number:

Front Seats(gasoline)(diesel)(w/o On-board Diagnosis)

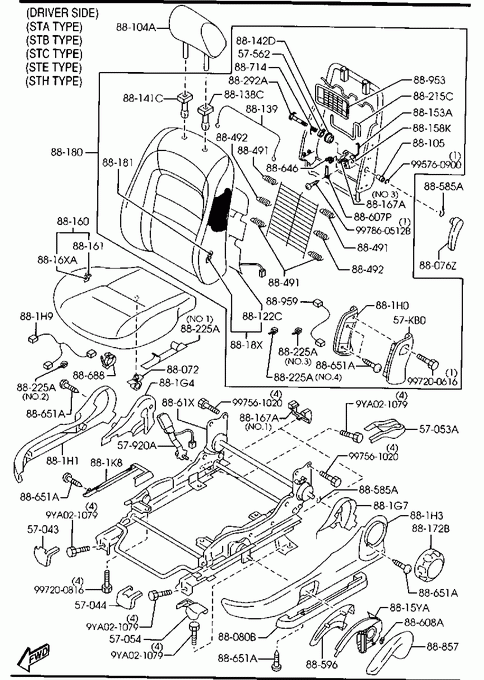

01/05 (DRIVER SIDE)(STA,STB,STC,STE,STH TYPE)
02/05 (DRIVER SIDE)(STF,STJ TYPE)
03/05 (DRIVER SIDE)(STF,STJ TYPE)
04/05 (PASSENGER SIDE)(STA TYPE+W/O SIDE AIR BAG,W/O CUT SYS.)(STA & STB & STE & STF TYPE+W/CURTAIN & SIDE AIR BAG,W/O CUT SYS.)
05/05 (PASSENGER SIDE)(STA,STB,STC,STE,STF,STH TYPE+W/AIR BAG CUT SYS.)(STJ TYPE)

» 57043

COVER NO.3,ADJ-FRT

Part Number	Qty.	Specifications	Price
GJ6A57043	1

» 57044

COVER NO.4,ADJ-FRT

Part Number	Qty.	Specifications	Price
GJ6A57044	1

» 57053A

COVER'C',ADJUSTER-RR

Part Number	Qty.	Specifications	Price
GJ6A57053	1

» 57054

COVER'D',ADJUSTER-RR

Part Number	Qty.	Specifications	Price
GJ6A57054	1

» 57562

LATCH(R),REAR SEAT BACK

Part Number	Qty.	Specifications	Price
GJ6E88684	1	STB TYPE STC TYPE STE TYPE STF TYPE STH TYPE STJ TYPE	€ 4,06

» 57920A

BELT'A'(L),FRT SEAT

Part Number	Qty.	Specifications	Price
G22C57620	1	STA TYPE STB TYPE STH TYPE - 030401 GY1* -130830**
G22C57620B	1	STA TYPE STB TYPE STH TYPE 030401 - 030601 GY1130830-137242*
G22C57620C	1	STH TYPE STA TYPE STB TYPE 030601 - 031001 GY1137242-153690*
G22C57620D	1	STA TYPE STB TYPE STH TYPE 031001 - 041101 GY1153690-197431*
G22C57620E	1	STA TYPE STB TYPE STH TYPE 041101 - GY1197431-*
GJ6A57680	1	STC TYPE STE TYPE - 030401 GY1* -130830**
GJ6A57680B	1	STE TYPE STC TYPE 030401 - 030601 GY1130830-137242*
GJ6A57680C	1	STC TYPE STE TYPE 030601 - 031001 GY1137242-153690*
GJ6A57680D	1	STE TYPE STC TYPE 031001 - 041101 GY1153690-197431*
GJ6A57680E	1	STE TYPE STC TYPE 041101 - GY1197431-*
GJ6R57680	1	STF TYPE - 031001 GY1* -153690**
GJ6R57680A	1	STF TYPE STJ TYPE 031001 - 041101 GY1153690-197431*
GJ6R57680B	1	STF TYPE STJ TYPE 041101 - GY1197431-*

» 57KB0

MODULE(L)-A/B,SIDE

Part Number	Qty.	Specifications	Price
GJ6A57KB0C	1	W/CURTAIN & SIDE AIR BAG,W/O CUT SYS. W/CURTAIN & SIDE AIR BAG, W/CUT SYS. - 030414 GY1* -132475**
GJ6R57KB0	1	W/CURTAIN & SIDE AIR BAG,W/O CUT SYS. W/CURTAIN & SIDE AIR BAG, W/CUT SYS. 030414 - GY1132475-*

» 88072

CLIP

Part Number	Qty.	Specifications	Price
TA0188072A	3	STF TYPE STJ TYPE	€ 2,69

» 88076Z

LEVER(L),LUMBAR SUPPORT

Part Number	Qty.	Specifications	Price
GJ6E88188	1	STB TYPE STC TYPE STE TYPE STF TYPE STH TYPE STJ TYPE

» 88080B

COVER,RAIL-F NO.4

Part Number	Qty.	Specifications	Price
GJ6A88080	1	STA TYPE STB TYPE STE TYPE STC TYPE STH TYPE 4-SPEED 030201 - GY1124085-*
GJ8A88080	1	STB TYPE STC TYPE STE TYPE STH TYPE STA TYPE - 030201 GY1* -124085**

» 88104A

RESTRAINT,HEAD

Part Number	Qty.	Specifications	Price
GJ6A88140	2	STA TYPE STE TYPE STH TYPE
GJ6E88140	2	STB TYPE STC TYPE
GK3J88140	2	STF TYPE - 030912 GY1* -151126**
GK3J88140A	2	STF TYPE STJ TYPE 030912 - 040401 GY1151126-172301*
GK3J88140B	2	STF TYPE STJ TYPE 040401 - 040701 GY1172301-183438*
GK3J88140C	2	STF TYPE STJ TYPE 040701 - GY1183438-*

» 88105

BUSH

Part Number	Qty.	Specifications	Price
GJ6E88033	1	STB TYPE STC TYPE STE TYPE STF TYPE STH TYPE STJ TYPE	€ 5,31

» 88122C

HEATER,SEAT BACK

Part Number	Qty.	Specifications	Price
GJ6V88122	2	STC TYPE STE TYPE STF TYPE STJ TYPE	€ 106,34

» 88138C

GUIDE,POLE-NO.2

Part Number	Qty.	Specifications	Price
GJ6A881G9	2

» 88139

WIRE,TRIM

Part Number	Qty.	Specifications	Price
GJ6A88139	2	(W/CURTAIN & SIDE AIR BAG, W/CUT SYS.>STE TYPE)

» 88141C

GUIDE,POLE-NO.1

Part Number	Qty.	Specifications	Price
GJ6A881G8	2

» 88142D

CAM,LUMBAR SUPPORT

Part Number	Qty.	Specifications	Price
GJ6E88683	1	STB TYPE STC TYPE STE TYPE STF TYPE STH TYPE STJ TYPE	€ 4,99

» 88153A

CABLE

Part Number	Qty.	Specifications	Price
GJ6E88002	1	STB TYPE STC TYPE STE TYPE STF TYPE STH TYPE STJ TYPE	€ 3,76

» 88158K

PLATE,BASE

Part Number	Qty.	Specifications	Price
GJ6E88681	1	STB TYPE STC TYPE STE TYPE STF TYPE STH TYPE STJ TYPE	€ 14,76

» 8815YA

UNIT(L),LEVER-F SEAT

Part Number	Qty.	Specifications	Price
GJ6A8815Y	1	STA TYPE STB TYPE STC TYPE STE TYPE	€ 55,52

» 88160

CUSHION(L),FRT SEAT

Part Number	Qty.	Specifications	Price
GJ6A88160	1	STA TYPE
GJ6E88160	1	STB TYPE
GJ6F88160	1	STH TYPE
GJ6V88160	1	STC TYPE - 030414 GY1* -132475**
GJ6V88160A	1	STC TYPE 030414 - 050301 GY1132475-209972*
GJ6V88160B	1	STC TYPE 050301 - GY1209972-*
GK3J88160	1	STF TYPE - 030414 GY1* -132475**
GK3J88160A	1	STF TYPE 030414 - 040401 GY1132475-172301*
GK3J88160B	1	STF TYPE 040401 - 050301 GY1172301-209972*
GK3J88160C	1	STF TYPE 050301 - GY1209972-*
GK3L88160	1	STE TYPE - 030414 GY1* -132475**
GK3L88160A	1	STE TYPE 030414 - 050301 GY1132475-209972*
GK3L88160B	1	STE TYPE 050301 - GY1209972-*
GP8A88160	1	STJ TYPE - 040401 GY1* -172301**
GP8A88160A	1	STJ TYPE 040401 - 050301 GY1172301-209972*
GP8A88160B	1	STJ TYPE 050301 - GY1209972-*

» 88161

TRIM(L),SEAT CUSHION

Part Number	Qty.	Specifications	Price
GJ6A88161	1	STA TYPE
GJ6E88161	1	STB TYPE STC TYPE
GJ6F88161	1	STE TYPE STH TYPE
GK3J88161	1	STF TYPE - 040401 GY1* -172301**
GK3J88161A	1	STF TYPE 040401 - GY1172301-*
GP8A88161	1	STJ TYPE - 040401 GY1* -172301**
GP8A88161A	1	STJ TYPE 040401 - GY1172301-*

» 88167A

PROTECTOR

Part Number	Qty.	Specifications	Price
GJ6A88091	4	AN (GJ6A-88-091A) ILLUST. NO.1 STA TYPE STB TYPE STC TYPE STE TYPE STH TYPE - 021201 GY1* -117782**	€ 1,17
GJ6A88091A	4	ILLUST. NO.1 STA TYPE STB TYPE STC TYPE STE TYPE STH TYPE 021201 - GY1117782-*
GK3J88091	2	ILLUST. NO.2 STF TYPE STJ TYPE 030501 - GY1134093-*	€ 4,66
H26088184	1	ILLUST. NO.3 STB TYPE STF TYPE STC TYPE STE TYPE STH TYPE	€ 1,25

» 8816XA

HEATER&PAD(L),CUSHION

Part Number	Qty.	Specifications	Price
GJ6V8816X	1	AN (GJ6V-88-16XA) STC TYPE STE TYPE - 030414 GY1* -132475**	€ 289,12
GJ6V8816XA	1	A (GJ6V-88-16XB) STC TYPE STE TYPE 030414 - 050301 GY1132475-209972*	€ 289,12
GJ6V8816XB	1	A (GJ6V-88-16XC) STC TYPE STE TYPE 050301 - GY1209972-*	€ 289,12
GK3J8816X	1	AN (GK3J-88-16XA) STF TYPE - 030414 GY1* -132475**	€ 263,23
GK3J8816XA	1	A (GK3J-88-16XB) STF TYPE STJ TYPE 030414 - 050301 GY1132475-209972*	€ 263,23
GK3J8816XB	1	STF TYPE 050301 - GY1209972-*	€ 273,86
GP8A8816X	1	STJ TYPE 050301 - GY1209972-*

» 88172B

DIAL

Part Number	Qty.	Specifications	Price
GJ6A881L6	1	STA TYPE STB TYPE STC TYPE STE TYPE

» 88180

BACK(L),FRONT SEAT

Part Number	Qty.	Specifications	Price
GJ6A88180	1	(STA TYPE>W/O SIDE AIR BAG,W/CUT SYS.) (STA TYPE>W/O SIDE AIR BAG,W/O CUT SYS.) - 020901 GY1* -108980**
GJ6E88180A	1	STB TYPE - 030201 GY1* -124085**
GJ6E88180B	1	STB TYPE 030201 - 030401 GY1124085-130830*
GJ6E88180E	1	STB TYPE 030401 - 030414 GY1130830-132475*
GJ6F88180A	1	STH TYPE - 030201 GY1* -124085**
GJ6F88180B	1	STH TYPE 030201 - 030401 GY1124085-130830*
GJ6F88180E	1	STH TYPE 030401 - 030414 GY1130830-132475*
GJ6V88180A	1	STC TYPE - 030201 GY1* -124085**
GJ6V88180B	1	STC TYPE 030201 - 030401 GY1124085-130830*
GJ6V88180E	1	STC TYPE 030401 - 030414 GY1130830-132475*
GJ6V88180F	1	STC TYPE 030414 - 030601 GY1132475-137242*
GJ6V88180G	1	STC TYPE 030601 - 050101 GY1137242-203963*
GJ6V88180H	1	STC TYPE 050101 - GY1203963-*
GK3J88180A	1	STF TYPE - 030201 GY1* -124085**
GK3J88180B	1	STF TYPE 030201 - 030401 GY1124085-130830*
GK3J88180E	1	STF TYPE 030401 - 030414 GY1130830-132475*
GK3J88180F	1	STF TYPE 030414 - 030601 GY1132475-137242*
GK3J88180G	1	STF TYPE 030601 - 040101 GY1137242-164682*
GK3J88180H	1	STF TYPE 040101 - 040401 GY1164682-172301*
GK3J88180J	1	STF TYPE 040401 - GY1172301-*
GK3L88180A	1	STE TYPE - 030201 GY1* -124085**
GK3L88180B	1	STE TYPE 030201 - 030401 GY1124085-130830*
GK3L88180E	1	STE TYPE 030401 - 030414 GY1130830-132475*
GK3L88180F	1	STE TYPE 030414 - 030601 GY1132475-137242*
GK3L88180G	1	STE TYPE 030601 - GY1137242-*
GL9S88180A	1	(STA TYPE>W/CURTAIN & SIDE AIR BAG,W/O CUT SYS.) (STA TYPE>W/CURTAIN & SIDE AIR BAG, W/CUT SYS.) - 021201 GY1* -117782**
GL9S88180B	1	(STA TYPE>W/CURTAIN & SIDE AIR BAG,W/O CUT SYS.) (STA TYPE>W/CURTAIN & SIDE AIR BAG, W/CUT SYS.) 021201 - 030401 GY1117782-130830*
GL9S88180E	1	(STA TYPE>W/CURTAIN & SIDE AIR BAG,W/O CUT SYS.) (STA TYPE>W/CURTAIN & SIDE AIR BAG, W/CUT SYS.) 030401 - 030414 GY1130830-132475*
GM1J88180	1	STB TYPE 030414 - 030601 GY1132475-137242*
GM1J88180A	1	STB TYPE 030601 - 050101 GY1137242-203963*
GM1J88180B	1	STB TYPE 050101 - GY1203963-*
GM1M88180	1	(STA TYPE>W/CURTAIN & SIDE AIR BAG,W/O CUT SYS.) (STA TYPE>W/CURTAIN & SIDE AIR BAG, W/CUT SYS.) 030414 - 030601 GY1132475-137242*
GM1M88180A	1	(STA TYPE>W/CURTAIN & SIDE AIR BAG,W/O CUT SYS.) (STA TYPE>W/CURTAIN & SIDE AIR BAG, W/CUT SYS.) 030601 - GY1137242-*
GM1N88180	1	STH TYPE 030414 - 030601 GY1132475-137242*
GM1N88180A	1	STH TYPE 030601 - GY1137242-*
GP8A88180A	1	STJ TYPE - 040401 GY1* -172301**
GP8A88180B	1	STJ TYPE 040401 - GY1172301-*

» 88181

TRIM(L),SEAT BACK

Part Number	Qty.	Specifications	Price
GJ6A88181	1	(STA TYPE>W/O SIDE AIR BAG,W/CUT SYS.) (STA TYPE>W/O SIDE AIR BAG,W/O CUT SYS.) - 020901 GY1* -108980**
GJ6E88181	1	STB TYPE STC TYPE - 030201 GY1* -124085**
GJ6E88181A	1	STB TYPE STC TYPE 030201 - 050101 GY1124085-203963*
GJ6E88181B	1	STB TYPE STC TYPE 050101 - GY1203963-*
GJ6F88181	1	STE TYPE STH TYPE - 030201 GY1* -124085**
GJ6F88181A	1	STE TYPE STH TYPE 030201 - GY1124085-*
GK3J88181	1	STF TYPE - 030201 GY1* -124085**
GK3J88181A	1	STF TYPE 030201 - 040101 GY1124085-164682*
GK3J88181B	1	STF TYPE 040101 - 040401 GY1164682-172301*
GK3J88181C	1	STF TYPE 040401 - GY1172301-*
GL9S88181	1	(STA TYPE>W/CURTAIN & SIDE AIR BAG,W/O CUT SYS.) (STA TYPE>W/CURTAIN & SIDE AIR BAG, W/CUT SYS.) - 030201 GY1* -124085**
GL9S88181A	1	(STA TYPE>W/CURTAIN & SIDE AIR BAG,W/O CUT SYS.) (STA TYPE>W/CURTAIN & SIDE AIR BAG, W/CUT SYS.) 030201 - GY1124085-*
GP8A88181A	1	STJ TYPE - 040401 GY1* -172301**
GP8A88181B	1	STJ TYPE 040401 - GY1172301-*

» 8818X

HEATER&PAD(L),BACK

Part Number	Qty.	Specifications	Price
GJ6V8818X	1	AN (GJ6N-88-18X) STC TYPE STE TYPE STF TYPE STJ TYPE 030201 - GY1124085-*	€ 214,50

» 881G4

COVER NO.3,REVERSE

Part Number	Qty.	Specifications	Price
GJ6A881G4	1	STA TYPE STB TYPE STC TYPE STE TYPE STH TYPE
GK3J881G4	1	STF TYPE STJ TYPE

» 881G7

COVER NO.4,REVERSE

Part Number	Qty.	Specifications	Price
GJ6A881G7	1	STA TYPE STB TYPE STC TYPE STE TYPE STH TYPE
GK3J881G7	1	STF TYPE STJ TYPE

» 881H0

COVER(L),AIRBAG-SIDE

Part Number	Qty.	Specifications	Price
GJ6E881H0	1	W/CURTAIN & SIDE AIR BAG,W/O CUT SYS. W/CURTAIN & SIDE AIR BAG, W/CUT SYS.	€ 17,44

» 881H1

COVER NO.3,SIDE-F.SEAT

Part Number	Qty.	Specifications	Price
GJ6A881MX	1	STF TYPE - 030201 GY1* -124085**
GK3J881MX	1	STF TYPE STJ TYPE 030201 - GY1124085-*

» 881H3

COVER NO.4,SIDE-F.SEAT

Part Number	Qty.	Specifications	Price
GJ6A881HX	1	STA TYPE STB TYPE STC TYPE STE TYPE STH TYPE
GK3J881HX	1	STF TYPE STJ TYPE

» 881H9

HARNESS(L),SEAT-FRONT

Part Number	Qty.	Specifications	Price
GJ6V881H4	1	STC TYPE STE TYPE	€ 29,92
GK3J881H9	1	STF TYPE STJ TYPE	€ 122,67

» 881K8

COVER NO.3,LWR-F.SEAT

Part Number	Qty.	Specifications	Price
GJ6A881K8	1	STA TYPE STB TYPE STC TYPE STE TYPE STH TYPE
GK3J881K8	1	STF TYPE STJ TYPE

» 88215C

ARM

Part Number	Qty.	Specifications	Price
GJ6E88682	1	STB TYPE STC TYPE STE TYPE STF TYPE STH TYPE STJ TYPE	€ 13,50

» 88225A

BAND

Part Number	Qty.	Specifications	Price
139488225	4	ILLUST. NO.4 W/CURTAIN & SIDE AIR BAG,W/O CUT SYS. W/CURTAIN & SIDE AIR BAG, W/CUT SYS. - 030201 GY1* -124085**	€ 2,10
GJ6E88225	8	ILLUST. NO.3 W/CURTAIN & SIDE AIR BAG,W/O CUT SYS. W/CURTAIN & SIDE AIR BAG, W/CUT SYS. (W/CURTAIN & SIDE AIR BAG, W/CUT SYS.>STE TYPE) 030201 -
GJ6G88073	2	ILLUST. NO.1 (STA TYPE>W/CURTAIN & SIDE AIR BAG,W/O CUT SYS.) (STA TYPE>W/CURTAIN & SIDE AIR BAG, W/CUT SYS.) (STB TYPE>W/CURTAIN & SIDE AIR BAG, W/CUT SYS.) STC TYPE STE TYPE STF TYPE STH TYPE - 030601	€ 5,33
H38088225	5	ILLUST. NO.2 W/CURTAIN & SIDE AIR BAG,W/O CUT SYS. W/CURTAIN & SIDE AIR BAG, W/CUT SYS. 030201 - GY1124085-*	€ 2,03

» 88292A

SHAFT,KNUCKLE

Part Number	Qty.	Specifications	Price
GJ6E88292	1	STB TYPE STC TYPE STE TYPE STF TYPE STH TYPE STJ TYPE	€ 11,55

» 88491

SPRING NO.1

Part Number	Qty.	Specifications	Price
GJ6A88134	8		€ 3,81

» 88492

SPRING NO.2

Part Number	Qty.	Specifications	Price
GJ6A88135	4	STA TYPE	€ 4,18

» 88585A

CLIP

Part Number	Qty.	Specifications	Price
D26888585	2	STB TYPE STC TYPE STE TYPE STH TYPE	€ 0,79

» 88596

COVER(L),LEVER

Part Number	Qty.	Specifications	Price
GJ6A884E5	1	STA TYPE STB TYPE STC TYPE STE TYPE

» 88607P

SPRING

Part Number	Qty.	Specifications	Price
GJ6E88015	1	STB TYPE STC TYPE STE TYPE STF TYPE STH TYPE STJ TYPE	€ 5,09

» 88608A

RING,RETAINING-FRT SEAT

Part Number	Qty.	Specifications	Price
GJ6A88098	1	STA TYPE STB TYPE STC TYPE STE TYPE	€ 1,00

» 8861X

ADJUSTER UNIT(L),FRT SEAT

Part Number	Qty.	Specifications	Price
GJ6A88H50	1	AN (GJ6A-88-H50A) STA TYPE STB TYPE STC TYPE STE TYPE	€ 298,20

» 88646

BRACKET(L),FLOOR SIDE

Part Number	Qty.	Specifications	Price
GJ6E88646	2	STB TYPE STC TYPE STE TYPE STF TYPE STH TYPE STJ TYPE	€ 3,24

» 88651A

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
G21188651	12	(STA TYPE>W/CURTAIN & SIDE AIR BAG,W/O CUT SYS.) (STA TYPE>W/CURTAIN & SIDE AIR BAG, W/CUT SYS.) STB TYPE STC TYPE STE TYPE STH TYPE)	€ 0,47

» 88688

CLIP

Part Number	Qty.	Specifications	Price
GF0F88126	9	(STA TYPE>W/CURTAIN & SIDE AIR BAG,W/O CUT SYS.) (STA TYPE>W/CURTAIN & SIDE AIR BAG, W/CUT SYS.) (STB TYPE>W/CURTAIN & SIDE AIR BAG, W/CUT SYS.) STC TYPE STE TYPE STH TYPE	€ 1,63

» 88714

SPRING

Part Number	Qty.	Specifications	Price
GJ6E887G3	1	STB TYPE STC TYPE STE TYPE STF TYPE STH TYPE STJ TYPE	€ 3,46

» 88857

LEVER(L),LIFTER

Part Number	Qty.	Specifications	Price
GJ6A88857	1	STA TYPE STB TYPE STC TYPE STE TYPE

» 88953

PLATE,SUPPORT

Part Number	Qty.	Specifications	Price
GJ6E88953	1	STB TYPE STC TYPE STE TYPE STF TYPE STH TYPE STJ TYPE	€ 6,98

» 88959

HARNESS,FRT SEAT

Part Number	Qty.	Specifications	Price
GJ6E88034	2	W/CURTAIN & SIDE AIR BAG,W/O CUT SYS. W/CURTAIN & SIDE AIR BAG, W/CUT SYS. - 030401 GY1* -130830**	€ 37,98
GJ6E88034B	2	W/CURTAIN & SIDE AIR BAG,W/O CUT SYS. W/CURTAIN & SIDE AIR BAG, W/CUT SYS. 030401 - 030601 GY1130830-137242*
GJ6E88034C	2	W/CURTAIN & SIDE AIR BAG,W/O CUT SYS. W/CURTAIN & SIDE AIR BAG, W/CUT SYS. 030601 - GY1137242-*	€ 37,98

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997200616	1		€ 1,41

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997200816	1		€ 1,22

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YA021079	1		€ 1,69

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860512B	1		€ 0,99

» 99576

RING,STOP-'E'

Part Number	Qty.	Specifications	Price
995760900	1		€ 0,44

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997561020	1		€ 3,44

Front Seats(gasoline)(diesel)(w/o On-board Diagnosis)
