Mazda MAZDA 6 WAGON GY 2002-06 Mazda Floor Attachments 01/04 (W/FRT MUD FLAP:STD) (W/FRT:STD & RR MUD FLAP) (W/O MUD FLAP) 02/04 (W/FRT MUD FLAP:LARGE) (W/FRT:LARGE & RR MUD FLAP) 03/04 (2WD) 04/04 (4WD)

Mazda parts catalog

Parts > MAZDA 6 WAGON > 2002-06 > Body Exterior Trim > Floor Attachments

Search by part number:

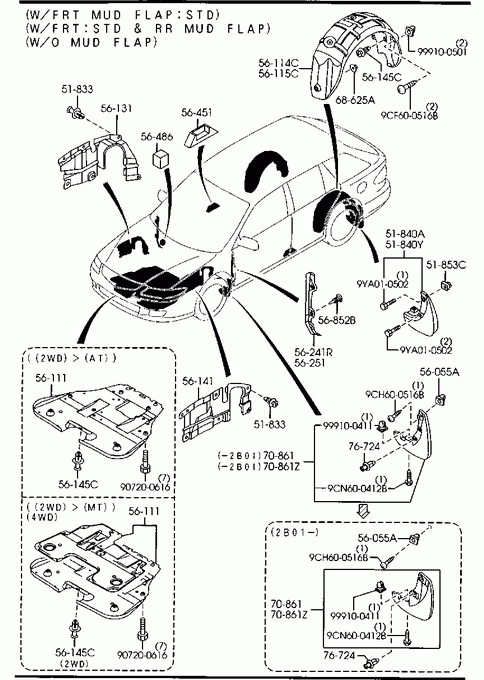

Floor Attachments

01/04 (W/FRT MUD FLAP:STD) (W/FRT:STD & RR MUD FLAP) (W/O MUD FLAP)
02/04 (W/FRT MUD FLAP:LARGE) (W/FRT:LARGE & RR MUD FLAP)
03/04 (2WD)
04/04 (4WD)

» 51833

RIVET,SPLASH SHIELD

Part Number	Qty.	Specifications	Price
B09251833	12		€ 1,54

» 51840A

FLAP(R),REAR

Part Number	Qty.	Specifications	Price
GJ5A51870	1	W/FRT:STD & RR MUD FLAP W/FRT:LARGE & RR MUD FLAP	€ 46,48

» 51840Y

FLAP(L),REAR

Part Number	Qty.	Specifications	Price
GJ5A51880	1	W/FRT:STD & RR MUD FLAP W/FRT:LARGE & RR MUD FLAP	€ 46,48

» 51853C

NUT,CLIP

Part Number	Qty.	Specifications	Price
B09251861	6	W/FRT:STD & RR MUD FLAP W/FRT:LARGE & RR MUD FLAP	€ 2,83

» 56055A

GROMMET

Part Number	Qty.	Specifications	Price
GJ6E51832A	2		€ 0,91

» 56111

COVER,UNDER

Part Number	Qty.	Specifications	Price
G21D56110A	1	4WD - 021101 GY1* -114782**
G21D56110C	1	AN (G21D-56-110D) 4WD 021101 - 031001 GY1114782-153690*
G21D56110E	1	4WD 031001 - 050201 GY1153690-206550*	€ 204,99
GJ6A56110A	1	(2WD>MANUAL TRANSMISSION) - 021101 GY1* -114782**	€ 195,91
GJ6A56110C	1	AN (GJ6A-56-110D) (2WD>MANUAL TRANSMISSION) 021101 - 031001 GY1114782-153690*	€ 188,30
GJ6A56110E	1	(2WD>MANUAL TRANSMISSION) 031001 - 050201 GY1153690-206550*	€ 188,30
GJ6A56111	1	(2WD>AUTOMATIC TRANSMISSION) - 021101 GY1* -114782**
GJ6A56111B	1	AN (GJ6A-56-111C) (2WD>AUTOMATIC TRANSMISSION) 021101 - 031001 GY1114782-153690*
GJ6A56111D	1	(2WD>AUTOMATIC TRANSMISSION) 031001 - 050201 GY1153690-206550*	€ 63,16
GP9A56110A	1	(2WD>MANUAL TRANSMISSION) 050201 - GY1206550-*	€ 195,91
GP9A56111A	1	(2WD>AUTOMATIC TRANSMISSION) 050201 - GY1206550-*	€ 59,89
GR4H56110	1	4WD 050201 - GY1206550-*	€ 213,27

» 56114C

GUARD(R),MUD-REAR

Part Number	Qty.	Specifications	Price
GJ6A561H1E	1	AN (GJ6A-56-1H1F) - 030109 GY1* -121602**	€ 66,99
GJ6A561H1F	1	AN (GJ6A-56-1H1G) 030109 - GY1121602-*	€ 66,99

» 56115C

GUARD(L),MUD-REAR

Part Number	Qty.	Specifications	Price
GJ6A561J1E	1	AN (GJ6A-56-1J1F) - 040513 GY1* -176618**	€ 66,99
GJ6A561J1F	1	AN (GJ6A-56-1J1G) 040513 - GY1176618-*	€ 66,99

» 56131

SHIELD(R),SPLASH

Part Number	Qty.	Specifications	Price
GJ6A56341B	1	AN (GJ6A-56-341C) - 031001 GY1* -153690**	€ 21,51
GJ6A56341D	1	031001 - GY1153690-*	€ 22,38

» 56141

SHIELD(L),SPLASH

Part Number	Qty.	Specifications	Price
GJ6A56342B	1	AN (GJ6A-56-342C) HALOGEN H.LAMP,W/O CLEANER HALOGEN H.LAMP,W/CLEANER - 031001 GY1* -153690**	€ 16,78
GJ6A56342D	1	AN (GJ6A-56-342E) HALOGEN H.LAMP,W/O CLEANER DIESEL 031001 - 040901 GY1153690-190084*	€ 16,78
GJ6A56342E	1	HALOGEN H.LAMP,W/O CLEANER DIESEL 040901 - GY1190084-*	€ 17,46
GJ6E56342C	1	AN (GJ6E-56-342D) DISCHARGE H.LAMP,W/CLEANER - 031001 GY1* -153690**	€ 21,97
GJ6E56342E	1	AN (GJ6E-56-342F) HALOGEN H.LAMP,W/CLEANER DIESEL 031001 - 040901 GY1153690-190084*	€ 21,97
GJ6E56342F	1	HALOGEN H.LAMP,W/CLEANER DIESEL 040901 - GY1190084-*	€ 22,86

» 56145C

CLIP,MUD GUARD

Part Number	Qty.	Specifications	Price
BC1D56145	7	2WD	€ 0,64

» 56241R

PLATE(R),SEAL-F.FENDER

Part Number	Qty.	Specifications	Price
GJ6A56391B	1	AN (GJ6A-56-391C) - 031001 GY1* -153690**	€ 12,53
GJ6A56391D	1	031001 - GY1153690-*	€ 13,04

» 56251

PLATE(L),SEAL-F.FENDER

Part Number	Qty.	Specifications	Price
GJ6A56396B	1	AN (GJ6A-56-396C) - 031001 GY1* -153690**	€ 15,03
GJ6A56396D	1	031001 - GY1153690-*	€ 15,64

» 56451

INSULATOR

Part Number	Qty.	Specifications	Price
GJ6A56411A	2	AN (GJ6A-56-411B) - 031201 GY1* -161270**
GJ6A56411B	2	031201 - GY1161270-*	€ 15,23

» 56486

INSULATOR

Part Number	Qty.	Specifications	Price
GJ6A56486	2

» 56852B

FASTENER

Part Number	Qty.	Specifications	Price
GE4T56399	4		€ 0,96

» 68625A

NUT,CAP

Part Number	Qty.	Specifications	Price
B00156375	6		€ 1,74

» 70861

FLAP(R),FRONT

Part Number	Qty.	Specifications	Price
GJ6A51840A	1	W/FRT MUD FLAP:STD W/FRT:STD & RR MUD FLAP W/O MUD FLAP - 021101 GY1* -114782**	€ 14,44
GJ6R51840	1	W/FRT MUD FLAP:STD W/FRT:STD & RR MUD FLAP W/O MUD FLAP 021101 - GY1114782-*	€ 14,45

» 70861Z

FLAP(L),FRONT

Part Number	Qty.	Specifications	Price
GJ6A51850A	1	W/FRT MUD FLAP:STD W/FRT:STD & RR MUD FLAP W/O MUD FLAP - 021101 GY1* -114782**	€ 14,44
GJ6R51850	1	W/FRT MUD FLAP:STD W/FRT:STD & RR MUD FLAP W/O MUD FLAP 021101 - GY1114782-*	€ 14,45

» 76724

RIVET

Part Number	Qty.	Specifications	Price
B09251833	4		€ 1,54

» 90720

SCREW

Part Number	Qty.	Specifications	Price
9CF600516B	1		€ 1,64

» 90720

SCREW

Part Number	Qty.	Specifications	Price
9CH600516B	1		€ 1,90

» 90730

SCREW & WASHER

Part Number	Qty.	Specifications	Price
907200616	1		€ 1,13

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
9CN600412B	1		€ 1,51

» 99601

BOLT

Part Number	Qty.	Specifications	Price
9YA010502	1		€ 2,63

» 99910

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
999100411	1		€ 2,03

» 99910

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
999100501	1		€ 1,33
