Mazda MAZDA 6 WAGON GY 2002-06 Mazda Fender & Wheel Apron Panels 01/02 (W/FRT MUD FLAP:LARGE) (W/FRT:LARGE & RR MUD FLAP) 02/02 (W/FRT MUD FLAP:STD) (W/FRT:STD & RR MUD FLAP) (W/O MUD FLAP)

Mazda parts catalog

Parts > MAZDA 6 WAGON > 2002-06 > Body Exterior Trim > Fender & Wheel Apron Panels

Search by part number:

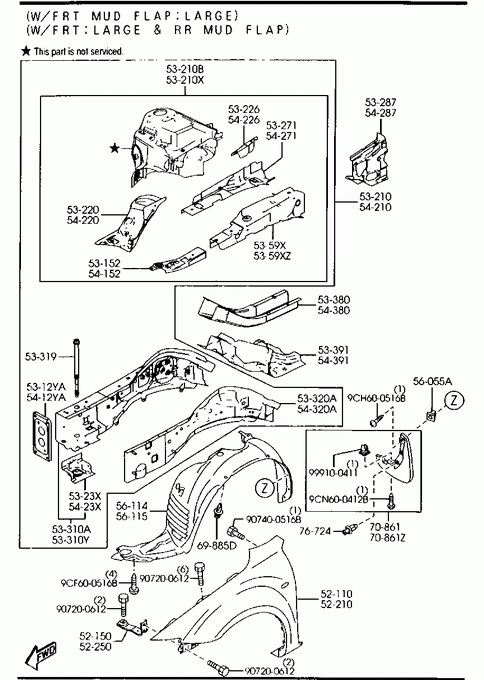

Fender & Wheel Apron Panels

01/02 (W/FRT MUD FLAP:LARGE) (W/FRT:LARGE & RR MUD FLAP)
02/02 (W/FRT MUD FLAP:STD) (W/FRT:STD & RR MUD FLAP) (W/O MUD FLAP)

» 52110

PANEL(R),FENDER-FRT.

Part Number	Qty.	Specifications	Price
GJ6A52111D	1	AN (GJ6A-52-111E) - 050221 GY1* -208940**	€ 136,60
GJ6A52111E	1	050221 - GY1208940-*	€ 142,12

» 52150

STAY(R),FENDER

Part Number	Qty.	Specifications	Price
GJ6A52140D	1		€ 6,70

» 52210

PANEL(L),FENDER-FRT.

Part Number	Qty.	Specifications	Price
GJ6A52211D	1	AN (GJ6A-52-211E) - 050221 GY1* -208940**	€ 136,60
GJ6A52211E	1	050221 - GY1208940-*	€ 142,12

» 52250

STAY(L),FENDER

Part Number	Qty.	Specifications	Price
GJ6A52240C	1		€ 6,70

» 5312YA

BRKT(R),F.BUMPER-SHROUD

Part Number	Qty.	Specifications	Price
GJ6A5312Y	1		€ 11,90

» 53152

REINF(R),SHROUD-UPPER

Part Number	Qty.	Specifications	Price
GJ6A5315XA	1		€ 24,92

» 53210

PANEL(R),APRON & FRAME

Part Number	Qty.	Specifications	Price
GJYA5320Y	1	AN (GJYA-53-20YA) - 041201 GY1* -200759**	€ 362,68
GJYA5320YA	1	A (GJYA-53-20YB) 041201 - 041206 GY1200759-201247*
GJYA5320YB	1	041206 - 050301 GY1201247-209972*
GJYA5320YD	1	CG (GJYA-53-20YE) 050301 - GY1209972-*	€ 369,93

» 53210B

PANEL(R),WHEEL APRON

Part Number	Qty.	Specifications	Price
GJ6A53210E	1	AN (GJ6A-53-210F) - 040101 GY1* -164682**	€ 176,70
GJ6A53210F	1	AN (GJ6A-53-210G) 040101 - 040501 GY1164682-175795*	€ 176,70
GJ6A53210G	1	AN (GJ6A-53-210H) 040501 - 040825 GY1175795-189438*
GJ6A53210H	1	AN (GJ6A-53-210J) 040825 - 041201 GY1189438-200759*
GJ6A53210J	1	A (GJ6A-53-210K) 041201 - 041206 GY1200759-201247*
GJ6A53210K	1	041206 - 050301 GY1201247-209972*	€ 176,70
GJ6A53210M	1	AN (GJ6A-53-210N) 050301 - GY1209972-*	€ 183,83

» 53210X

PANEL(L),WHEEL APRON

Part Number	Qty.	Specifications	Price
GJ6A54210E	1	AN (GJ6A-54-210F) - 040101 GY1* -164682**	€ 176,70
GJ6A54210F	1	AN (GJ6A-54-210G) 040101 - GY1164682-*	€ 176,70

» 53220

PANEL(R),WHEEL APRON-FRT

Part Number	Qty.	Specifications	Price
GJYA53210	1	AN (GJYA-53-210A) - 040501 GY1* -175795**	€ 44,38
GJYA53210A	1	AN (GJYA-53-210B) 040501 - GY1175795-*	€ 44,38

» 53226

REINF.(R),WHL APRON-REAR

Part Number	Qty.	Specifications	Price
GJ6A53227	1		€ 8,26

» 5323X

REINF.(R),SUSPENSION TOWER

Part Number	Qty.	Specifications	Price
GJ6A533JZB	1	- 041201 GY1* -200759**	€ 15,89
GP9A533JZA	1	041201 - GY1200759-*	€ 15,18

» 53271

REINF.(RR/R),APRON-LOWER

Part Number	Qty.	Specifications	Price
GJ6A53271	1		€ 33,30

» 53287

REINF.(R),COWL SIDE PANEL

Part Number	Qty.	Specifications	Price
GJ6A53283	1		€ 28,53

» 53310A

FRAME(R),SIDE-INNER

Part Number	Qty.	Specifications	Price
GJ6A53310C	1	AN (GJ6A-53-310D) - 030401 GY1* -130830**
GJ6A53310D	1	AN (GJ6A-53-310E) 030401 - 040501 GY1130830-175795*	€ 104,51
GJ6A53310E	1	G (GJ6A-53-310F) 040501 - 041001 GY1175795-193803*	€ 104,51
GJ6A53310F	1	AN (GJ6A-53-310G) 041001 - 041201 GY1193803-200759*	€ 104,51
GJ6A53310G	1	041201 - GY1200759-*	€ 108,73

» 53310Y

FRAME(L),SIDE-INNER

Part Number	Qty.	Specifications	Price
GJ6A54310D	1	AN (GJ6A-54-310E) - 030401 GY1* -130830**	€ 104,51
GJ6A54310E	1	AN (GJ6A-54-310F) 030401 - 040501 GY1130830-175795*	€ 104,51
GJ6A54310F	1	AN (GJ6A-54-310G) 040501 - 041201 GY1175795-200759*	€ 104,51
GJ6A54310G	1	041201 - GY1200759-*	€ 108,73

» 53319

BOLT,MOUNTING

Part Number	Qty.	Specifications	Price
GJ6A53317	2	AN (GJ6A-53-317A)	€ 18,80

» 53320A

FRAME(R),FRONT-OUTER

Part Number	Qty.	Specifications	Price
GJ6A53320A	1	G (GJ6A-53-320B) - 030901 GY1* -149530**	€ 74,52
GJ6A53320B	1	AN (GJ6A-53-320C) 030901 - 041201 GY1149530-200759*	€ 74,52
GJ6A53320C	1	041201 - GY1200759-*	€ 77,53

» 53380

REINFORCEMENT(R)

Part Number	Qty.	Specifications	Price
GJ6A53391	1	AN (GJ6A-53-391A)

» 53391

BOX(R),TORQUE

Part Number	Qty.	Specifications	Price
GJ6A53381A	1		€ 37,24

» 5359X

REINF.(R),WHEEL APRON

Part Number	Qty.	Specifications	Price
GJ6A53260	1		€ 31,98

» 5359XZ

REINF.(L),WHEEL APRON

Part Number	Qty.	Specifications	Price
GJ6A54260	1		€ 31,98

» 5412YA

BRKT(L),F.BUMPER-SHROUD

Part Number	Qty.	Specifications	Price
GJ6A5412Y	1		€ 11,90

» 54152

REINF(L),SHROUD-UPPER

Part Number	Qty.	Specifications	Price
GJ6A5415XA	1		€ 24,92

» 54210

PANEL(L),APRON & FRAME

Part Number	Qty.	Specifications	Price
GJYA5420Y	1	AN (GJYA-54-20YA) - 041201 GY1* -200759**	€ 362,68
GJYA5420YA	1	CG (GJYA-54-20YB) 041201 - GY1200759-*	€ 319,66

» 54220

PANEL(L),WHEEL APRON-FRT

Part Number	Qty.	Specifications	Price
GJ6A54220C	1		€ 61,08

» 54226

REINF.(L),APRON-REAR

Part Number	Qty.	Specifications	Price
GJ6A54227	1		€ 8,26

» 5423X

REINF.(L),SUSPENSION TOWER

Part Number	Qty.	Specifications	Price
GJ6A533JZB	1	- 041201 GY1* -200759**	€ 15,89
GP9A533JZA	1	041201 - GY1200759-*	€ 15,18

» 54271

REINF.(RR/L),APRON-LOWER

Part Number	Qty.	Specifications	Price
GJ6A54271	1		€ 33,30

» 54287

REINF.(L),COWL SIDE PANEL

Part Number	Qty.	Specifications	Price
GJ6A54283	1		€ 28,53

» 54320A

FRAME(L),FRONT-OUTER

Part Number	Qty.	Specifications	Price
GJ6A54320A	1	AN (GJ6A-54-320B) - 041201 GY1* -200759**	€ 74,52
GJ6A54320B	1	041201 - GY1200759-*	€ 77,53

» 54380

FRAME(L),FRONT-REAR

Part Number	Qty.	Specifications	Price
GJ6A54391	1	AN (GJ6A-54-391A)

» 54391

BOX(L),TORQUE

Part Number	Qty.	Specifications	Price
GJ6A54381A	1		€ 37,24

» 56055A

GROMMET

Part Number	Qty.	Specifications	Price
GJ6E51832A	2		€ 0,91

» 56114

GUARD(R),MUD

Part Number	Qty.	Specifications	Price
GJ6A56130D	1	AN (GJ6A-56-130E) - 050301 GY1* -209972**	€ 49,23
GJ6A56130J	1	AN (GJ6A-56-130K) 050301 - GY1209972-*	€ 49,23

» 56115

GUARD(L),MUD

Part Number	Qty.	Specifications	Price
GJ6A56140D	1	AN (GJ6A-56-140E) - 050301 GY1* -209972**	€ 49,23
GJ6A56140J	1	AN (GJ6A-56-140K) 050301 - GY1209972-*	€ 49,23

» 69885D

FASTENER

Part Number	Qty.	Specifications	Price
NA0156145	24		€ 1,90

» 70861

FLAP(R),FRONT

Part Number	Qty.	Specifications	Price
GJ6A51840A	1	W/FRT MUD FLAP:STD W/FRT:STD & RR MUD FLAP W/O MUD FLAP - 021101 GY1* -114782**	€ 14,44
GJ6R51840	1	W/FRT MUD FLAP:STD W/FRT:STD & RR MUD FLAP W/O MUD FLAP 021101 - GY1114782-*	€ 14,45

» 70861Z

FLAP(L),FRONT

Part Number	Qty.	Specifications	Price
GJ6A51850A	1	W/FRT MUD FLAP:STD W/FRT:STD & RR MUD FLAP W/O MUD FLAP - 021101 GY1* -114782**	€ 14,44
GJ6R51850	1	W/FRT MUD FLAP:STD W/FRT:STD & RR MUD FLAP W/O MUD FLAP 021101 - GY1114782-*	€ 14,45

» 76724

RIVET

Part Number	Qty.	Specifications	Price
B09251833	4		€ 1,54

» 90720

SCREW

Part Number	Qty.	Specifications	Price
9CF600516B	1		€ 1,64

» 90720

SCREW

Part Number	Qty.	Specifications	Price
9CH600516B	1		€ 1,90

» 90730

SCREW & WASHER

Part Number	Qty.	Specifications	Price
907200612	1		€ 1,04

» 90740

SCREW & WASHER,FLANGE

Part Number	Qty.	Specifications	Price
907400516B	1		€ 0,64

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
9CN600412B	1		€ 1,51

» 99910

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
999100411	1		€ 2,03
