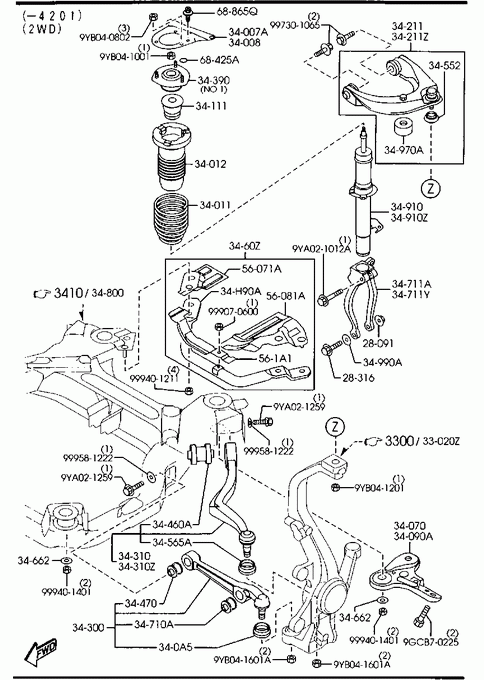

Front Suspension Mechanisms
-
» 28091 NUT Part Number Qty. Specifications Price H26628091 2 € 4,09 » 28316 BOLT'C',LINK Part Number Qty. Specifications Price H26628316 2 € 6,05 » 34007A STIFFENER(R) Part Number Qty. Specifications Price GJ6A34050D 1 - 040101
GY1*** -164682€ 5,54 GJ6A34050E 1 AN (GJ6A-34-050F)
040101 -
GY1***164682-€ 5,54 » 34008 STIFFENER(L) Part Number Qty. Specifications Price GJ6A34060D 1 - 040101
GY1*** -164682€ 5,54 GJ6A34060E 1 AN (GJ6A-34-060F)
040101 -
GY1***164682-€ 5,54 » 34011 SPRING,COIL-FRONT Part Number Qty. Specifications Price GJ6A34011D 1 AN (GJ6A-34-011E)
FOR RIGHT SIDE
1800
(2000>2WD>GASOLINE)
- 020610
GY1*** -100124GJ6A34011E 1 AN (GJ6A-34-011G)
FOR RIGHT SIDE
1800
(2000>2WD>GASOLINE)
020610 - 031001
GY1***100124-153690€ 94,51 GJ6A34011G 1 FOR RIGHT SIDE
1800
(2000>2WD>GASOLINE)
031001 - 040201
GY1***153690-167620€ 98,33 GJ6A34011H 1 FOR RIGHT SIDE
1800
(2000>2WD>GASOLINE)
040201 -
GY1***167620-€ 98,33 GJ6G34011C 1 AN (GJ6G-34-011D)
FOR LEFT SIDE
(2300>2WD)
- 020614
GY1*** -100179€ 94,51 GJ6G34011D 1 AN (GJ6G-34-011F)
FOR LEFT SIDE
(2300>2WD)
020614 - 031001
GY1***100179-153690GJ6G34011F 1 FOR LEFT SIDE
(2300>2WD)
031001 - 040201
GY1***153690-167620€ 98,33 GJ6G34011G 1 FOR LEFT SIDE
(2300>2WD)
040201 -
GY1***167620-€ 101,91 GJ6H34011C 1 AN (GJ6H-34-011D)
FOR LEFT SIDE
1800
(2000>2WD>GASOLINE)
- 020611
GY1*** -100134€ 94,51 GJ6H34011D 1 AN (GJ6H-34-011F)
FOR LEFT SIDE
1800
(2000>2WD>GASOLINE)
020611 - 031001
GY1***100134-153690€ 94,51 GJ6H34011F 1 FOR LEFT SIDE
1800
(2000>2WD>GASOLINE)
031001 - 040201
GY1***153690-167620€ 98,33 GJ6H34011G 1 FOR LEFT SIDE
1800
(2000>2WD>GASOLINE)
040201 -
GY1***167620-€ 98,33 GJ6M34011A 1 AN (GJ6M-34-011C)
FOR LEFT SIDE
(2000>2WD>DIESEL)
(2300>4WD)
- 031001
GY1*** -153690€ 90,51 GJ6M34011C 1 FOR LEFT SIDE
(2000>2WD>DIESEL)
(2300>4WD)
031001 - 040201
GY1***153690-167620€ 94,17 GJ6M34011D 1 FOR LEFT SIDE
(2000>2WD>DIESEL)
(2300>4WD)
040201 -
GY1***167620-€ 94,17 GJ6W34011C 1 AN (GJ6W-34-011E)
FOR RIGHT SIDE
(2000>2WD>DIESEL)
(2300>4WD)
- 031001
GY1*** -153690€ 90,51 GJ6W34011E 1 FOR RIGHT SIDE
(2000>2WD>DIESEL)
(2300>4WD)
031001 - 040201
GY1***153690-167620€ 94,17 GJ6W34011F 1 FOR RIGHT SIDE
(2000>2WD>DIESEL)
(2300>4WD)
040201 -
GY1***167620-€ 94,17 » 34012 SHEET,RUBBER Part Number Qty. Specifications Price GJ6A34012 2 - 040201
GY1*** -167620€ 17,10 GJ6E34012 2 040201 -
GY1***167620-€ 15,20 » 34070 BRACKET(R),FRT SUS. Part Number Qty. Specifications Price GJ6A34611A 1 € 17,51 » 34090A BRACKET(L),FRT SUS. Part Number Qty. Specifications Price GJ6A34616A 1 € 17,51 » 340A5 BOOT,DUST Part Number Qty. Specifications Price GJ6A34541 2 AN (GJ6A-34-541A)
- 050401
GY1*** -212776€ 20,66 GJ6A34541A 2 050401 -
GY1***212776-€ 21,49 » 34111 BUMPER,BOUND Part Number Qty. Specifications Price GJ6A34111C 2 € 13,82 » 34211 ARM(R),UPPER Part Number Qty. Specifications Price GJ6A34200B 1 - 050314
GY1*** -211003€ 155,73 GP9A34200A 1 050314 -
GY1***211003-€ 138,82 » 34211Z ARM(L),UPPER Part Number Qty. Specifications Price GJ6A34250B 1 - 050314
GY1*** -211003€ 155,73 GP9A34250A 1 050314 -
GY1***211003-€ 138,82 » 34300 ARM,LOWER Part Number Qty. Specifications Price GJ6A34300B 2 AN (GJ6A-34-300C)
- 040601
GY1*** -178708€ 218,37 GJ6A34300C 2 AN (GJ6A-34-300D)
040601 - 050401
GY1***178708-212776€ 218,37 GJ6A34300D 2 06MY
050401 -
GY1***212776-€ 218,37 » 34310 ARM(R),LOWER Part Number Qty. Specifications Price GJ6A34J00B 1 AN (GJ6A-34-J00C)
- 021201
GY1*** -117782€ 212,20 GJ6A34J00C 1 AN (GJ6A-34-J00D)
021201 - 050401
GY1***117782-212776€ 212,20 GJ6A34J00D 1 050401 -
GY1***212776-€ 216,44 » 34310Z ARM(L),LOWER Part Number Qty. Specifications Price GJ6A34J50B 1 AN (GJ6A-34-J50C)
- 021201
GY1*** -117782€ 212,20 GJ6A34J50C 1 AN (GJ6A-34-J50D)
021201 - 050401
GY1***117782-212776€ 212,20 GJ6A34J50D 1 050401 -
GY1***212776-€ 216,44 » 34390 RUBBER,MOUNTING Part Number Qty. Specifications Price GJ6A34380B 2 AN (GJ6A-34-380C)
ILLUST. NO.1
- 020801
GY1*** -106408€ 44,90 GJ6A34380C 2 ILLUST. NO.1
020801 - 040201
GY1***106408-167620€ 46,72 GJ6E34380A 2 ILLUST. NO.2
040201 -
GY1***167620-€ 42,17 GJ6E3438YB 2 ILLUST. NO.1
040201 -
GY1***167620-€ 85,25 » 34460A BUSHING,RUBBER-RR Part Number Qty. Specifications Price GJ6A34460A 2 AN (GJ6A-34-460B)
- 021201
GY1*** -117782€ 43,09 GJ6A34460B 2 021201 -
GY1***117782-€ 43,95 » 34470 BUSHING,RUBBER-FRT Part Number Qty. Specifications Price GJ6A34470A 2 AN (GJ6A-34-470B)
- 040601
GY1*** -178708€ 19,71 GJ6A34470B 2 06MY
040601 -
GY1***178708-€ 20,50 » 34552 COVER,BALL JOINT Part Number Qty. Specifications Price GJ6A34552 2 030401 -
GY1***130830-€ 7,10 » 34565A SEAL,DUST Part Number Qty. Specifications Price GJ6A34551 2 AN (GJ6A-34-551A)
030401 - 050401
GY1***130830-212776€ 20,66 GJ6A34551A 2 050401 -
GY1***212776-€ 21,49 » 3460Z MEMBER,TRANSVERSE Part Number Qty. Specifications Price GJ6A34H9XB 1 AN (GJ6A-34-H9XC)
2WD
- 040201
GY1*** -167620€ 52,72 GJ6A34H9XC 1 2WD
040201 -
GY1***167620-€ 54,85 » 34662 WASHER Part Number Qty. Specifications Price GJ6S34096 4 AN (GJ6S-34-096A)
- 041126
GY1*** -200325€ 4,23 GJ6S34096A 4 041126 -
GY1***200325-€ 4,40 » 34710A BUSHING,DAMPER?LOWER Part Number Qty. Specifications Price GJ6A34710A 2 € 17,72 » 34711A FORK(R),DAMPER Part Number Qty. Specifications Price GJ6A34711A 1 € 69,14 » 34711Y FORK(L),DAMPER Part Number Qty. Specifications Price GJ6A34911A 1 € 69,14 » 34910 DAMPER(R),FRONT Part Number Qty. Specifications Price G21D34700D 1 AN (G21D-34-700E)
4WD
- 030304
GY1*** -127916€ 67,73 G21D34700E 1 AN (G21D-34-700F)
4WD
030304 - 030601
GY1***127916-137242G21D34700G 1 4WD
030601 - 040201
GY1***137242-167620G21D34700H 1 4WD
040201 -
GY1***167620-G25S34700C 1 AN (G25S-34-700D)
W/O HEIGHT UP KIT
(2WD>GASOLINE)
030601 - 040101
GY1***137242-164682€ 70,37 G25S34700D 1 W/O HEIGHT UP KIT
(2WD>GASOLINE)
040101 - 040201
GY1***164682-167620€ 72,49 G25S34700E 1 AN (GR1L-34-700)
W/O HEIGHT UP KIT
(2WD>GASOLINE)
040201 - 050127
GY1***167620-206019€ 70,37 GJ6E34700F 1 AN (GJ6E-34-700G)
W/O HEIGHT UP KIT
2WD
- 030301
GY1*** -127788€ 71,43 GJ6E34700G 1 AN (GJ6E-34-700H)
W/O HEIGHT UP KIT
2WD
030301 - 030601
GY1***127788-137242€ 71,43 GJ6F34700 1 AN (GJ6F-34-700A)
W/HEIGHT UP KIT
2WD
- 030301
GY1*** -127788€ 67,73 GJ6F34700A 1 AN (GJ6F-34-700B)
W/HEIGHT UP KIT
2WD
030301 - 030601
GY1***127788-137242€ 67,73 GJ6F34700C 1 A (GJ6F-34-700D)
W/HEIGHT UP KIT
(2WD>GASOLINE)
030801 - 040101
GY1***146118-164682GJ6F34700D 1 W/HEIGHT UP KIT
(2WD>GASOLINE)
040101 - 040201
GY1***164682-167620€ 69,78 GJ6F34700E 1 AN (GJ6F-34-700F)
W/HEIGHT UP KIT
(2WD>GASOLINE)
040201 - 050501
GY1***167620-213076€ 72,69 GJ6F34700F 1 W/HEIGHT UP KIT
(2WD>GASOLINE)
050501 -
GY1***213076-€ 74,89 GJ6W34700 1 AN (GJ6W-34-700A)
(2WD>DIESEL)
030801 - 040101
GY1***146118-164682€ 70,37 GJ6W34700A 1 (2WD>DIESEL)
040101 - 040201
GY1***164682-167620€ 72,49 GJ6W34700B 1 AN (GJ6W-34-700C)
(2WD>DIESEL)
040201 - 041101
GY1***167620-197431GJ6W34700C 1 AN (GR1L-34-700)
(2WD>DIESEL)
041101 - 050127
GY1***197431-206019€ 70,37 GR1L34700 1 (2WD>DIESEL)
050127 -
GY1***206019-€ 83,97 » 34910Z DAMPER(L),FRONT Part Number Qty. Specifications Price G21D34900D 1 AN (G21D-34-900E)
4WD
- 030304
GY1*** -127916G21D34900E 1 AN (G21D-34-900F)
4WD
030304 - 030601
GY1***127916-137242€ 66,90 G21D34900G 1 4WD
030601 - 040201
GY1***137242-167620G21D34900H 1 4WD
040201 -
GY1***167620-G25S34900C 1 AN (G25S-34-900D)
W/O HEIGHT UP KIT
(2WD>GASOLINE)
030601 - 040101
GY1***137242-164682€ 70,37 G25S34900D 1 W/O HEIGHT UP KIT
(2WD>GASOLINE)
040101 - 040201
GY1***164682-167620€ 72,49 G25S34900E 1 AN (GR1L-34-900)
W/O HEIGHT UP KIT
(2WD>GASOLINE)
040201 - 050127
GY1***167620-206019€ 70,37 GJ6E34900F 1 AN (GJ6E-34-900G)
W/O HEIGHT UP KIT
2WD
- 030301
GY1*** -127788€ 71,43 GJ6E34900G 1 AN (GJ6E-34-900H)
W/O HEIGHT UP KIT
2WD
030301 - 030601
GY1***127788-137242€ 71,43 GJ6F34900 1 AN (GJ6F-34-900A)
W/HEIGHT UP KIT
2WD
- 030301
GY1*** -127788GJ6F34900A 1 AN (GJ6F-34-900B)
W/HEIGHT UP KIT
2WD
030301 - 030601
GY1***127788-137242€ 71,43 GJ6F34900C 1 A (GJ6F-34-900D)
W/HEIGHT UP KIT
(2WD>GASOLINE)
030801 - 040101
GY1***146118-164682GJ6F34900D 1 W/HEIGHT UP KIT
(2WD>GASOLINE)
040101 - 040201
GY1***164682-167620€ 73,58 GJ6F34900E 1 AN (GJ6F-34-900F)
W/HEIGHT UP KIT
(2WD>GASOLINE)
040201 - 050501
GY1***167620-213076GJ6F34900F 1 W/HEIGHT UP KIT
(2WD>GASOLINE)
050501 -
GY1***213076-€ 73,58 GJ6W34900 1 AN (GJ6W-34-900A)
(2WD>DIESEL)
030801 - 040101
GY1***146118-164682€ 70,37 GJ6W34900A 1 (2WD>DIESEL)
040101 - 040201
GY1***164682-167620€ 72,49 GJ6W34900B 1 AN (GJ6W-34-900C)
(2WD>DIESEL)
040201 - 041101
GY1***167620-197431GJ6W34900C 1 AN (GR1L-34-900)
(2WD>DIESEL)
041101 - 050127
GY1***197431-206019€ 69,72 GR1L34900 1 (2WD>DIESEL)
050127 -
GY1***206019-€ 83,97 » 34970A DAMPER,DYNAMIC Part Number Qty. Specifications Price GJ6A34970 2 € 14,72 » 34990A DAMPER,DYNAMIC Part Number Qty. Specifications Price GJ6A34990 2 € 16,48 » 34H90A MEMBER,TRANSVERSE Part Number Qty. Specifications Price GJ6A34H90 1 2WD
- 040201
GY1*** -167620€ 32,13 GJ6A34H91B 1 2WD
040201 -
GY1***167620-€ 27,65 » 56071A COVER(R),PACKAGE Part Number Qty. Specifications Price GJ6A56076A 1 AN (GJ6A-56-076B)
2WD
- 040201
GY1*** -167620€ 5,26 GJ6A56076B 1 2WD
040201 -
GY1***167620-€ 4,16 » 56081A COVER(L),PACKAGE Part Number Qty. Specifications Price GJ6A56077 1 AN (GJ6A-56-077A)
2WD
- 040201
GY1*** -167620€ 3,72 GJ6A56077A 1 2WD
040201 -
GY1***167620-€ 3,79 » 561A1 COVER,T/MISSION Part Number Qty. Specifications Price GJ6A561A1A 1 2WD
- 040201
GY1*** -167620€ 4,28 » 68425A COVER,HOLE Part Number Qty. Specifications Price GJ6A57425 2 € 0,83 » 68865Q FASTENER Part Number Qty. Specifications Price GJ2168885B 2 030101 -
GY1***121232-GJ6A68885 2 - 030101
GY1*** -121232€ 1,17 » 90720 SCREW Part Number Qty. Specifications Price 997301065 1 € 3,01 » 90780 BOLT Part Number Qty. Specifications Price 9YA021012A 1 € 2,95 » 90780 BOLT Part Number Qty. Specifications Price 9YA021259 1 € 3,76 » 90901 NUT Part Number Qty. Specifications Price 999070600 1 » 90901 NUT Part Number Qty. Specifications Price 9YB040802 1 € 2,26 » 90901 NUT Part Number Qty. Specifications Price 9YB041001 1 € 3,35 » 90901 NUT Part Number Qty. Specifications Price 9YB041201 1 € 2,83 » 90901 NUT Part Number Qty. Specifications Price 9YB041601A 1 € 6,81 » 90906 NUT,FLANGE Part Number Qty. Specifications Price 999401211 1 € 2,17 » 90906 NUT,FLANGE Part Number Qty. Specifications Price 999401401 1 € 2,45 » 99203 WASHER,PLAIN Part Number Qty. Specifications Price 999581222 1 € 1,89 » 99601 BOLT Part Number Qty. Specifications Price 9GCB70225 1 € 0,69
