Mazda MAZDA 6 WAGON GY 2002-06 Mazda Rear Suspension Mechanisms

Mazda parts catalog

Parts > MAZDA 6 WAGON > 2002-06 > Chassis Axle Suspension,brake & Steering > Rear Suspension Mechanisms(4wd)

Search by part number:

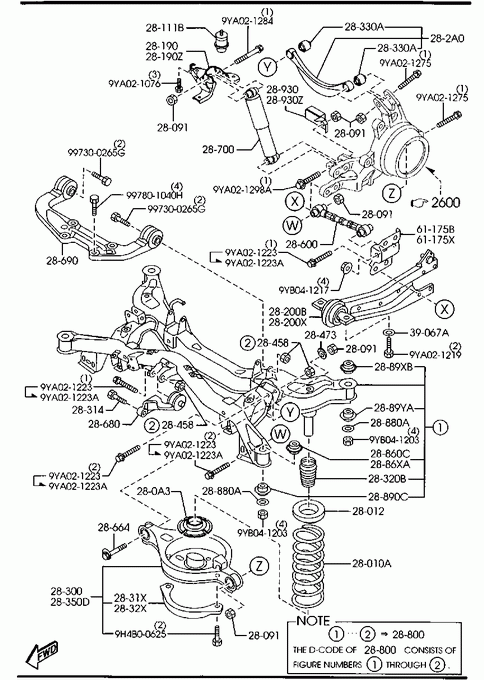

Rear Suspension Mechanisms(4wd)

SPRING,COIL-REAR

Part Number	Qty.	Specifications	Price
GJ5L28011A	2

» 28012

SPRING NO.2,LEAF

Part Number	Qty.	Specifications	Price
GJ6A28012B	2		€ 13,82

» 28091

NUT

Part Number	Qty.	Specifications	Price
H26628091	12		€ 4,09

» 280A3

RUBBER,SPRING SHEET

Part Number	Qty.	Specifications	Price
GJ6A280A3	2		€ 7,07

» 28111B

STOPPER,BUMP

Part Number	Qty.	Specifications	Price
G21B281B0	2	AN (G26A-28-1B0) - 030619 GY1* -140030**	€ 21,74
G26A281B0	2	030619 - GY1140030-*	€ 22,61

» 28190

BRACKET(R),DAMPER

Part Number	Qty.	Specifications	Price
G21D28720A	1	AN (G21D-28-720B) - 041101 GY1* -197431**	€ 58,76
G21D28720B	1	041101 - GY1197431-*	€ 59,94

» 28190Z

BRACKET(L),DAMPER

Part Number	Qty.	Specifications	Price
G21D28730A	1	AN (G21D-28-730B) - 041101 GY1* -197431**
G21D28730B	1	041101 - GY1197431-*

» 28200B

LINK(R),TRAILING

Part Number	Qty.	Specifications	Price
G21D28200D	1	- 020913 GY1* -110120**
G21D28200F	1	020913 - GY1110120-*	€ 272,84

» 28200X

LINK(L),TRAILING

Part Number	Qty.	Specifications	Price
G21D28250D	1	- 020913 GY1* -110120**
G21D28250F	1	020913 - GY1110120-*

» 282A0

ARM,UPPER-REAR

Part Number	Qty.	Specifications	Price
G26A28C10	2	030601 - 040830 GY1137242-189931*	€ 57,50
GJ6A28C10A	2	AN (G26A-28-C10) - 030601 GY1* -137242**	€ 55,26
GP9A28C10	2	040830 - GY1189931-*	€ 49,99

» 28300

ARM(R),LOWER-REAR

Part Number	Qty.	Specifications	Price
G26A28300	1	AN (G26A-28-300A) 030801 - 040201 GY1146118-167620*	€ 143,31
G26A28300A	1	040201 - GY1167620-*	€ 149,10
GJ6A28300B	1	AN (G26A-28-300) - 030801 GY1* -146118**	€ 143,31

» 28314

BOLT'B',LINK

Part Number	Qty.	Specifications	Price
H26034037A	2		€ 4,26

» 2831X

GUARD(R),LOWER ARM

Part Number	Qty.	Specifications	Price
G26A2831X	1	040201 - GY1167620-*	€ 5,61
GJ6A2831XA	1	AN (G26A-28-31X) - 040201 GY1* -167620**	€ 5,99

» 28320B

STOPPER,BUMP

Part Number	Qty.	Specifications	Price
GJ6A281A0A	2		€ 29,14

» 2832X

GUARD(L),LOWER ARM

Part Number	Qty.	Specifications	Price
G26A2832X	1	040201 - GY1167620-*	€ 6,23
GJ6A2832XA	1	AN (G26A-28-32X) - 040201 GY1* -167620**	€ 5,99

» 28330A

BUSHING,RUBBER

Part Number	Qty.	Specifications	Price
GJ6A28450	4	- 040830 GY1* -189931**	€ 10,73
GP9A28450	4	040830 - GY1189931-*

» 28350D

ARM(L),LOWER-REAR

Part Number	Qty.	Specifications	Price
G26A28350	1	AN (G26A-28-350A) 030801 - 040201 GY1146118-167620*	€ 153,09
G26A28350A	1	040201 - GY1167620-*	€ 159,27
GJ6A28350B	1	- 030801 GY1* -146118**	€ 153,09

» 28458

NUT

Part Number	Qty.	Specifications	Price
GJ6A28458	5

» 28473

PLATE,CAM-SUB FRAME

Part Number	Qty.	Specifications	Price
FD1628473	2	AN (FD16-28-473A)	€ 3,07

» 28600

LINK,LATERAL

Part Number	Qty.	Specifications	Price
G21D28500B	2	AN (G21D-28-500C)	€ 77,24

» 28664

BOLT,ADJUST

Part Number	Qty.	Specifications	Price
FD162866ZA	2	AN (FD16-28-66ZB) - 021101 GY1* -114782**	€ 16,47
FD162866ZB	2	021101 - GY1114782-*	€ 17,14

» 28680

RUBBER,DIFF. MTG-FRT

Part Number	Qty.	Specifications	Price
G21D2868XB	1	AN (G21D-28-68XC) - 041110 GY1* -198752**
G21D2868XC	1	041110 - GY1198752-*

» 28690

RUBBER,DIFF. MTG-RR

Part Number	Qty.	Specifications	Price
G21D2869XC	1	AN (G21D-28-69XD) - 041110 GY1* -198752**
G21D2869XD	1	041110 - GY1198752-*

» 28700

DAMPER,REAR

Part Number	Qty.	Specifications	Price
G21J28700A	2	AN (G21J-28-700B) - 030507 GY1* -134248**
G21J28700B	2	030507 - GY1134248-*	€ 314,06

» 28800

FRAME,SUB

Part Number	Qty.	Specifications	Price
G21D2880XF	1	AN (G21D-28-80XG) - 040101 GY1* -164682**
G21D2880XG	1	AN (G21D-28-80XH) 040101 - 041101 GY1164682-197431*
G21D2880XJ	1	AN (G21D-28-80XK) 041101 - GY1197431-*

» 28860C

RUBBER(UP,R),MEMBER MTG.

Part Number	Qty.	Specifications	Price
GJ6A28860A	1		€ 14,57

» 2886XA

RUBBER(UP,L),MEMBER MTG.

Part Number	Qty.	Specifications	Price
GJ6A2886XA	1		€ 14,57

» 28880A

WASHER,STOP

Part Number	Qty.	Specifications	Price
GJ6R28880	4	AN (GJ6R-28-880A) - 041117 GY1* -199456**	€ 4,23
GJ6R28880A	4	041117 - GY1199456-*	€ 4,31

» 28890C

RUBBER(LWR),MEMBER MTG.

Part Number	Qty.	Specifications	Price
GJ6A28890A	2		€ 14,38

» 2889XB

RUBBER(UP),MEMBER MTG.

Part Number	Qty.	Specifications	Price
GJ6A2889XA	2		€ 13,79

» 2889YA

RUBBER(LWR),MEMBER MTG.

Part Number	Qty.	Specifications	Price
GJ6A2889Y	2		€ 17,41

» 28930

DAMPER(R),DYNAMIC

Part Number	Qty.	Specifications	Price
GP9A2865XA	1	041101 - GY1197431-*	€ 25,95

» 28930Z

DAMPER(L),DYNAMIC

Part Number	Qty.	Specifications	Price
GP9A2866XA	1	041101 - GY1197431-*	€ 25,95

» 39067A

WASHER,CORN-MTG. RUBBER

Part Number	Qty.	Specifications	Price
GJ2139067A	4		€ 2,11

» 61175B

BRACKET(R),CONTROL

Part Number	Qty.	Specifications	Price
G21D2825XA	1		€ 21,53

» 61175X

BRACKET(L),CONTROL

Part Number	Qty.	Specifications	Price
G21D2825YA	1

» 90720

SCREW

Part Number	Qty.	Specifications	Price
997300265G	1

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9H4B00625	1		€ 0,70

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YA021076	1		€ 2,86

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YA021219	1		€ 7,79

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YA021223	1		€ 6,38

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YA021223A	1		€ 7,91

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YA021275	1		€ 6,57

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YA021284	1		€ 4,67

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YA021298A	1		€ 5,54

» 90901

NUT

Part Number	Qty.	Specifications	Price
9YB041203	1		€ 3,06

» 90901

NUT

Part Number	Qty.	Specifications	Price
9YB041217	1

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997801040H	1		€ 3,03

Rear Suspension Mechanisms(4wd)
