Mazda MAZDA 6 WAGON GY 2002-06 Mazda Automatic Transmission Governor, Low & Reverse Piston 01/03 02/03 03/03

Mazda parts catalog

Parts > MAZDA 6 WAGON > 2002-06 > Gasoline-engine 4-cylinder Transmission > Automatic Transmission Governor, Low & Reverse Piston(4wd)

Search by part number:

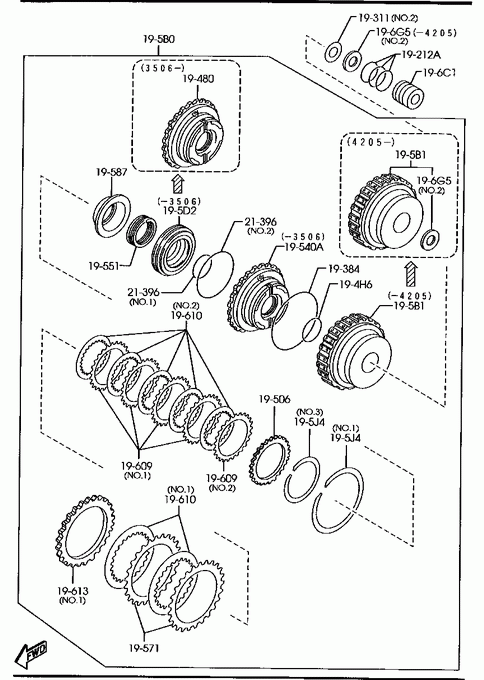

Automatic Transmission Governor, Low & Reverse Piston(4wd)

» 19212A

RING,SEAL

Part Number	Qty.	Specifications	Price
FP0119212	3		€ 5,48

» 19311

RACE,BEARING

Part Number	Qty.	Specifications	Price
FP0119311	1	ILLUST. NO.1
FP0119312	1	ILLUST. NO.2	€ 3,58
FP0119313	1	ILLUST. NO.3
FP0119314	1	ILLUST. NO.4

» 19384

SEAL,PISTON

Part Number	Qty.	Specifications	Price
FP0319384	1		€ 5,44

» 19480

PISTON,CLUTCH

Part Number	Qty.	Specifications	Price
FP0319480	1	030506 - GY1134093-*	€ 48,65

» 194H6

SEAL,LATHE CUT

Part Number	Qty.	Specifications	Price
FP01194H6	1		€ 4,15

» 19506

PLATE,RETAINING

Part Number	Qty.	Specifications	Price
FP01195L1	1	T=4.5MM	€ 19,72
FP01195L5	1	T=3.4MM	€ 28,54
FP01195L6	1	T=3.6MM	€ 28,54
FP01195L7	1	T=3.2MM	€ 28,54
FP01195L8	1	T=3MM	€ 28,54

» 19540A

PISTON,REVERSE

Part Number	Qty.	Specifications	Price
FP01195H0	1	A (FP03-19-480) - 030506 GY1* -134093**	€ 46,76

» 19551

SPRING,PISTON RETAINER

Part Number	Qty.	Specifications	Price
FP0119551	1

» 19571

PLATE,DRIVEN-FRONT

Part Number	Qty.	Specifications	Price
FP0119571	2		€ 8,72

» 19587

PLATE

Part Number	Qty.	Specifications	Price
FP01192A1	1		€ 18,82

» 195B0

CLUTCH,REVERSE

Part Number	Qty.	Specifications	Price
FP01195B0	1	C (FP01-19-5B0A) - 030506 GY1* -134093**
FP01195B0A	1	030506 - GY1134093-*	€ 534,72

» 195B1

DRUM,REVERSE

Part Number	Qty.	Specifications	Price
FP011951Y	1	040205 - GY1167987-*
FP01195B1	1	- 030506 GY1* -134093**	€ 199,28
FP01195B1A	1	A (FP01-19-51Y) 030506 - 040205 GY1134093-167987*	€ 189,14

» 195D2

PISTON,HIGH CLUTCH

Part Number	Qty.	Specifications	Price
FP01195D2	1	A (FP03-19-480) - 030506 GY1* -134093**

» 195J4

RING,SNAP

Part Number	Qty.	Specifications	Price
FP01195J4	1	ILLUST. NO.1	€ 4,10
FP01195J5	1	ILLUST. NO.2
FP01195J6	1	ILLUST. NO.3

» 19609

PLATE,DRIVEN

Part Number	Qty.	Specifications	Price
FP0119609	5	ILLUST. NO.3	€ 7,23
FP01196E1	4	ILLUST. NO.1	€ 7,56
FP01196E2	1	ILLUST. NO.2

» 19610

PLATE,DRIVE

Part Number	Qty.	Specifications	Price
FP0119610	2	ILLUST. NO.1	€ 13,20
FP0119620	5	ILLUST. NO.2	€ 7,24

» 19613

PLATE,RETAINING

Part Number	Qty.	Specifications	Price
FP0119456	1	T=3.6MM ILLUST. NO.1	€ 19,34
FP0119457	1	T=3.8MM ILLUST. NO.1	€ 19,58
FP0119458	1	T=4MM ILLUST. NO.1	€ 19,34
FP0119459	1	T=4.2MM ILLUST. NO.1	€ 19,34
FP0119613	1	T=2.2MM ILLUST. NO.2
FP0119615	1	T=2.4MM ILLUST. NO.2
FP0119616	1	T=2.6MM ILLUST. NO.2
FP0119617	1	T=2.8MM ILLUST. NO.2
FP0119618	1	T=3MM ILLUST. NO.2
FP0119623	1	ILLUST. NO.3
FP0119623A	1	ILLUST. NO.3 030506 - GY1134093-*

» 196C1

RACE,BEARING

Part Number	Qty.	Specifications	Price
FP01196C1	1	T=2MM
FP01196C2	1	T=2.2MM
FP01196C3	1	T=1.4MM
FP01196C4	1	T=1.6MM
FP01196C5	1	T=1.8MM

» 196G5

BEARING,NEEDLE ROLLER

Part Number	Qty.	Specifications	Price
FP01196G5	1	ILLUST. NO.1
FP01196G6	1	ILLUST. NO.2 - 030506 GY1* -134093**	€ 12,85
FP01196G6A	1	A (FP01-19-51Y) ILLUST. NO.2 030506 - GY1134093-*
FP01196G7	1	ILLUST. NO.3

» 21396

SEAL,LATHE CUT

Part Number	Qty.	Specifications	Price
FP0121396	1	ILLUST. NO.1	€ 5,75
FP0121397	1	ILLUST. NO.2	€ 7,09

Automatic Transmission Governor, Low & Reverse Piston(4wd)
